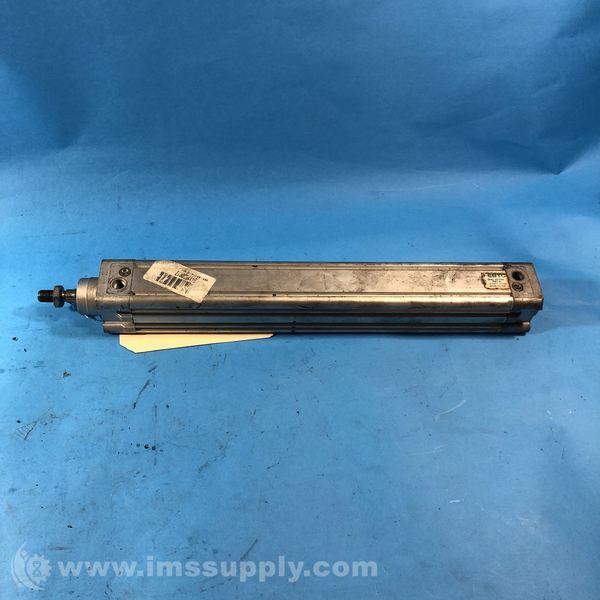

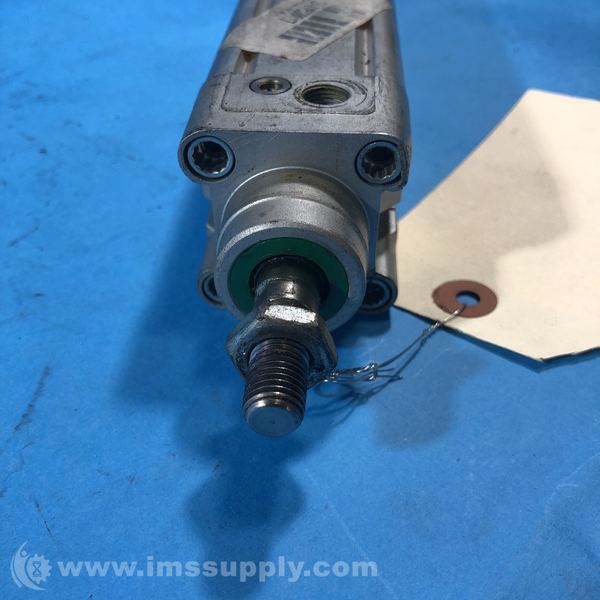

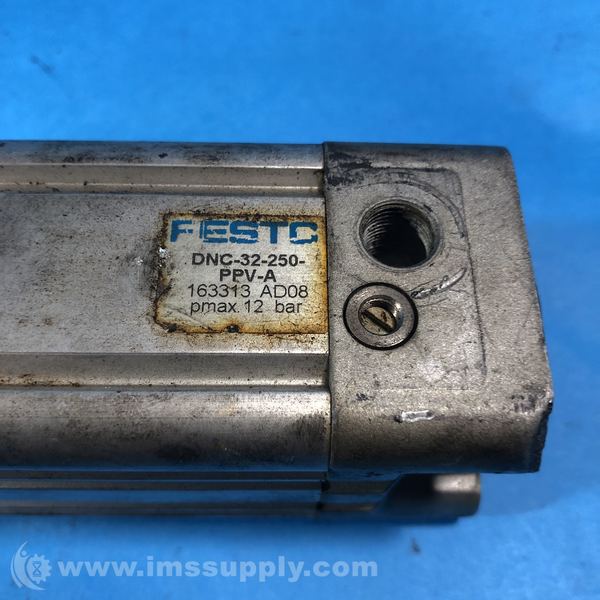

FESTO DNC-32-250-PPV-A PNEUMATIC CYLINDER
Quick Overview
Manufactured By: FESTO
Manufacturer Part Number: DNC-32-250-PPV-A
IMS Product Code: 1927864
Packaging: Sold Individually
Description:
Festo DNC-32-250-PPV-A Pneumatic Cylinder
Double-acting pneumatic cylinder conforming to ISO 15552, with a 32 mm piston diameter and 250 mm stroke. Features pneumatic cushioning adjustable at both ends and proximity sensor compatibility.
Specifications
- Piston diameter: 32 mm
- Stroke: 250 mm
- Cushioning: Pneumatic cushioning, adjustable at both ends
- Position sensing: For proximity sensor
- Mode of operation: Double-acting
- Piston rod type: Single-end piston rod
- Piston rod thread type: Male thread
- Piston rod thread: M10x1.25
- Material cylinder barrel: Wrought aluminium alloy Smooth anodised
- Material seals: TPE-U(PU)
- Material piston rod: High-alloy steel
- Material cover: Die-cast aluminium Coated
- Pneumatic connection: G1/8
- Operating pressure: 0.6 bar ... 12 bar
- Ambient temperature: -20 degrees C ... 80 degrees C
- Corrosion resistance class CRC: 2 - Moderate corrosion stress
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
