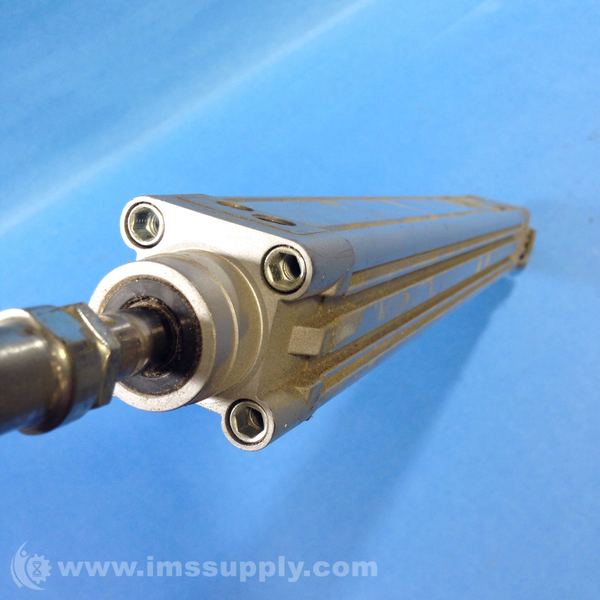

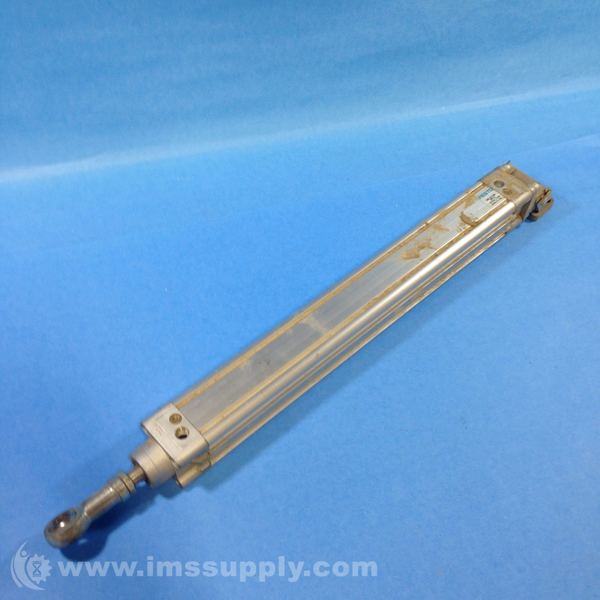

FESTO DNC-32-300-PPV-A ISO CYLINDER
Quick Overview
Manufactured By: FESTO
Manufacturer Part Number: DNC-32-300-PPV-A
IMS Product Code: 1740106
Packaging: Sold Individually
Description:
Festo DNC-32-300-PPV-A ISO Cylinder
ISO standards-based cylinder with 32mm piston diameter and 300mm stroke.
Specifications
- Cylinder Type: ISO cylinder
- Piston Diameter: 32 mm
- Stroke: 300 mm
- Piston Rod Thread: M10x1.25
- Cushioning: Pneumatic cushioning, adjustable at both ends
- Mounting Position: Optional
- Standard: ISO 15552
- Piston-rod End: Male thread
- Mode of Operation: Double-acting
- Operating Medium: Compressed air to ISO 8573-1:2010 [7:4:4]
- Operating Pressure: 0.06MPA to 1.2MPA
- Corrosion Resistance Class: 2 - Moderate
- Theoretical Force at 0.6 mPa (6 bar, 87 psi), Return Stroke: 415N
- Theoretical Force at 0.6 mPa (6 bar, 87 psi), Advance Stroke: 483N
- Material Cover: Die-cast aluminium, Coated
- Material Seals: TPE-U(PU)
- Material Piston Rod: High-alloy steel
- Material Cylinder Barrel: Wrought aluminium alloy, Smooth anodised
- Ambient Temperature: -20°C to 80°C
- Pneumatic Connection: G1/8
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
