FESTO DNC63-25-PPV-A PNEUMATIC CYLINDER
Quick Overview
Manufactured By: FESTO
Manufacturer Part Number: DNC63-25-PPV-A
IMS Product Code: 2150363
Packaging: Sold Individually
Description:

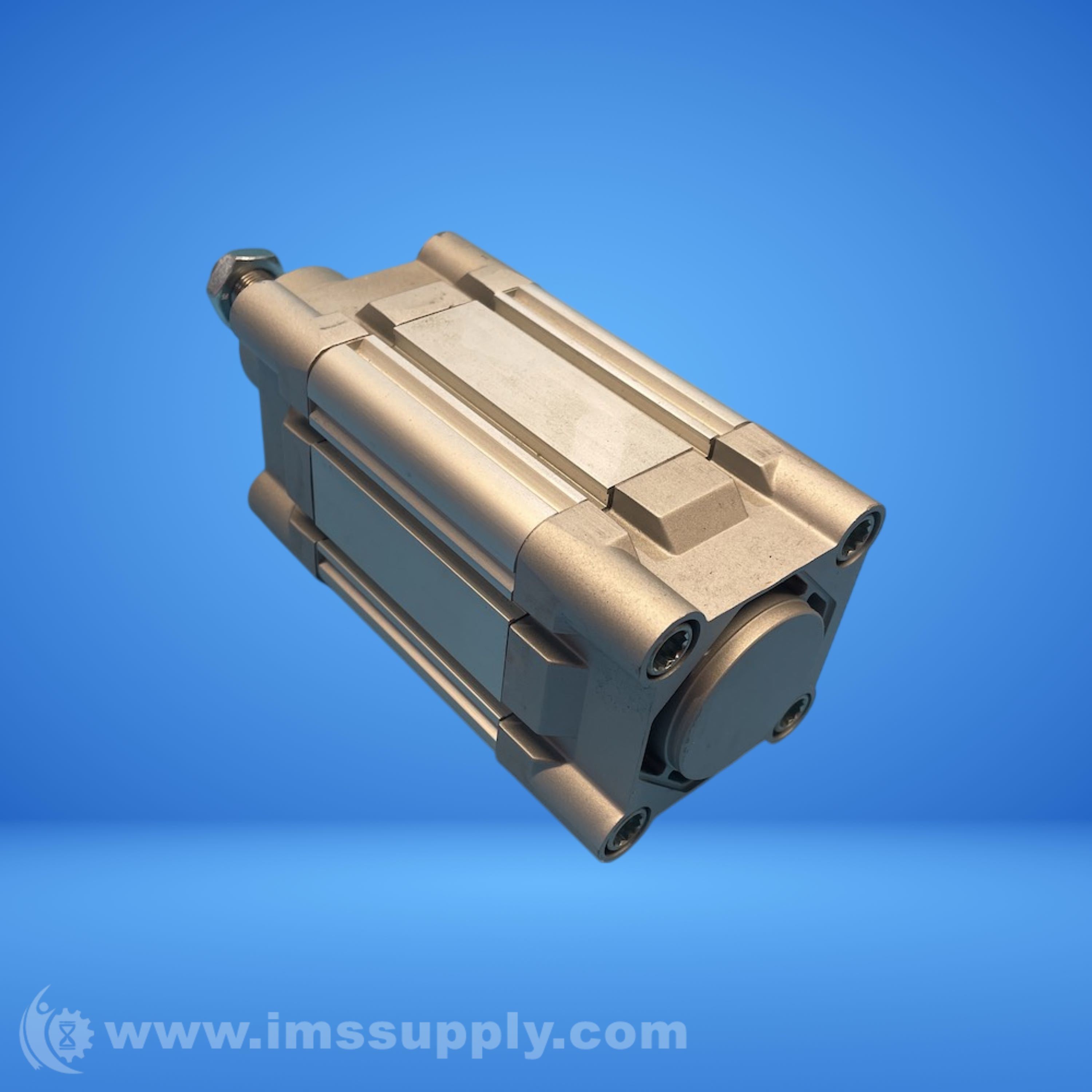

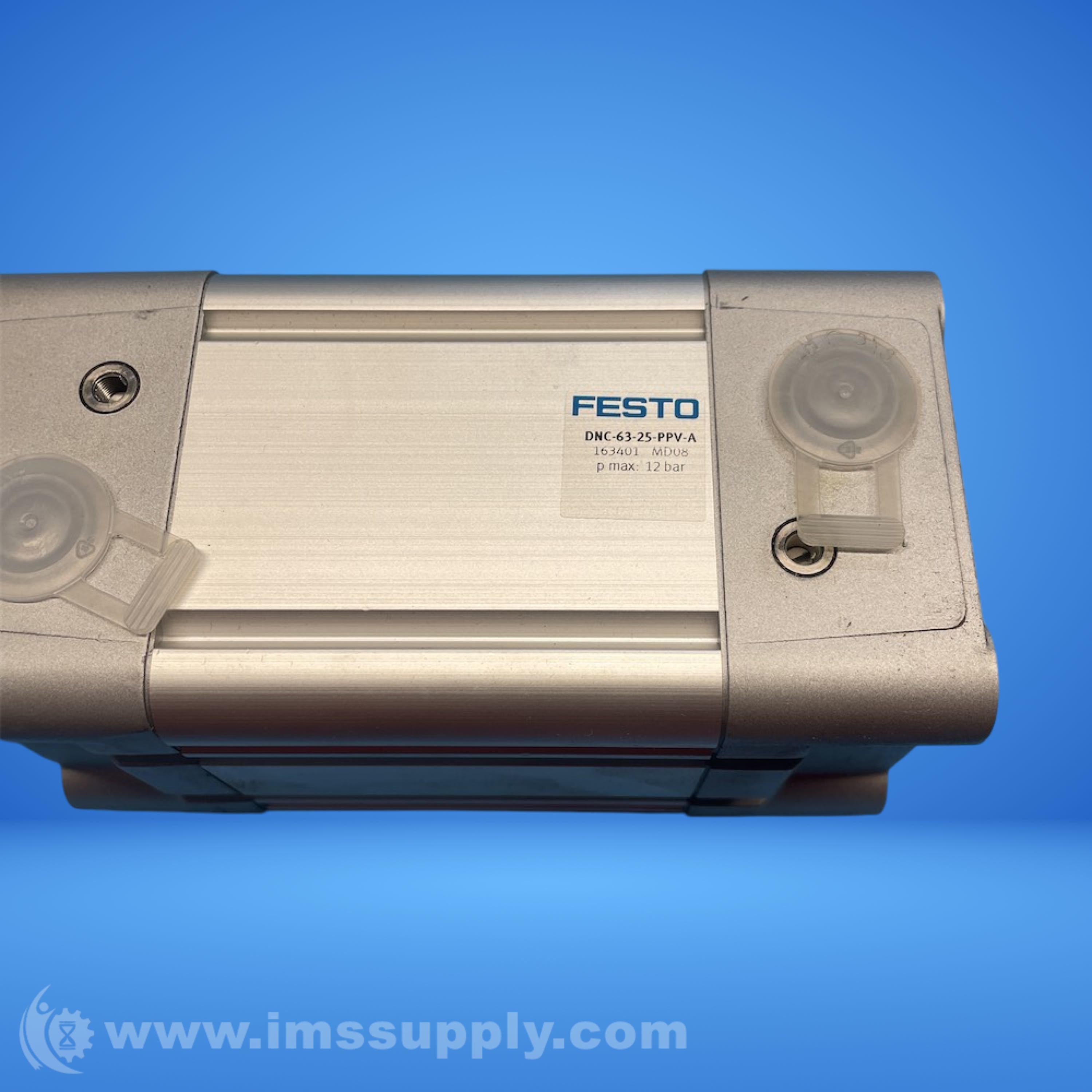

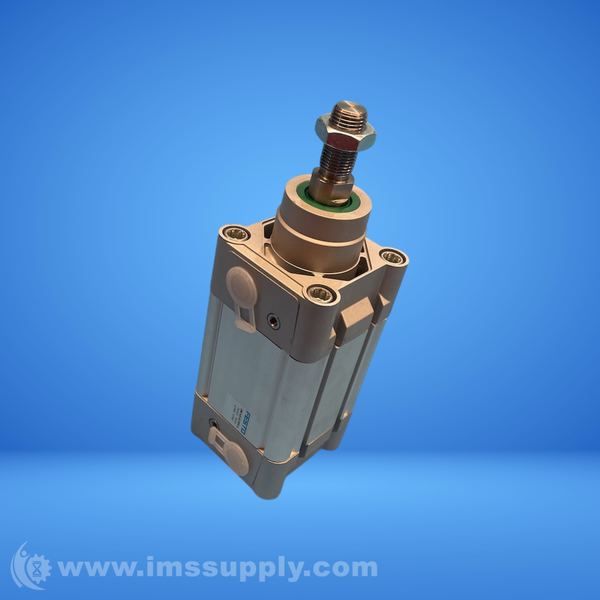

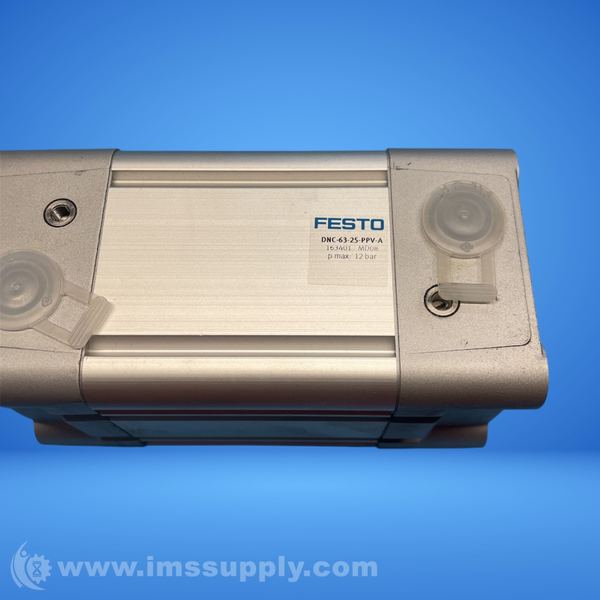

Festo DNC63-25-PPV-A Pneumatic Cylinder
ISO 15552 pneumatic cylinder with 63mm piston diameter and 25mm stroke.
Specifications
- Type: DNC
- Size: 63
- Stroke: 25
- Cushioning: PPV
- Design: Pneumatic cylinder
- Cylinder Bore Size: 63 mm
- Stroke Length: 25 mm
- Maximum Force: 1870 N Advance
- Cylinder Action: Double Acting
- Port Size: G3/8
- Rod Thread Size: M16 x 1.5
- Rod Thread Length: 32 mm
- Pressure Rating: 0.6 to 12 bars
- Temperature Rating: -20 to 80 degrees C
- Cushioning Type: Pneumatic
- Mounting Type: Threaded
- Material: High Alloy Steel Piston Rod/Wrought Aluminum Alloy Cylinder Barrel
- Standard: ISO 15552
- Piston-rod end: Male thread
- Mode of operation: Double-acting
- Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4]
- Operating pressure: 0.06MPA to 1.2MPA
- Corrosion resistance class: 2 - Moderate
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
