FESTO DSM-12-270-P-FW-A-B SEMI-ROTARY DRIVE
Quick Overview
Manufactured By: FESTO
Manufacturer Part Number: DSM-12-270-P- FW- A -B
IMS Product Code: 2148198
Packaging: Sold Individually
Description:

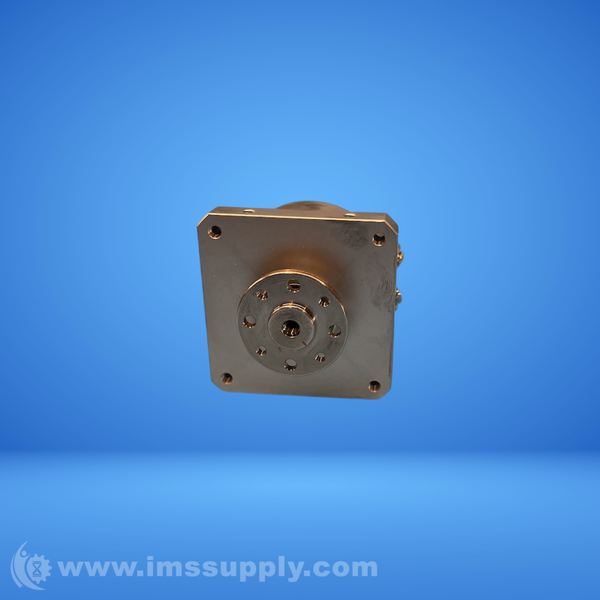

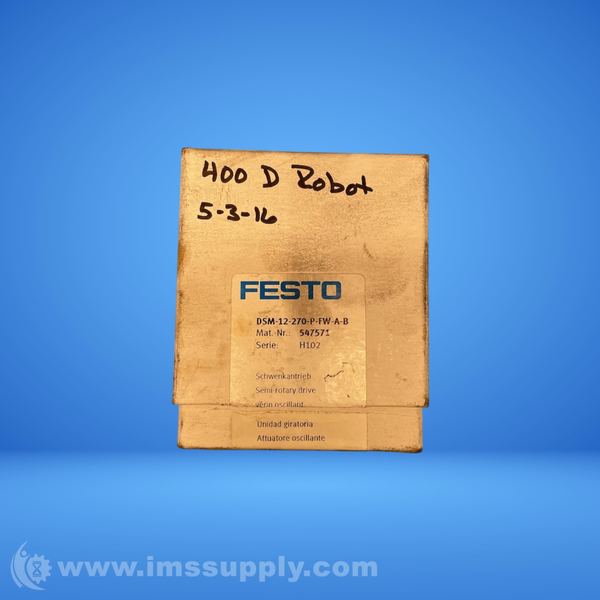

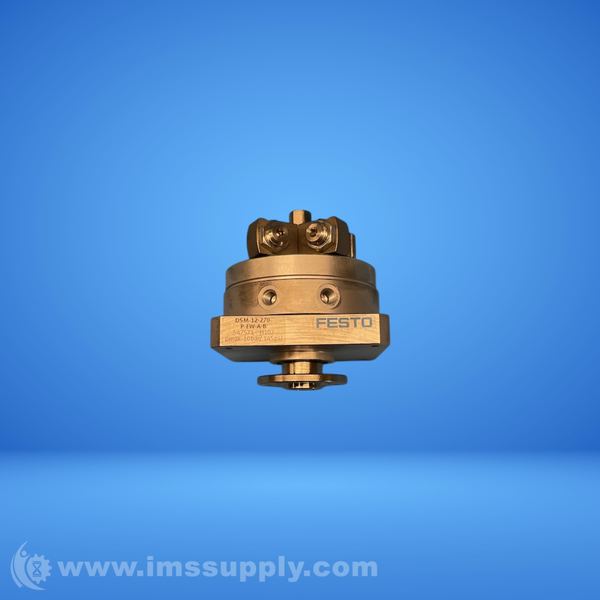

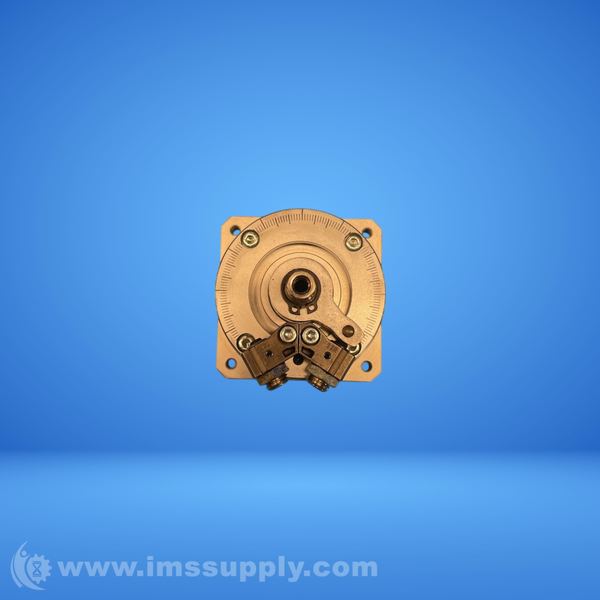

Festo DSM-12-270-P-FW-A-B Semi-Rotary Drive
Standard double-acting rotary vane actuator in 12mm size with 270° swivel angle, Flanged shaft, and optional position sensing.
Specifications
- Size: 12
- Cushioning Angle: 1.8 degrees
- Rotation Angle Adjustment Range: 0 degrees - 270 degrees
- Swivel Angle: 270 degrees
- Mode of Operation: Double-acting
- Design: Vane
- Operating Pressure: 0.2 - 10 bar
- Max Swivel Frequency: 2 Hz
- Operating Medium: Compressed air to ISO 8573-1:2010 [7:-:-]
- Corrosion Resistance Class: 0 - No corrosion stress
- Max Axial Force: 18 N
- Max Radial Force: 45 N
- Theoretical Torque: 1.25 Nm
- Permissible Mass Moment of Inertia: 0.005 kgm²
- Product Weight: 293 g
- Type of Mounting: Via female thread
- Material Drive Shaft: Steel/Nickel-plated
- Material Seals: TPE-U(PU)
- Material Housing: Wrought aluminium alloy
- Ambient Temperature: -10°C to 60°C
- Pneumatic Connection: M5
