FESTO GRLA-3/8-B ONE-WAY FLOW CONTROL VALVE
Quick Overview
Manufactured By: FESTO
Manufacturer Part Number: GRLA-3/8-B
IMS Product Code: 2045193
Packaging: Sold Individually
Description:

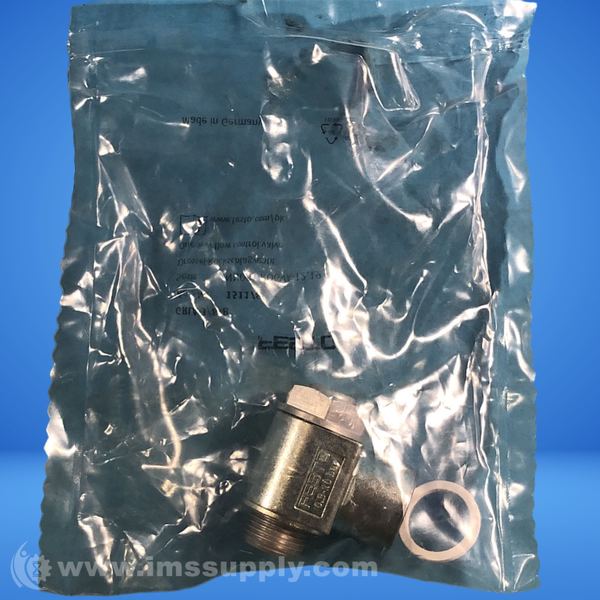

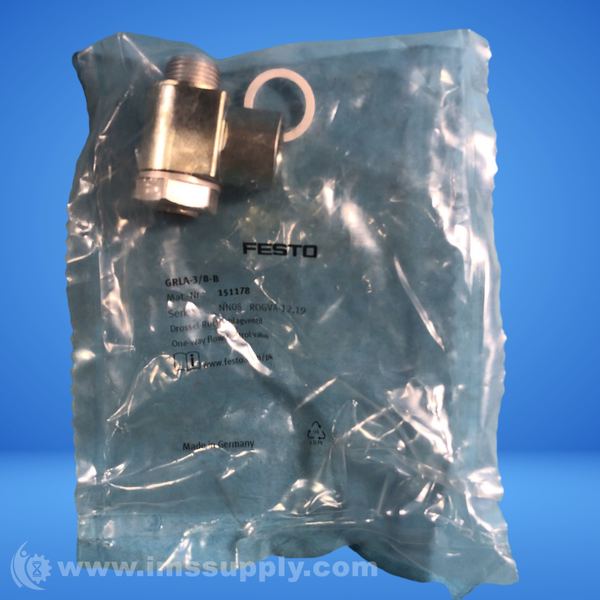

Festo GRLA-3/8-B One-way Flow Control Valve
One-way flow control valve with screw-in mounting and G3/8 pneumatic connections. Made from materials including wrought aluminium alloy, brass, and die-cast zinc. Operating pressure range from 0.3 to 10 bar, with temperature range -10 to 60 degrees C.
Specifications
- Valve Function: Exhaust air one-way flow control function
- Adjustment Component: Slotted head screw adjustment
- Mounting Type: Screw-in
- Standard Nominal Flow Rate Flow Control Direction: 1450L2
- Standard Nominal Flow Rate Blocked Direction: 970L2, 1600L2
- Operating Pressure Complete Temperature Range: 0.3BAR, 10BAR
- Standard Flow Rate Flow Control Direction: 2300L2
- Standard Flow Rate Non-return Direction: 1540L2, 2540L2
- Operating Medium: Compressed air to ISO 8573-1:2010 [7:4:4]
- Lubricated Operation: possible
- VDMA24364-B1/B2-L_lABS_(PWIS)_conformity: yes
- Media Temperature: -10C to 60C
- Max Tightening Torque: 20Nm
- Product Weight: 97g
- Material Seals: NBR
- Material Hollow Bolt: Wrought aluminium alloy
- Material Adjusting Screw: Brass
- Material Nut: Wrought aluminium alloy
- Material Swivel Fitting: Die-cast zinc
- Ambient Temperature: -10C to 60C
- Pneumatic Connection Port 1: G3/8
- Pneumatic Connection Port 2: G3/8
New:
A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable).
Availability: 1 In Stock
Ships today if ordered in the next 14 hours and 32 minutes.
