FESTO KP-32-7500 CLAMPING CARTRIDGE
Quick Overview
Manufactured By: FESTO
Manufacturer Part Number: KP-32-7500
IMS Product Code: 2122243
Packaging: Sold Individually
Description:

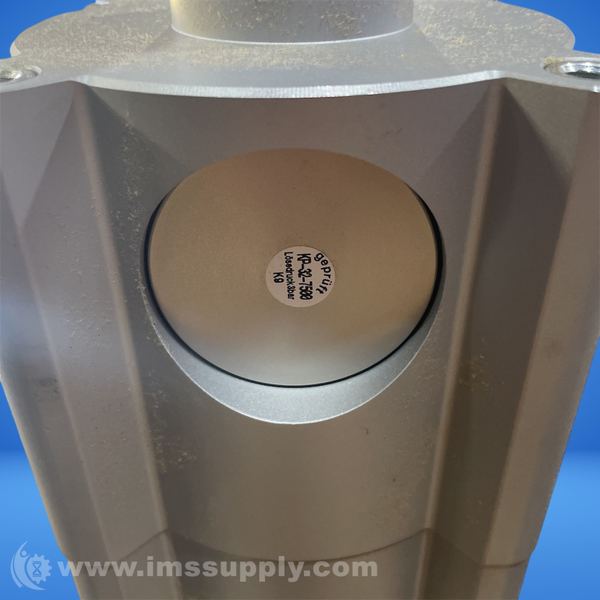

Festo KP-32-7500 Clamping Cartridge
Pneumatic clamping cartridge with tilting wedge mechanism, static holding force of 7500 N, operating pressure range of 1-10 bar, and ambient temperature range of -10 to 80 degrees C.
Specifications
- clamping force: 7500 N
- pressure rating: 10 bar
- temperature rating: -10 to 80 degrees C
- suitable for use with: round material
- material: anodized aluminum
- finish: anodized
- dimensions: 195 mm L x 45 mm W
- operating medium: compressed air to ISO 8573-1:2010 [7:4:4]
- lubricated operation possible: true
- corrosion resistance class: 2 - moderate corrosion stress
- product weight: 1600 g
- material seals: NBR/TPE-U(PU)
- material spring: spring steel
- material housing: aluminum/anodized
- material clamp jaws: brass
- material piston: POM
- release pressure: 0.3 MPA/3 BAR
- round material to be clamped: 32 mm
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships today if ordered in the next 9 hours and 41 minutes.
