FESTO LF-1/2-D-MIDI-NPT FILTER/REGULATOR
Quick Overview
Manufactured By: FESTO
Manufacturer Part Number: LF-1/2-D-MIDI-NPT
IMS Product Code: 2129815
Packaging: Sold Individually
Description:

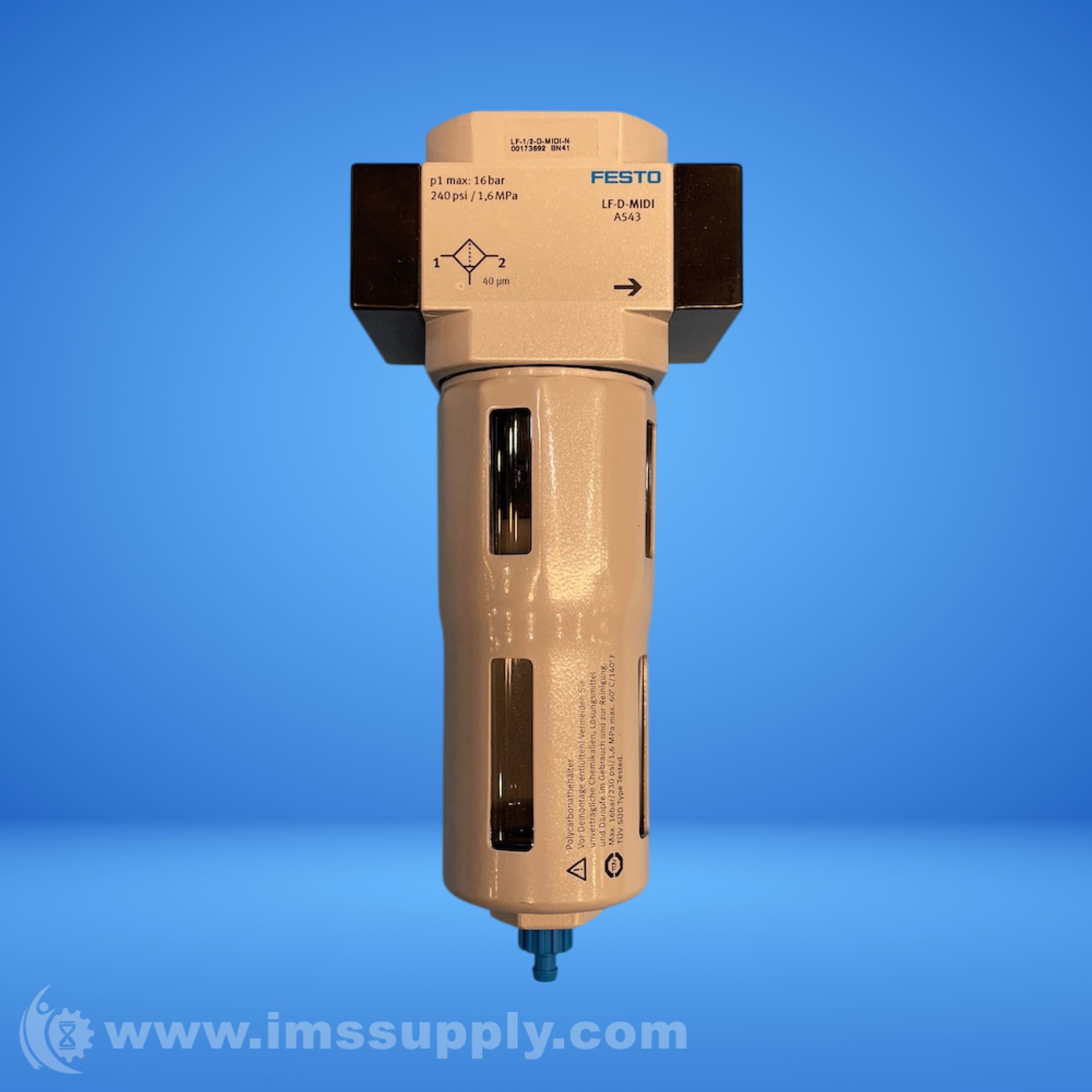

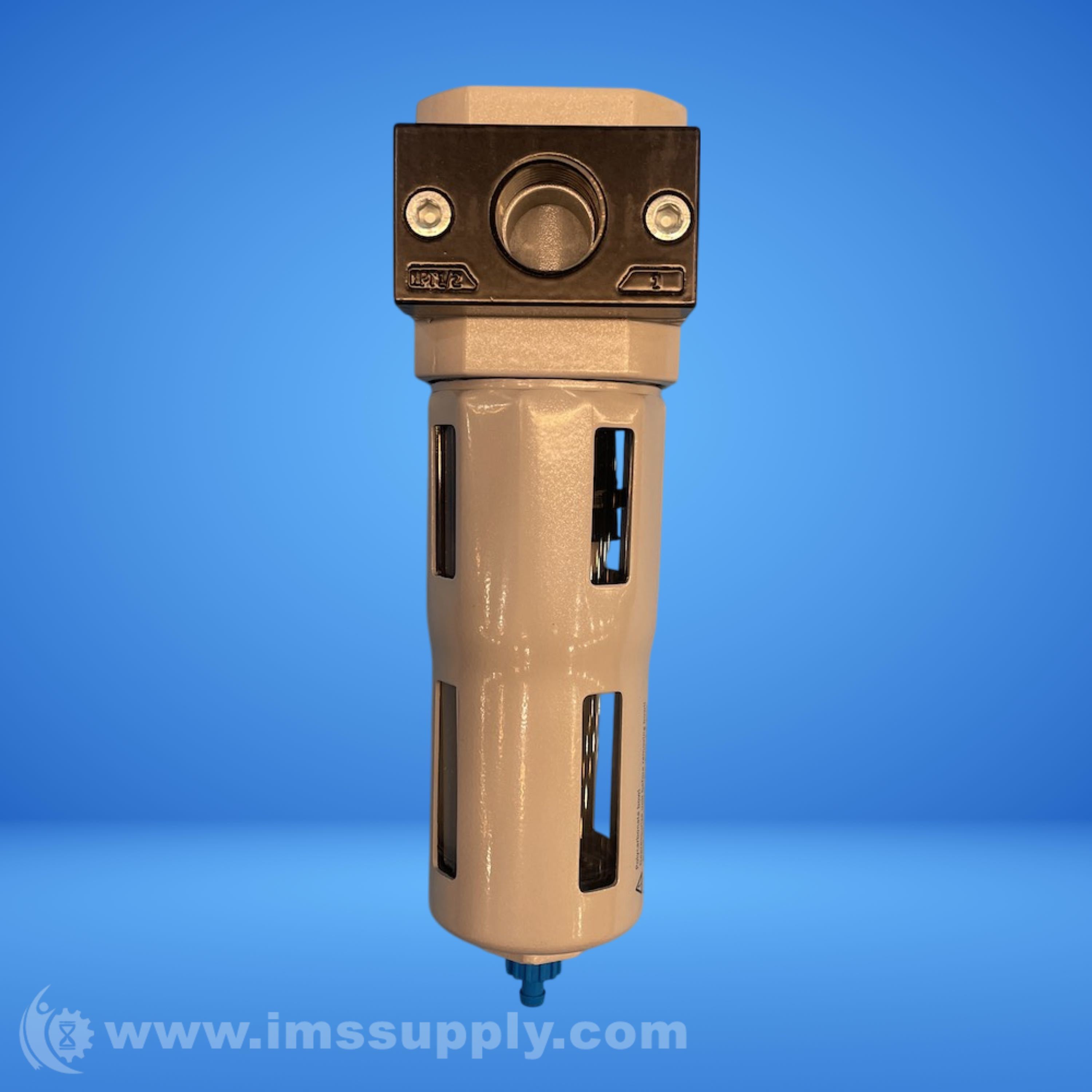

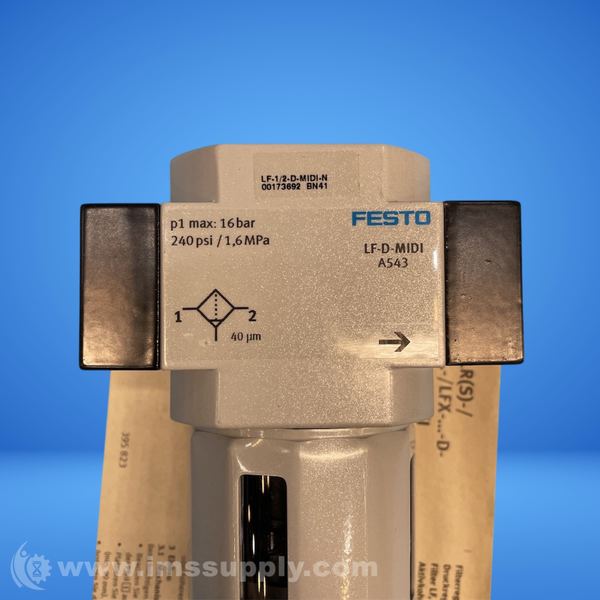

Festo LF-1/2-D-MIDI-NPT Filter/Regulator
Festo LF-1/2-D-MIDI-NPT Filter/Regulator, 1/2" NPT Ports, 170-5300 l/min flow rate, 40 µm micron rating, Midi (55mm) model with Manual condensate drain.
Specifications
- Flow Rate: 170-5300 l/min
- Connection: G1/2
- Micron Rating: 40 µm
- Model Size: Midi (55mm)
- Condensate Drain: Manual
- Mounting Position: Vertical
- Filtration Grade: 40MIM
- Bowl Guard: Metal
- Operating Medium: Compressed air to ISO 8573-1:2010 [-:9:-], Inert gases
- Corrosion Resistance Class: 2 - Moderate
- Air Purity Class at Output: Compressed air to ISO 8573-1:2010 [7:8:4], Inert gases
- Media Temperature: -10 degrees C to 60 degrees C
- Type of Mounting: Either: In-line installation, Via mounting bracket
- Material Filter: PE
- Material Housing: Die-cast zinc
- Material Bowl: PC
- Operating Pressure: 0 to 16 bar
- Ambient Temperature: -10 degrees C to 60 degrees C
- Storage Temperature: -10 degrees C to 60 degrees C
- Pneumatic Connection: 1/2 NPT
- Type: Midi
- Series: LF-D
- Port Size: 1/2-14 NPT
- Filter Rating: 40 um
- Pressure Range: 0 to 16 bar
- Temperature Rating: 14 to 140 deg F
- Bowl Material: Polycarbonate
- Overall Length: 194 mm
