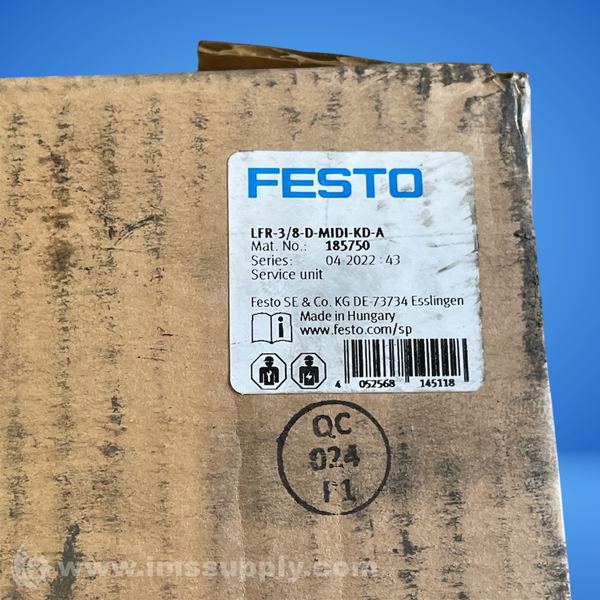

FESTO LFR-3/8-D-MIDI-KD-A SERVICE UNIT
Quick Overview
Manufactured By: FESTO
Manufacturer Part Number: LFR-3/8-D-MIDI-KD-A
IMS Product Code: 2146764
Packaging: Sold Individually
Description:
Festo LFR-3/8-D-MIDI-KD-A Service Unit
Festo filter regulator with G 3/8 connection and 40 µm filtration
Specifications
- Series: LFR
- Pneumatic connection: G3/8
- Version: D series, metal
- Size: MIDI
- Service unit combination: Filter regulator, on/off valve electrically operated, 24 V DC, soft-start valve pneumatically operated
- Condensate drain: Fully automatic
- Actuator lock: Rotary knob with detent
- Grade of filtration: 40 µm
- Design: On/off valve Filter regulator with pressure gauge Safety start-up valve
- Bowl guard: Metal bowl guard
- Pressure regulation range: 2.5 bar ... 12 bar
- Standard nominal flow rate: 1890 l/min
- Corrosion resistance class CRC: 2 - Moderate corrosion stress
- Media temperature: -10 degrees C ... 60 degrees C
- Product weight: 2100 g
- Pneumatic connection, port 1: G3/8
- Material housing: Die-cast zinc
- Mounting position: Vertical +/-5 degrees
- Max. condensate volume: 43 ml
- Operating pressure: 3 bar ... 12 bar
- Max. pressure hysteresis: 0.25 bar
- Operating medium: Compressed air to ISO 8573-1:2010 [-:-:-] Inert gases
- Air purity class at output: Compressed air to ISO 8573-1:2010 [7:8:4] Inert gases
- Ambient temperature: -10 degrees C ... 60 degrees C
- Type of mounting: In-line installation With accessories Either:
- Pneumatic connection, port 2: G3/8
- Material bowl: PC
