FESTO LFR-D-5M-MIDI FILTER REGULATOR
Quick Overview
Manufactured By: FESTO
Manufacturer Part Number: LFR-D-5M-MIDI
IMS Product Code: 2159972
Packaging: Sold Individually
Description:

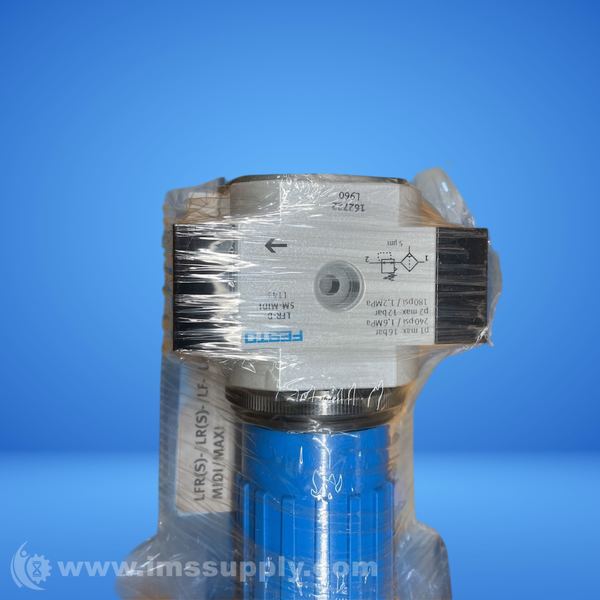

Festo LFR-D-5M-MIDI Filter Regulator
Festo filter regulator with metal bowl guard, 5 �m filtration, manual condensate drain, and rotary knob with lock.
Specifications
- Size: Midi
- Series: D
- Actuator lock: Rotary knob with lock
- Assembly position: Vertical +/- 5 degrees
- Grade of filtration: 5 �m
- Design structure: Filter regulator without pressure gauge
- Max. condensate volume: 1.462 oz
- Bowl guard: Metal bowl guard
- Pressure gauge: Prepared for G1/4
- Operating pressure: 13.8 � 240 Psi
- Pressure regulation range: 6.9 � 180 Psi
- Max. pressure hysteresis: 3 Psi
- Dimensions: 14.173228 � 3.740157 � 2.362205 in
- Normal nominal flow rate: 10677.97 l/min
- Operating medium: Inert gas
- Corrosion resistance class: 2 � Moderate corrosion stress
- Storage temperature: -10 � 60 �C
- Air quality class at output: Compressed air as per ISO 8573-1:2010 [6:8:4]
- Temperature of medium: -10 � 60 �C
- Ambient temperature: -10 � 60 �C
- Product weight: 893.025 g
- Type of mounting: With accessories
- Housing material: Die-cast zinc
- Material of bowl: PC

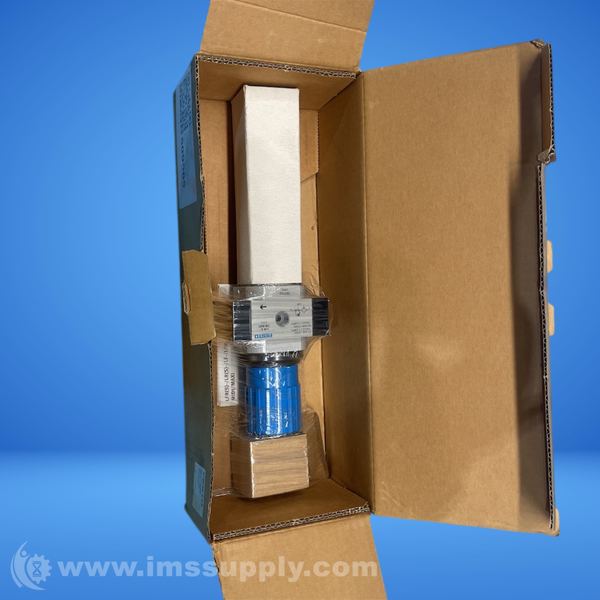

New - Open Box:
