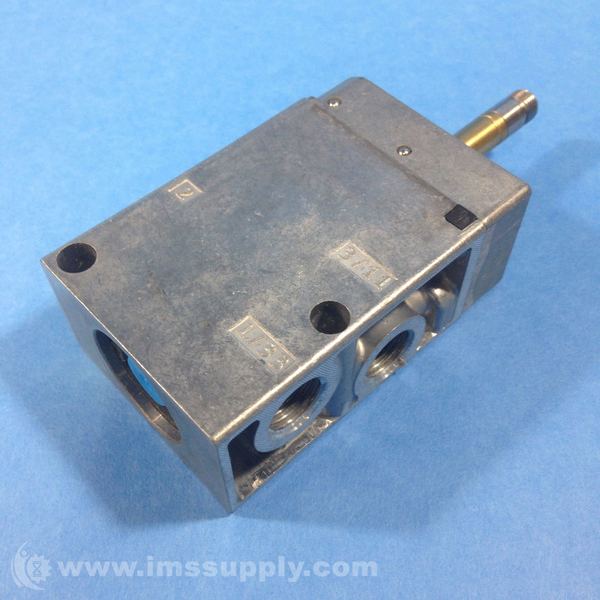

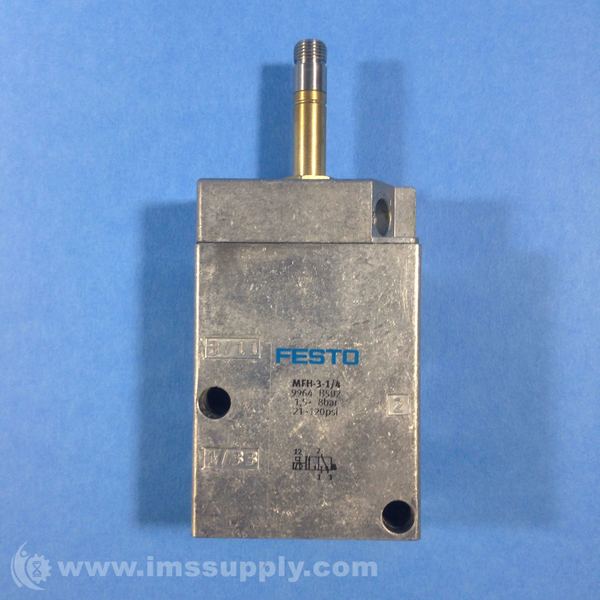

FESTO MFH-3-1/4 SOLENOID VALVE (9964)
Quick Overview
Manufactured By: FESTO
Manufacturer Part Number: MFH-3-1/4
IMS Product Code: 1735439
Packaging: Sold Individually
Description:
Order No./Part No./ Type: ISO Connection (9964) MFH-3-1/4
Medium: Compressed air (filtered, lubricated or unlubricated)†
Design: Poppet valve, piloted, with spring return
Mounting: Holes through housing
Connection: G 1/4 ISO / 1/4 NPT
Orifice Size: 0.28 in / 7 mm
Cv Factor (1-2): 0.8 Cv/ 800 l/min
Operating Pressure Range: 22.5 to 120 psi / 1.5 to 8 bar
Pilot Pressure Range: ---
Response Time at 90 psi / 6 bar: On: 10 ms / Off: 29 ms
Medium Temperature: 14°F to +140°F / -10°C to +60°C
Materials: Housing: Diecast Al, anodized. Seals: Buna N
Weight: 0.705 lb / 0.320 kg
Direct Current
Standard Voltage: 12,24V
Available Voltage: 12 to 230V
Alternating Current
Standard Voltage: 24,42,110,230V / 50 to 60 Hz
Available Voltage: 12 to 240V / 50 or 60 Hz
Power Consumption
DC: 4.5 W
AC: Holding: 6 VA, Inrush 7.5 VA
Duty Cycle: 100%
Type of Protection: IP 65 (DIN 40050)
