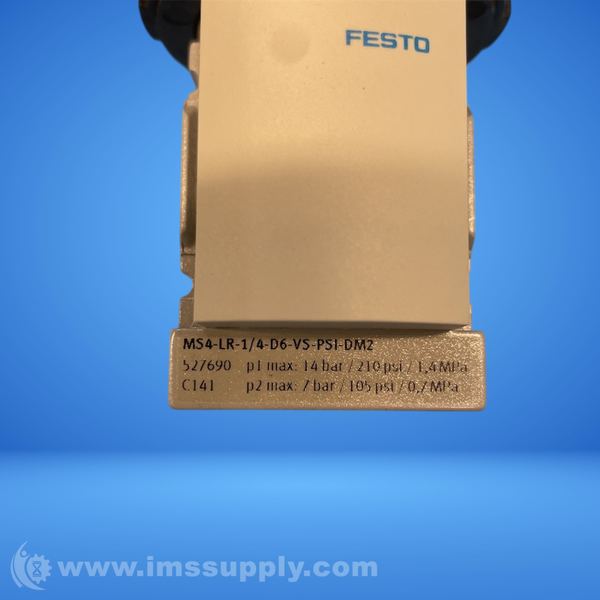

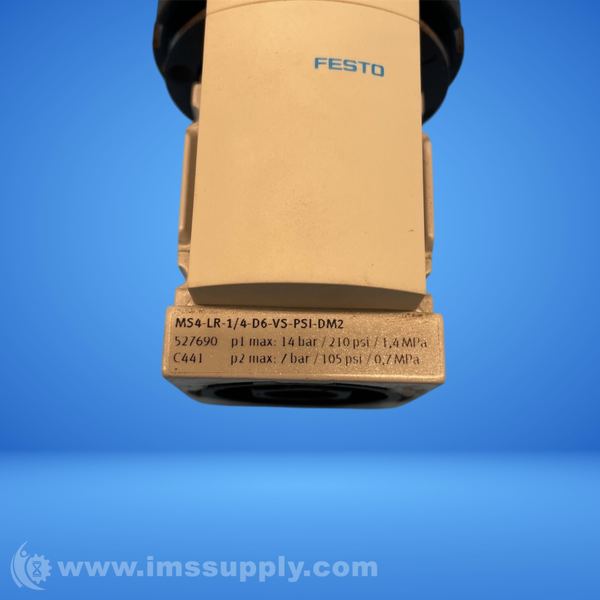

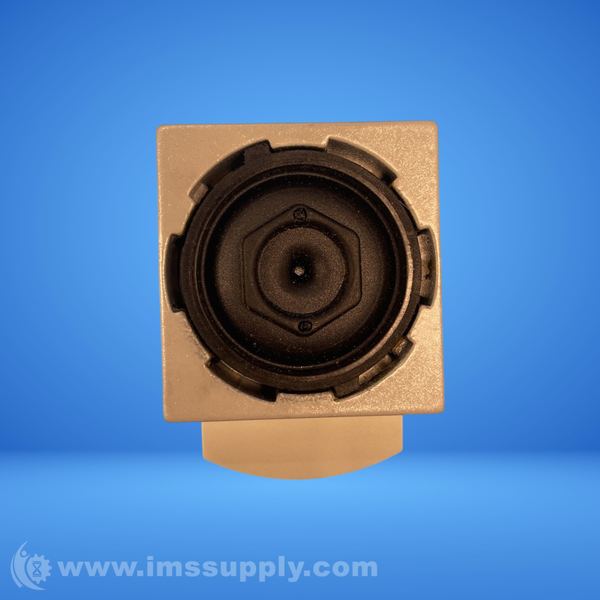

FESTO MS4-LR-1/4-D6-VS-PSI-DM2 PRESSURE REGULATOR
Quick Overview
Manufactured By: FESTO
Manufacturer Part Number: MS4-LR-1/4-D6-VS-PSI-DM2
IMS Product Code: 2129401
Packaging: Sold Individually
Description:
Festo MS4-LR-1/4-D6-VS-PSI-DM2 Pressure Regulator
Pressure regulator with G1/4 female thread connection for 0.3 to 7 bar pressure range, manually actuated.
Specifications
- Size: 4
- Series: MS series
- Actuator lock: Rotary knob with detent
- Mounting position: Optional
- Regulator design: Directly actuated diaphragm
- Controller function: Output pressure constant
- Secondary venting: With secondary venting
- Return flow function: With return flow function

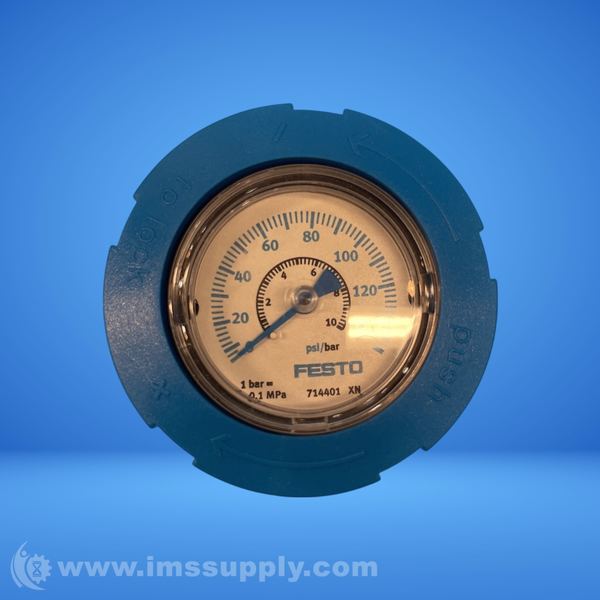

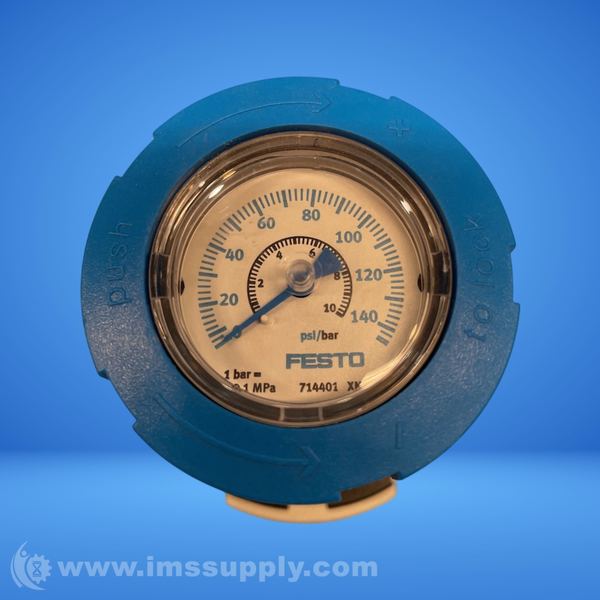

- Pressure gauge: Via pressure gauge in rotary knob (analog)
- Operating pressure: 0.08 MPa to 1.4 MPa (0.8 bar to 14 bar)
- Max. pressure hysteresis: 0.04 MPa (0.4 bar, 5.8 PSI)
- Standard nominal flow rate: 1800 l/min
- Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4], Inert gases
- Lubricated operation: Possible
- Corrosion resistance class: 2
- lABS (PWIS) conformity: VDMA24364-B1/B2-L
- Media temperature: -10 degrees C to 60 degrees C
- Product weight: 225 g
- Type of mounting: Front panel, In-line, With accessories
- Material sub-base: Die-cast aluminium
- Material control panel: PA, POM
- Material seals: NBR
- Material housing: Die-cast aluminium
- Material membrane: NBR
- Pressure regulation range: 0.3 bar to 7 bar
- Ambient temperature: -10 degrees C to 60 degrees C
- Storage temperature: -10 degrees C to 60 degrees C
- Pneumatic connection: G1/4 (ports 1 & 2)
New:
A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable).
Availability: 21 In Stock
Ships on Monday, October 13, 2025
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.

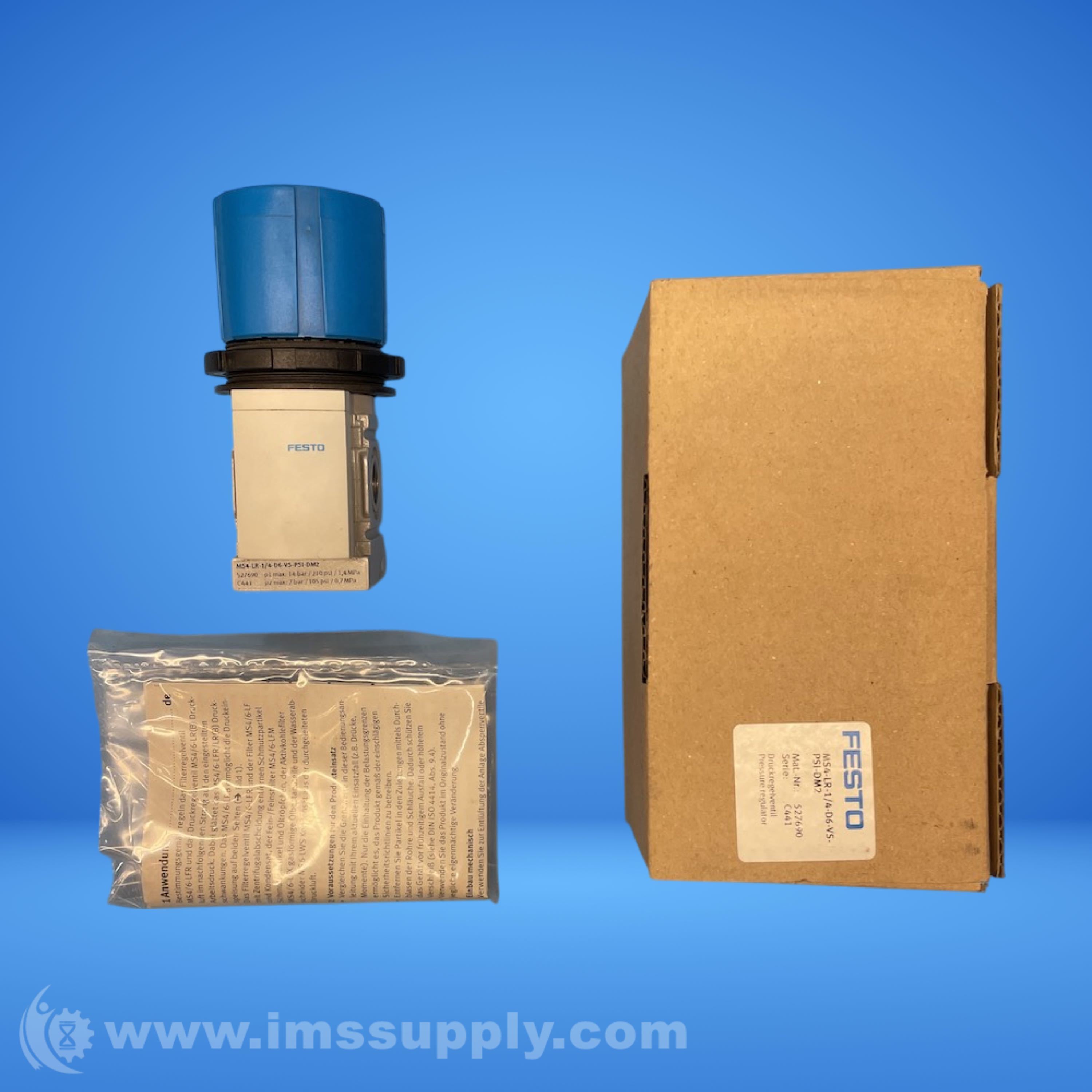

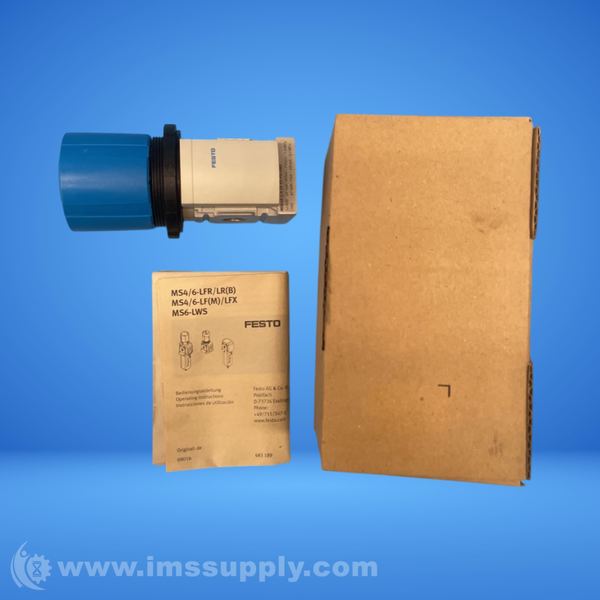

New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 3 In Stock
Ships on Monday, October 13, 2025
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
New - Open Box (Special):
Missing two manuals
Availability: 1 In Stock
Ships on Monday, October 13, 2025
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
