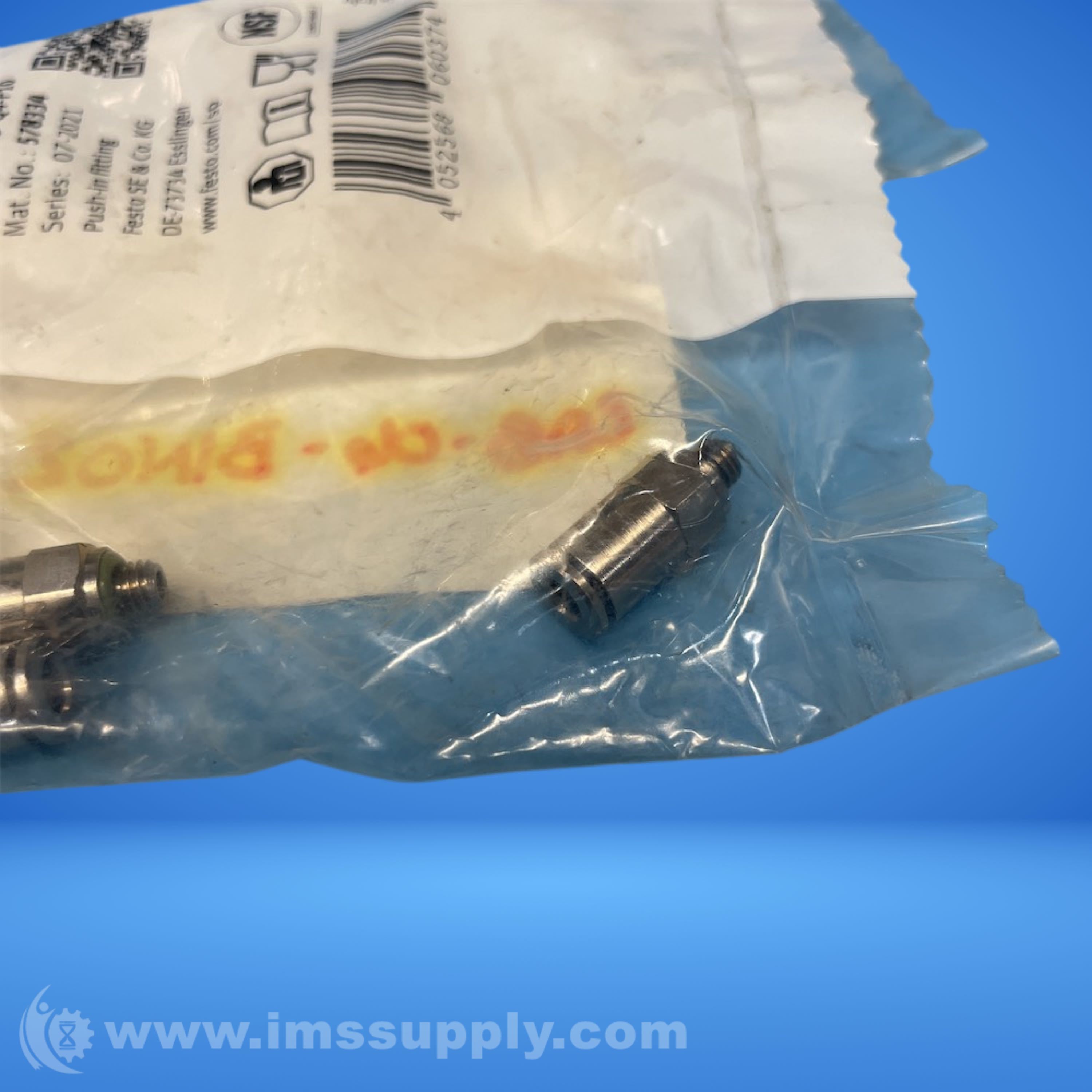

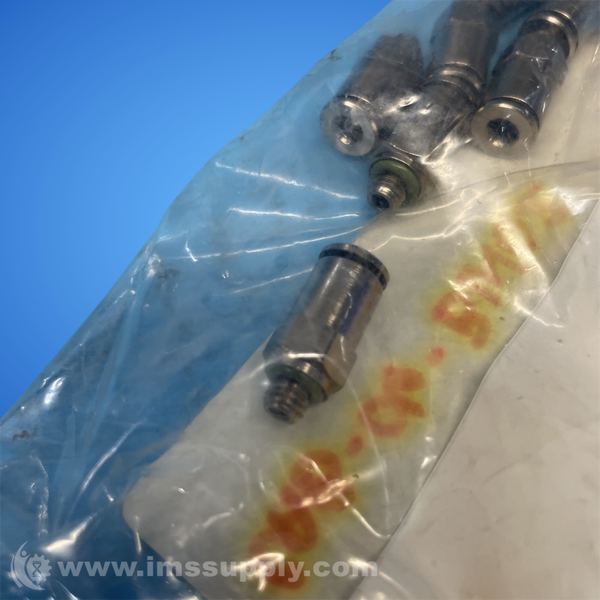

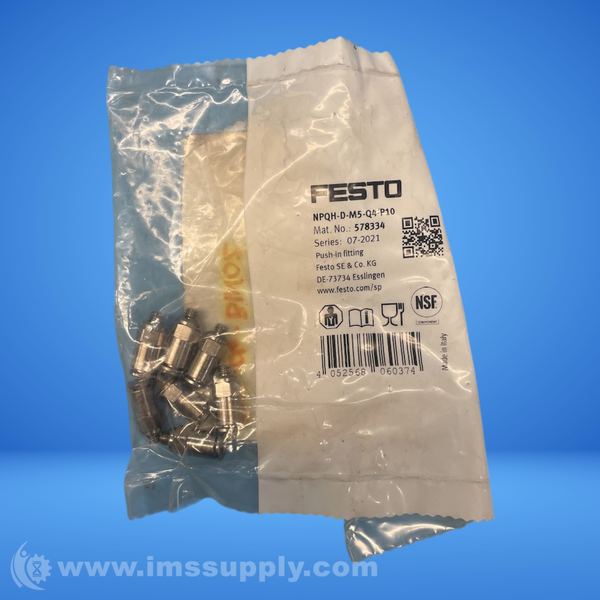

FESTO NPQH-D-M5-Q4-P10 PUSH-IN FITTING
Quick Overview
Manufactured By: FESTO
Manufacturer Part Number: NPQH-D-M5-Q4-P10
IMS Product Code: 2127496
Packaging: Pack of 7
Description:
Festo NPQH-D-M5-Q4-P10 Push-In Fitting
Push-in fitting with M5 male thread and 4mm tubing outside diameter
Specifications
- Connection Type: Push-in
- Pneumatic Connection: M5
- Tubing Outer Diameter: 4mm
- Fitting Material: Brass
- Operating Pressure: 0-10 bar
- Operating Temperature: -10 to 60 degrees C
- Mounting Type: Sub-base mounting
- Weight: 5.8g
- Material Housing: Nickel-plated brass
- Material Release Ring: Nickel-plated brass
- Material Tubing Clamp Component: High-alloy stainless steel
- Nominal Size: 2.5mm
- Design: Push-pull principle
- Max. Tightening Torque: 1.5 Nm
- RoHS Compliant: Yes
New:
A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable).
Availability: 1 In Stock
Ships today if ordered in the next 13 hours and 18 minutes.
