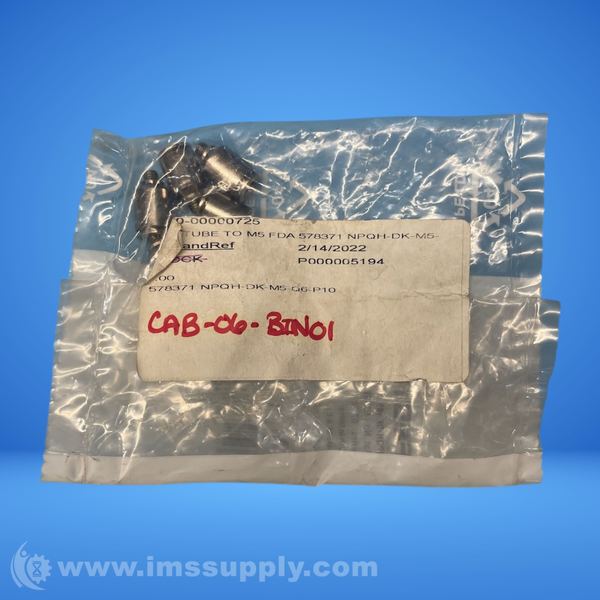

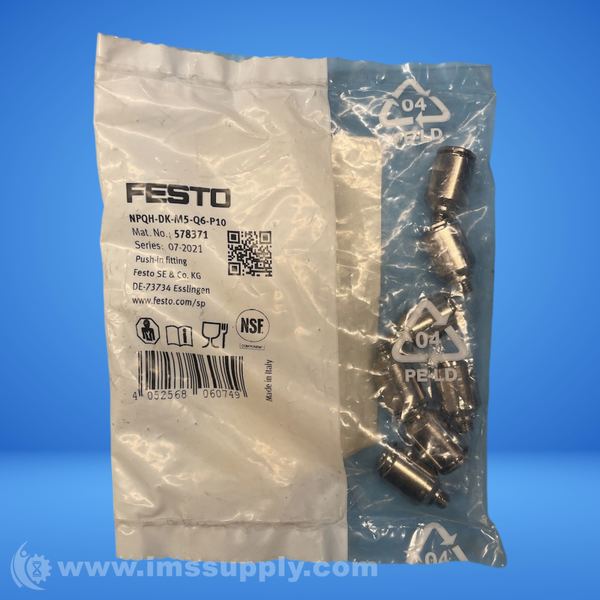

FESTO NPQH-DK-M5-Q6-P10 PUSH-IN FITTING
Quick Overview
Manufactured By: FESTO
Manufacturer Part Number: NPQH-DK-M5-Q6-P10
IMS Product Code: 2127499
Packaging: Pack of 7
Description:
Festo NPQH-DK-M5-Q6-P10 Push-In Fitting
Festo pneumatic fitting, NPQH series Nickel plated SS
Specifications
- Series: NPQH
- Nominal Size: 2.5 mm
- End Style: M5 MNPT x 6 mm Tube
- Angle: Straight
- Hex Size: 2.5 mm
- Length: 22 mm
- Pressure Rating: -0.95 to 20 bar
- Temperature Rating: 0 to 150 deg C
- Material: Brass
- Finish: Nickel Plated
- Dimensions: 12 mm H
- Weight: 8.8 g
- Pneumatic Connection 1: Male thread M5
- Pneumatic Connection 2: For hose exterior diameter 6 mm
- Nominal Width: 2.50 mm
- Max. Tightening Torque: 1.5 Nm
- Seal Material: FPM
- Corrosion Resistant Class: 3 - severe corrosion stress
- Food Compatibility: NSF/ANSI 169
