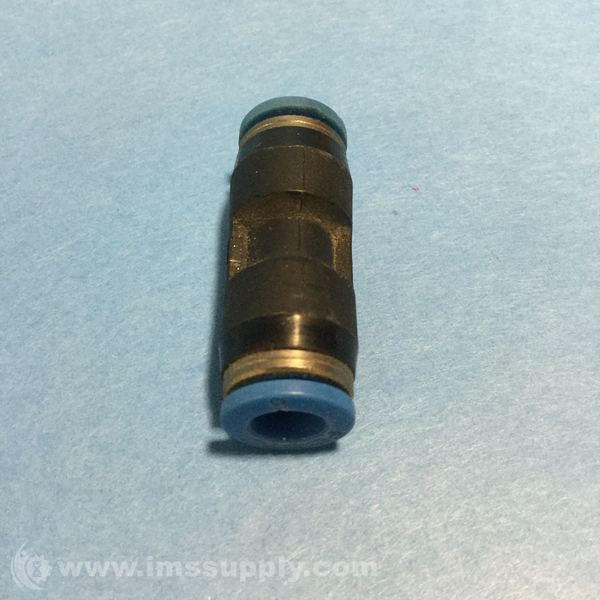

FESTO QS-6 PUSH-IN CONNECTOR
Quick Overview
Manufactured By: FESTO
Manufacturer Part Number: QS-6
IMS Product Code: 1750465
Packaging: Sold Individually
Description:
Festo QS-6 Push-in Connector
Pneumatic fitting for tubing outside diameter of 6 mm
Specifications
- Nominal Size: 4.3MM
- Design: Straight
- Operating Pressure: -0.095MPA to 0.6MPA, -0.95BAR to 6BAR, -13.775PSI to 87PSI
- Temperature Dependent Operating Pressure: -0.095MPA to 1.4MPA, -0.95BAR to 14BAR, -13.775PSI to 203PSI
- Operating Medium: Compressed air to ISO 8573-1:2010 [7:-:-]
- Corrosion Resistance Class: 1 - Low
- Cleanroom Class: Class 4 according to ISO 14644-1
- Product Weight: 6.5G
- Colour of Release Ring: Blue
- Material Housing: PBT
- Material Release Ring: POM
- Material Tubing Seal: NBR
- Material Tubing Clamp Component: High-alloy stainless steel
- Ambient Temperature: -10GC to 80GC
- Pneumatic Connection: For tubing outside diameter of 6 mm
- Size: 6 mm
- Type: Push-in connector
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
