FESTO QSL-1/8-4 PUSH-IN L-FITTING
Quick Overview
Manufactured By: FESTO
Manufacturer Part Number: QSL-1/8-4
IMS Product Code: 1750470
Packaging: Sold Individually
Description:

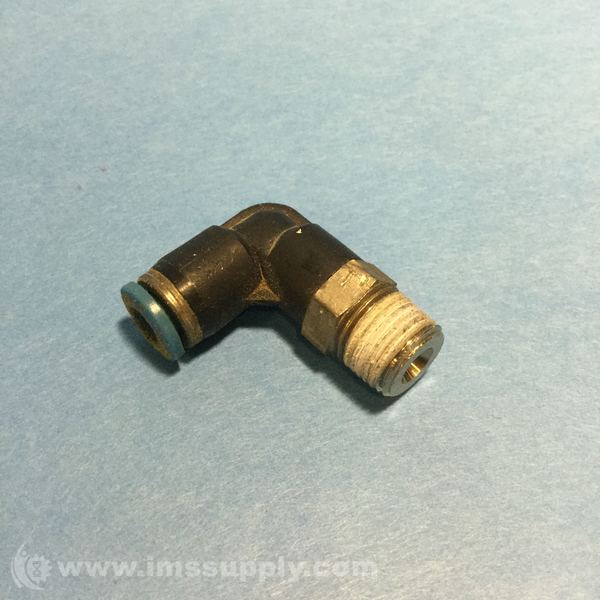

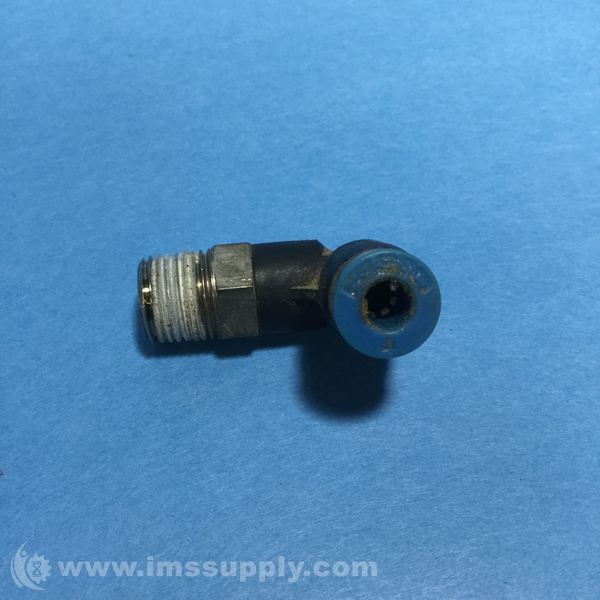

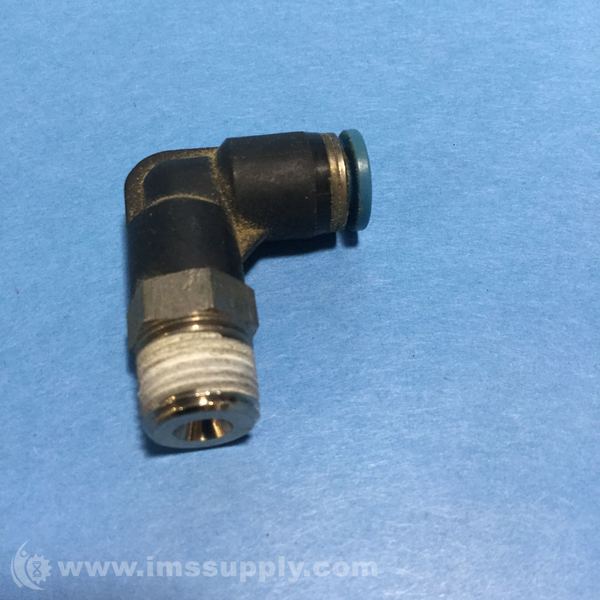

Festo QSL-1/8-4 Push-in L-fitting
Festo 153045 QSL-1/8-4 elbow male connector, push-in L-fitting, 360° orientable, male thread with external hexagon.
Specifications
- Nominal size: 2.8 mm
- Type of seal on screw-in stud: coating
- Assembly position: Any
- Operating pressure complete temperature range: -0.95 … 6 bar
- Temperature dependent operating pressure: -0.95 … 14 bar
- Operating medium: Compressed air in accordance with ISO8573-1:2010 [7:-:-]
- Corrosion resistance classification CRC: 1 – Low corrosion stress
- Ambient temperature: -10 … 80 °C
- Product weight: 10 g
- Connection 1: Male thread R1/8
- Connection 2: For tubing outside diameter 4 mm
- Colour of release ring: blue
- Material housing: PBT
- Design structure: Push/pull principle
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 2 In Stock
