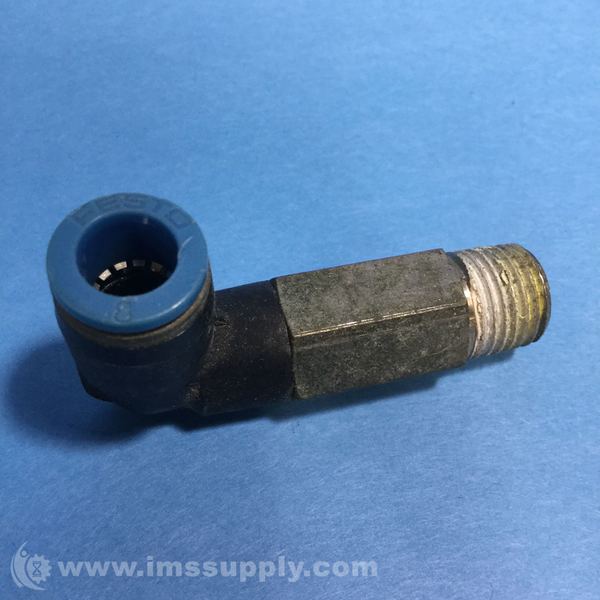

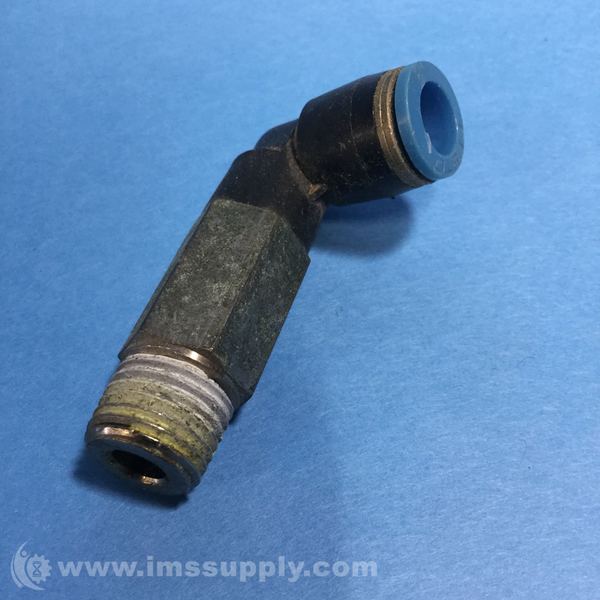

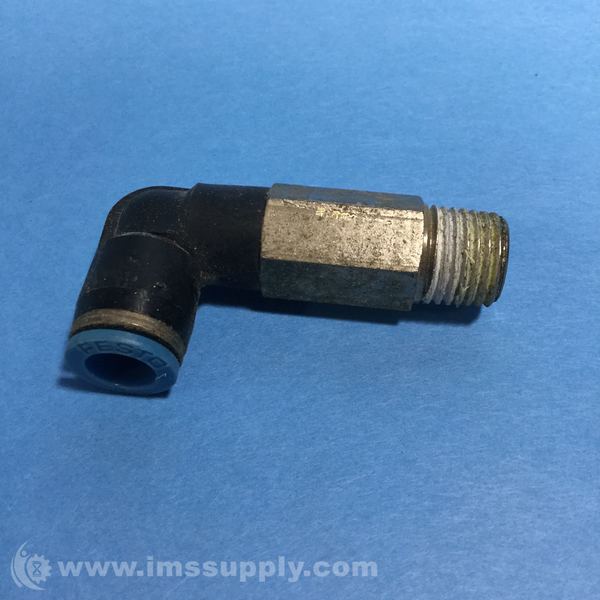

FESTO QSLL-1/4-8 PUSH-IN L-FITTING
Quick Overview
Manufactured By: FESTO
Manufacturer Part Number: QSLL-1/4-8
IMS Product Code: 1750460
Packaging: Sold Individually
Description:
Festo QSLL-1/4-8 Push-In L-Fitting
Pneumatic L-fitting with male thread R1/4 and tubing outside diameter 8mm.
Specifications
- Nominal size: 6.7MM
- Design: L-shape, long
- Operating pressure: -0.095MPA to 0.6MPA
- Operating medium: Compressed air to ISO 8573-1:2010 [7:-:-]
- Corrosion resistance class: 1 - Low
- Cleanroom class: Class 4 according to ISO 14644-1
- Nominal torque: 9NM
- Tolerance for nominal tightening torque: ± 20%
- Product weight: 22G
- Type of mounting: External hexagon, size 14 mm
- Colour of release ring: Blue
- Material screwed plug: Nickel-plated brass
- Material housing: PBT
- Material release ring: POM
- Material tubing seal: NBR
- Material tubing clamp component: High-alloy stainless steel
- Ambient temperature: -10GC to 80GC
- Pneumatic connection, port 1: Male thread R1/4
- Pneumatic connection, port 2: For tubing outside diameter of 8 mm
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 14 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
