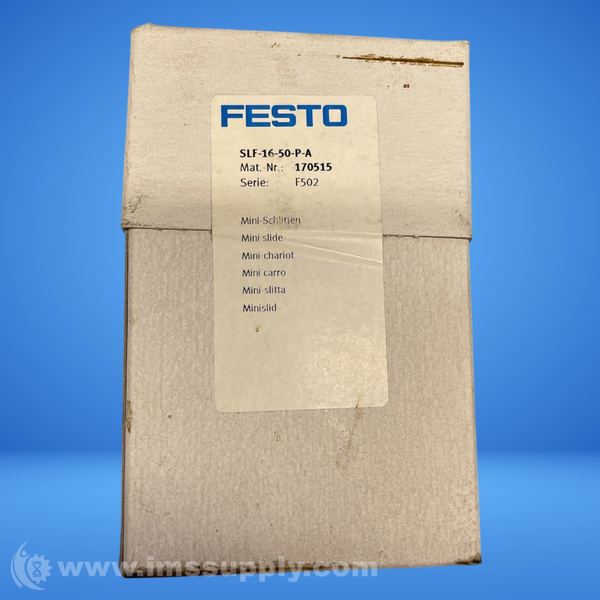

FESTO SLF-16-50-P-A MINI SLIDE
Quick Overview
Manufactured By: FESTO
Manufacturer Part Number: SLF-16-50-P-A
IMS Product Code: 2122521
Packaging: Sold Individually
Description:
Festo SLF-16-50-P-A Mini Slide
Double-acting mini slide with ball bearing cage guide size 16mm with 50mm stroke
Specifications
- Piston Diameter: 16 mm
- Stroke: 50MM
- Adjustable End-Position Range/Length: 5MM
- Operating Mode: Yoke operating mode, drive unit
- Cushioning: Elastic cushioning rings/plates at both ends
- Mounting Position: Optional
- Guide Type: Ball bearing cage guide
- Design: Yoke design, Piston design, Piston rod design, Ball roller guide design, Slide design
- Position Detection: Via proximity switch
- Operating Pressure: 0.1MPA, 1MPA, 1BAR, 10BAR, 14.5PSI, 145PSI
- Mode of Operation: Double-acting
- Operating Medium: Compressed air to ISO 8573-1:2010 [7:4:4]
- Lubrication: Lubricated operation possible
- Corrosion Resistance Class: 0 - No corrosion stress
- Conformity: VDMA24364-B2-L lABS (PWIS)
- Impact Energy in End Positions: 0.1NM
- Max. Force Fy: 390N
- Max. Force Fz: 390N
- Max. Moment Mx: 3.1NM
- Max. Moment My: 3.1NM
- Max. Moment Mz: 1.4NM
- Theoretical Force at 0.6 MPa (6 bar, 87 psi), Return Stroke: 104N
- Theoretical Force at 0.6 MPa (6 bar, 87 psi), Advance Stroke: 121N
- Moving Mass: 153G
- Product Weight: 407G
- Basic Weight for 0 mm Stroke: 407G
- Type of Mounting: With through-hole
- Material - Cover: Wrought aluminium alloy
- Material - Seals: HNBR
- Material - Housing: Wrought aluminium alloy
- Material - Piston Rod: High-alloy stainless steel
- Ambient Temperature: -20°C to 60°C
- Pneumatic Connection: M5
New:

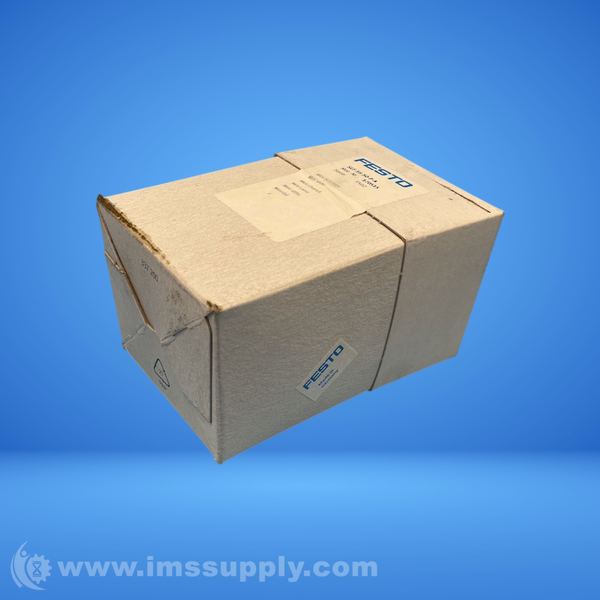

A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable).
