FESTO VABF-S2-2-R4C2-C-6 REGULATOR PLATE
Quick Overview
Manufactured By: FESTO
Manufacturer Part Number: VABF-S2-2-R4C2-C-6
IMS Product Code: 1876516
Packaging: Sold Individually
Description:

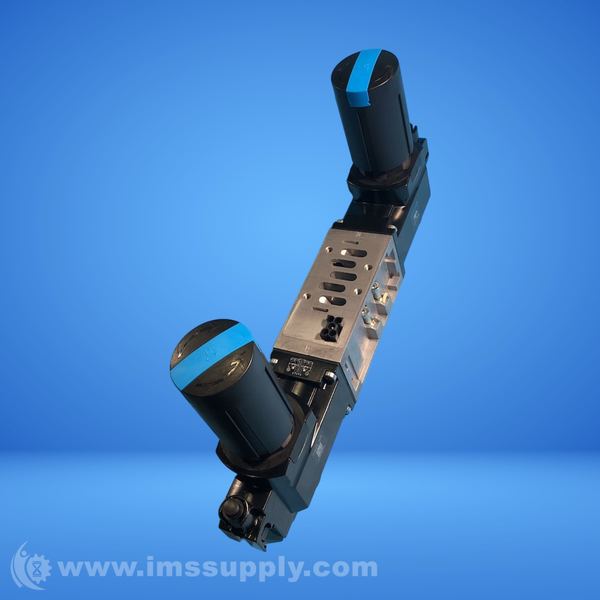

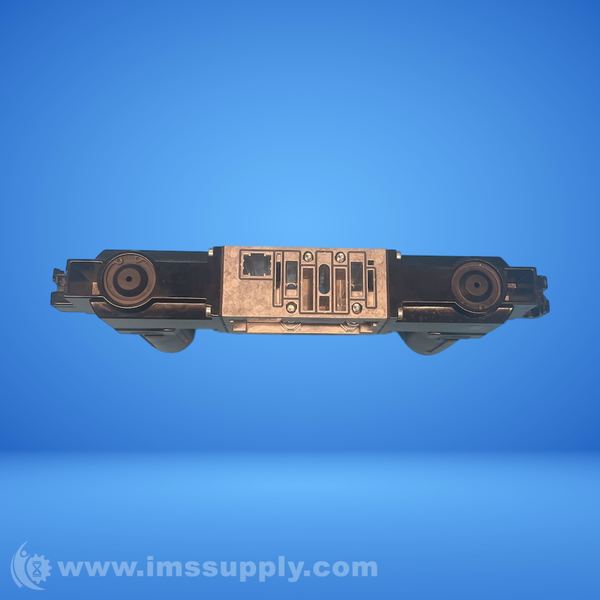

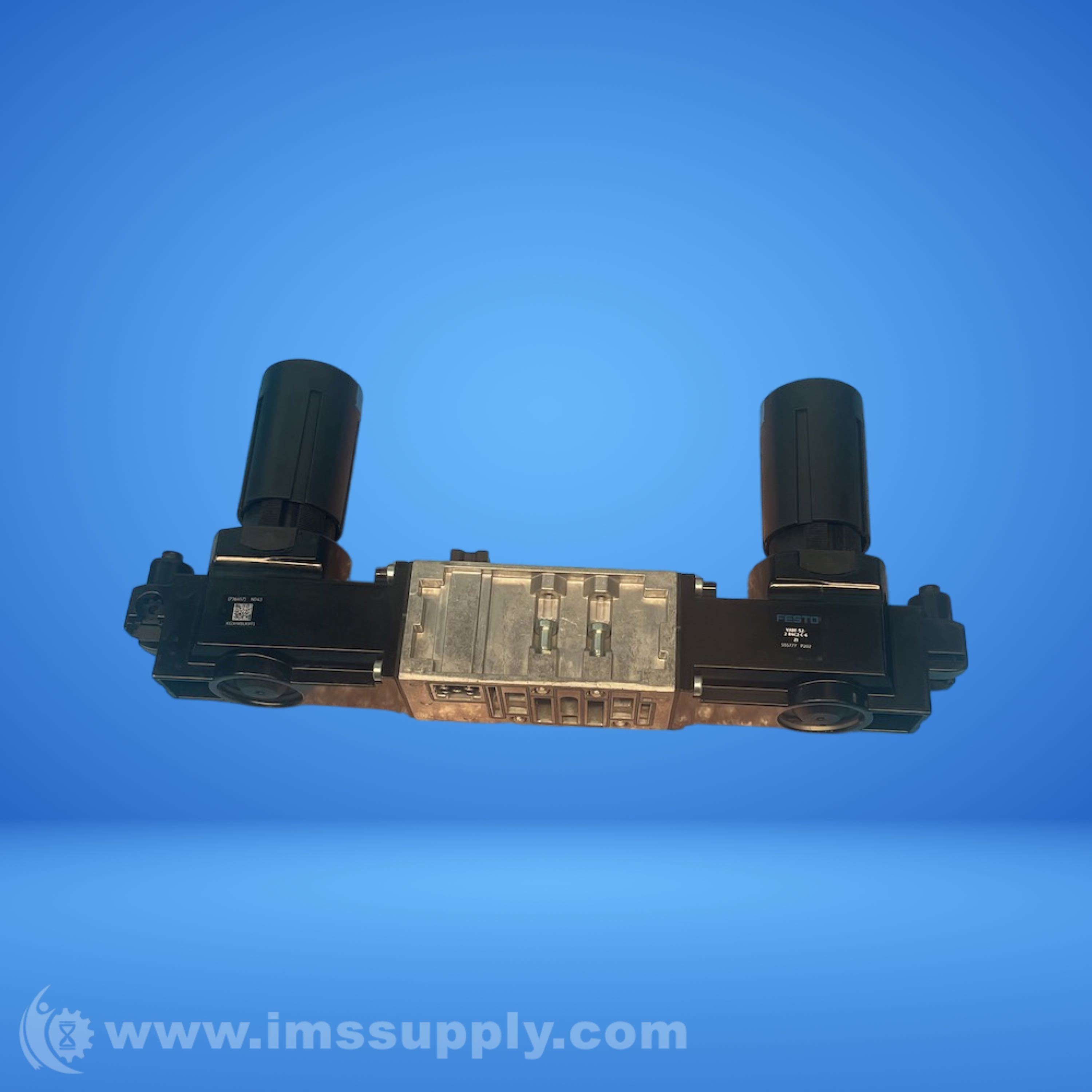

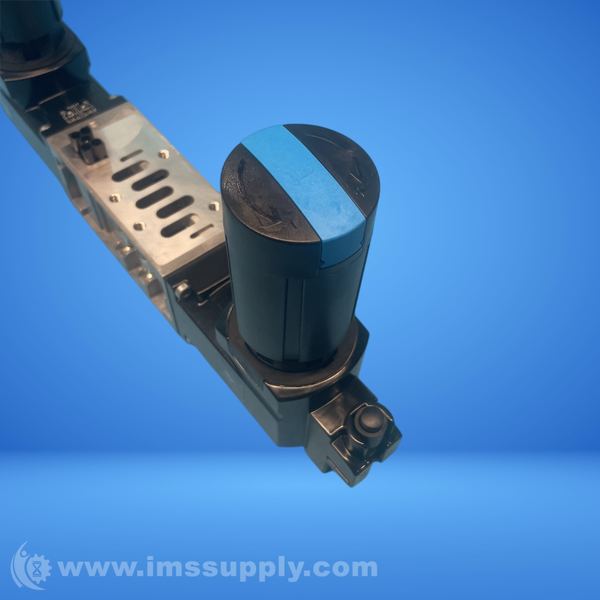

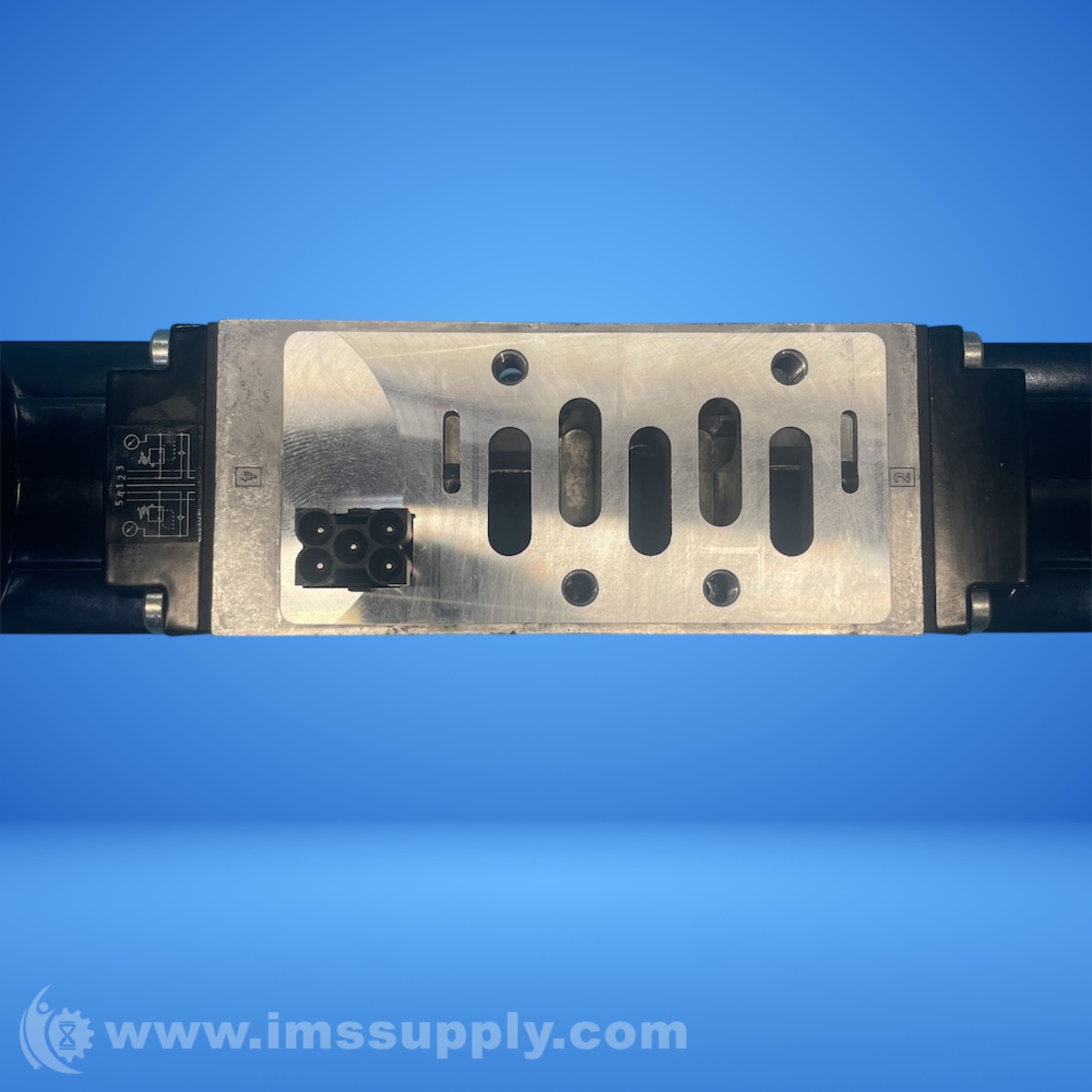

Festo VABF-S2-2-R4C2-C-6 Regulator Plate
Pneumatic regulator plate with output pressure constant controller function and secondary venting. Suitable for ISO valves 5599-2.
Specifications
- construction width: 54MM
- standard: ISO 5599-2
- mounting position: Optional
- pressure regulator for: 2 and 4 vertical pneumatic linkage
- controller function: Output pressure constant controller function
- secondary venting controller function: With secondary venting controller function
- symbol: 991935
- pressure regulation range: 0.1MPA, 0.6MPA, 1BAR, 6BAR, 14.5PSI, 87PSI
- inlet pressure 1: 0.5BAR, 10BAR, 0.05MPA, 1MPA, 7.25PSI, 145PSI
- operating medium: Compressed air to ISO 8573-1:2010 [7:4:4]
- lubricated operation: possible
- corrosion resistance class: 0 - No corrosion stress
- lABS (PWIS) conformity: VDMA24364-B1/B2-L
- degree of protection: IP65, NEMA 4
- product weight: 1990G
- mounting type: On manifold sub-base mounting with vertical stacking, On individual sub-base mounting with vertical stacking
- pressure gauge connection: Via retaining clamp
- material control panel: PA
- material regulator housing: Die-cast aluminium
- ambient temperature: -5°C to 50°C
- RoHS-compliant: note on materials
- series: VABF
- suitable for use with: For ISO Valves 5599-2
- specifications: 0.5 to 10 bar pressure, -5 to 50 deg C
- material: PA and Aluminum Die Cast
- finish: Conforms to ROHS
- dimensions: 54 mm W
