FESTO VMPA1-B8-R3C2-C-06 REGULATOR PLATE
Quick Overview
Manufactured By: FESTO
Manufacturer Part Number: VMPA1-B8-R3C2-C-06
IMS Product Code: 2161417
Packaging: Sold Individually
Description:

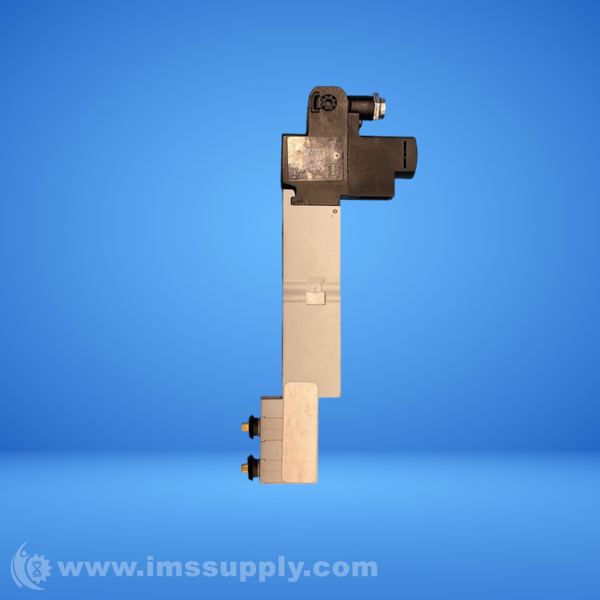

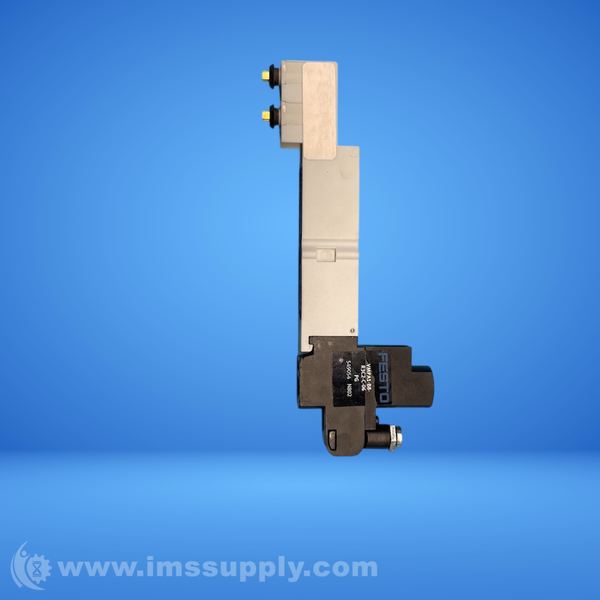

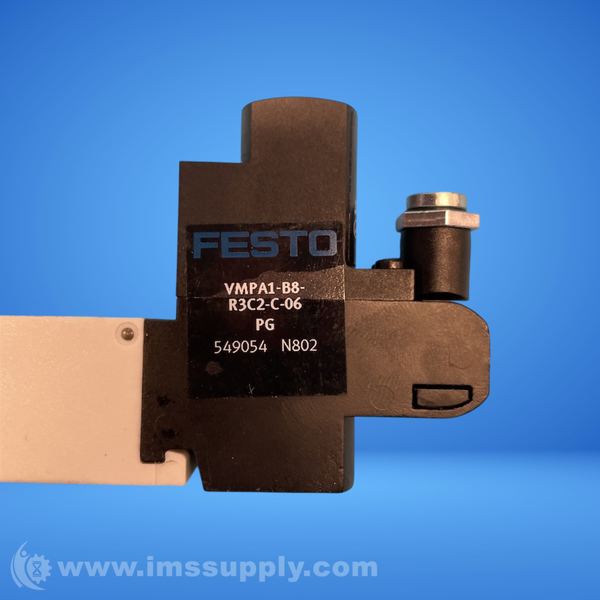

Festo VMPA1-B8-R3C2-C-06 Regulator Plate
Regulator plate for pneumatic systems, part of Festo VMPA1 series.
Specifications
- Type: Universal valve modules
- Series: VMPA1/2/14
- Product weight: 73.8 g
- Material information: RoHS compliant
- Corrosion resistant class KBK: 1 - low corrosion stress
- Ambient temperature: -5 to 50 degrees C
- Build width: 10.5 mm
- Installation position: arbitrary
- Pneumatic height linking: pressure regulator for 4
- Controller function: Output pressure constant, With relieving
- Pressure regulation range: 2 to 6 bar
- Input pressure 1: 0.5 to 10 bar
- Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4]
- Protection category: IP65
- Max. tightening torque: 0.25 Nm
- Pressure gauge connection: M5
- Control panel material: PA
- Seals material: NBR
- Controller housing material: PA
- Country of Origin: Germany
New - Missing Box (Special):

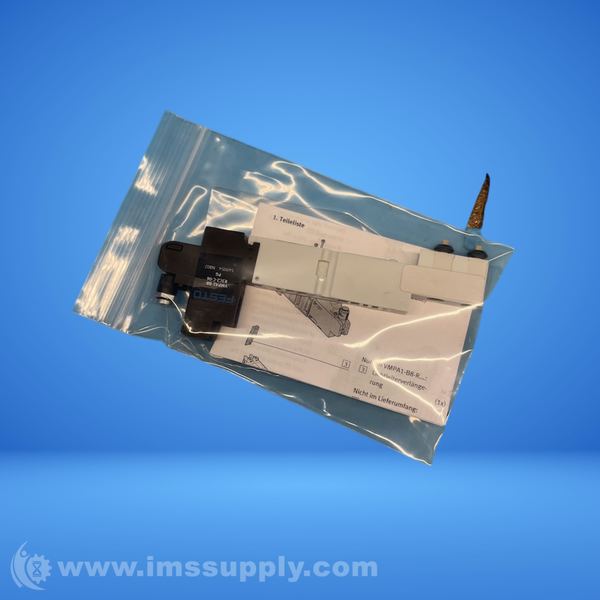

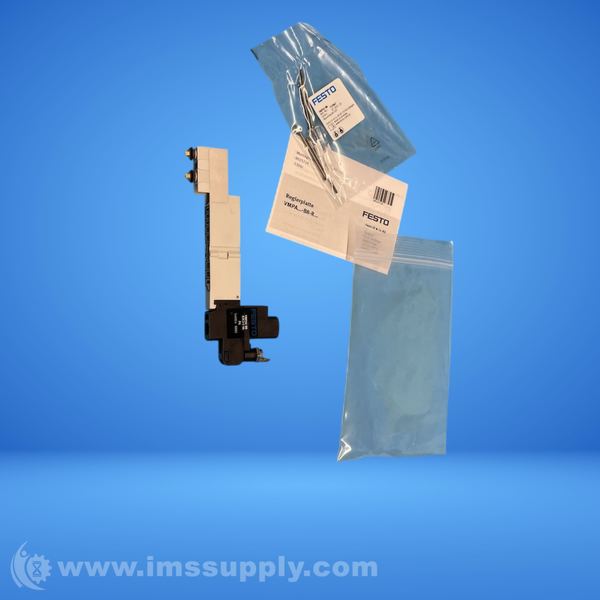

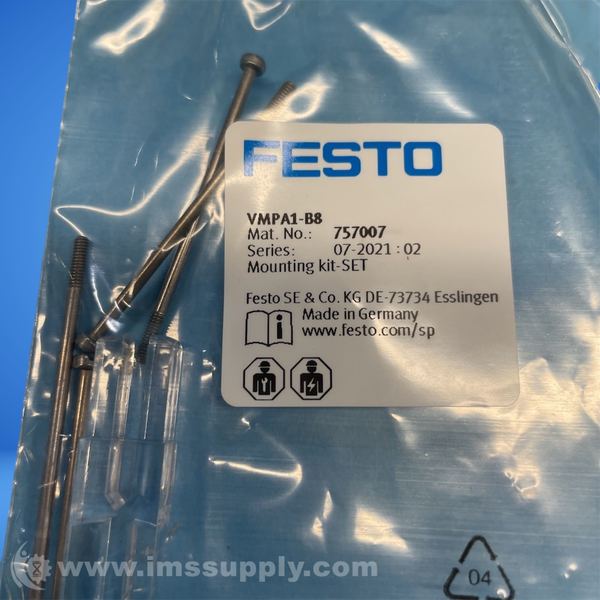

Comes with a parts bag that has same MPN on it. Also has the manual with it as well.
Availability: 11 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
