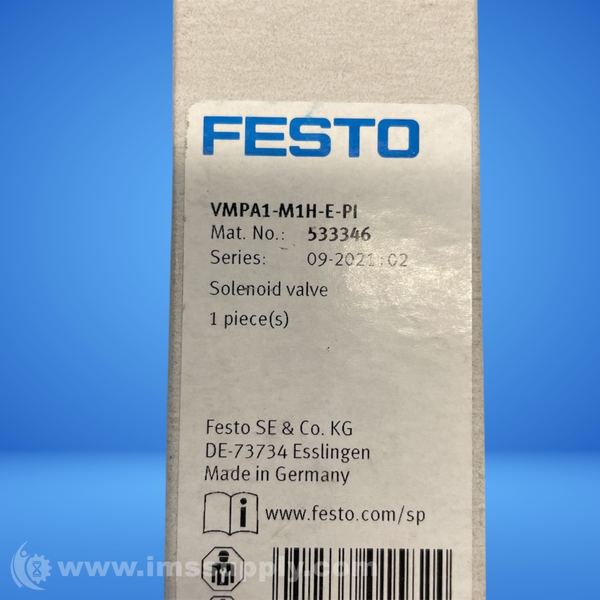

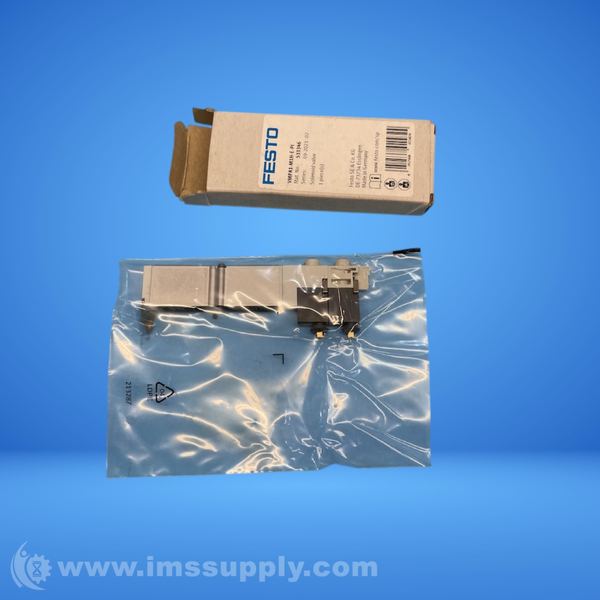

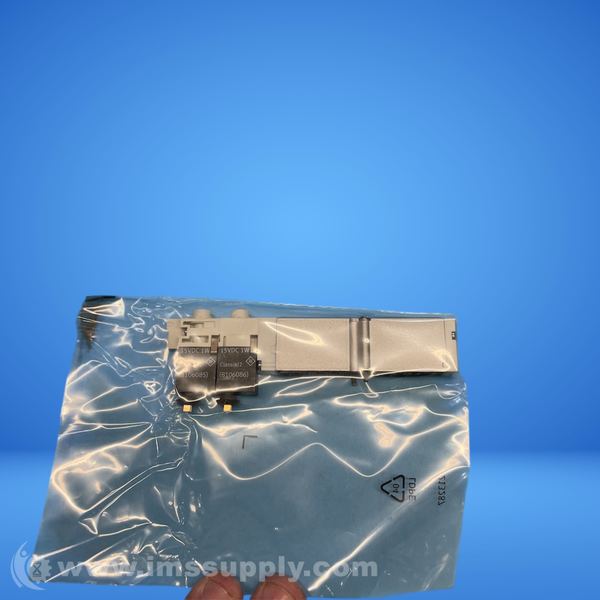

FESTO VMPA1-M1H-E-PI SOLENOID VALVE
Quick Overview
Manufactured By: FESTO
Manufacturer Part Number: VMPA1-M1H-E-PI
IMS Product Code: 2161424
Packaging: Sold Individually
Description:
Festo VMPA1-M1H-E-PI Solenoid Valve
10mm wide solenoid valve with 5/3-way valve function.
Specifications
- Valve Function: 5/3 exhausted
- Actuation Type: Electric
- Valve Size: 10MM
- Nominal Flow Rate: 240L2
- Operating Pressure: -0.09MPA to 1MPA, -0.9BAR to 10BAR
- Valve Design: Piston gate
- Reset Type: Mechanical spring
- Approval: C UL us - Recognized (OL)
- Protection Degree: IP65 to IEC 60529
- Sealing Principle: Soft sealing
- Mounting Position: Optional
- Manual Override: Detenting and non-detenting
- Piloting Type: Pilot actuated
- Flow Direction: Reversible
- Signal Status Display: Yes
- Pilot Pressure: 0.3MPA to 0.8MPA, 3BAR to 8BAR
- Suitability for Vacuum: Yes
- Switching Time Off: 35MS
- Switching Time On: 10MS
- Switching Time Reversal: 15MS
- Max Positive Test Pulse: 400MIS
- Max Negative Test Pulse: 200MIS
- Permissible Voltage Fluctuations: +/- 25%
- Operating Medium: Compressed air to ISO 8573-1:2010 [7:4:4]
- Lubricated Operation: Possible
- Vibration Resistance: To FN 942017-4 and EN 60068-2-6
- Shock Resistance: To FN 942017-5 and EN 60068-2-27
- Corrosion Resistance Class: 1 - Low
- LABS Conformity: VDMA24364-B1/B2-L
- Media Temperature: -5GC to 50GC
- Relative Air Humidity: Max. 90% at 40°C
- Tightening Torque: 0.25NM
- Product Weight: 56G
- Mounting Type: With through-hole
- Material Seals: NBR
- Material Housing: Die-cast aluminium
- Ambient Temperature: -5GC to 50GC
- Storage Temperature: -20GC to 40GC
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 87 In Stock
Ships today if ordered in the next 2 hours and 14 minutes.
