FESTO VMPA1-M1H-K-PI SOLENOID VALVE
Quick Overview
Manufactured By: FESTO
Manufacturer Part Number: VMPA1-M1H-K-PI
IMS Product Code: 1867213
Packaging: Sold Individually
Description:

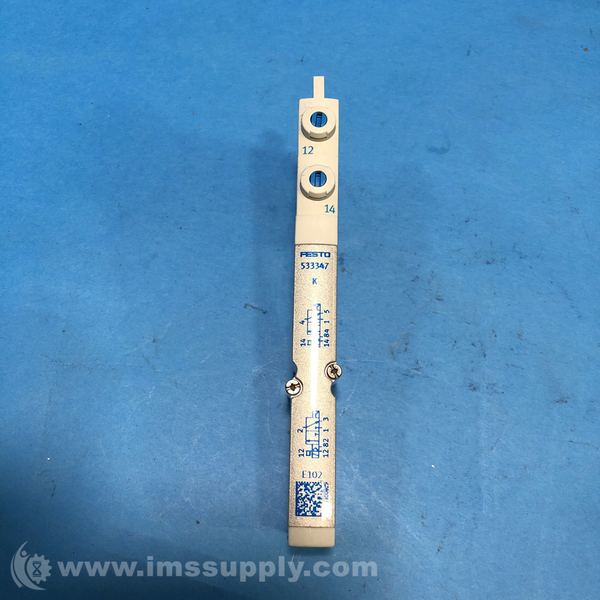

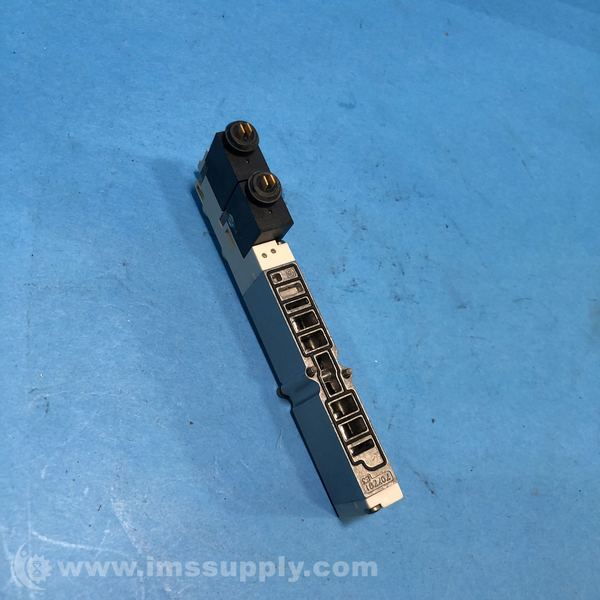

Festo VMPA1-M1H-K-PI Solenoid Valve
Festo solenoid valve with 2x 3/2-way valve function, 10mm wide, PROFINET communication, 24V DC operating voltage
Specifications
- type: Valve Terminal
- communication: PROFINET
- electrical connection: Plug
- operating voltage: 24V DC
- operating pressure: -0.9 ... 8 bar
- protection class: IP65
- valve size: 10MM
- valve function: 2x3/2-way, monostable, closed
- actuation type: Electric
- nominal flow rate: 230L2
- reset type: Pneumatic spring
- approval: C UL us - Recognized (OL)
- sealing principle: Soft sealing
- manual override: Detenting, Non-detenting
- piloting type: Pilot actuated
- flow direction: Non-reversible
- signal status display: Yes
- switching time off: 20MS
- switching time on: 10MS
- max positive test pulse: 400MIS
- max negative test pulse: 200MIS
- permissible voltage fluctuations: +/- 25%
- operating medium: Compressed air to ISO 8573-1:2010 [7:4:4]
- lubricated operation: Possible
- vibration resistance: Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6
- shock resistance: Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27
- corrosion resistance class: 1 - Low corrosion stress
- lABS conformity: VDMA24364-B1/B2-L
- media temperature: -5GC to 50GC
- relative air humidity: Max. 90% at 40°C
- tightening torque: 0.25NM
- product weight: 56G
- mounting type: With through-hole
- material seals: NBR
- material housing: Die-cast aluminium
- ambient temperature: -5GC to 50GC
- storage temperature: -20GC to 40GC
New:

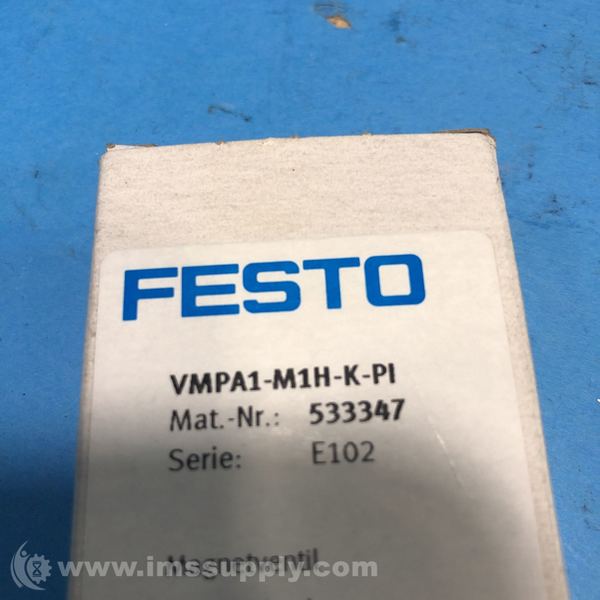

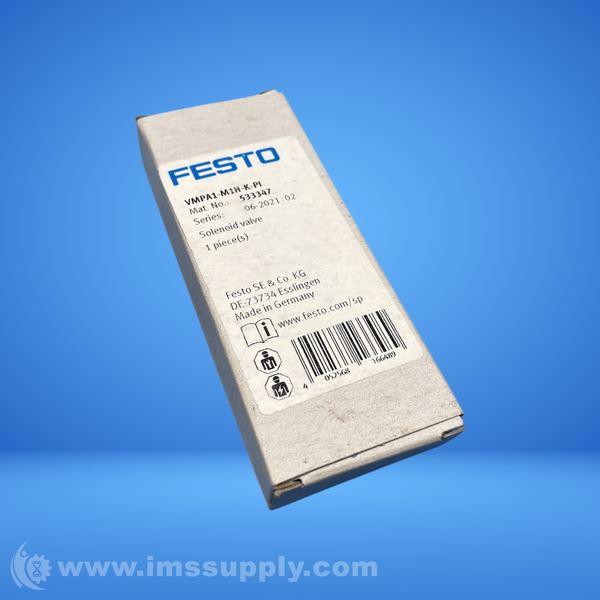

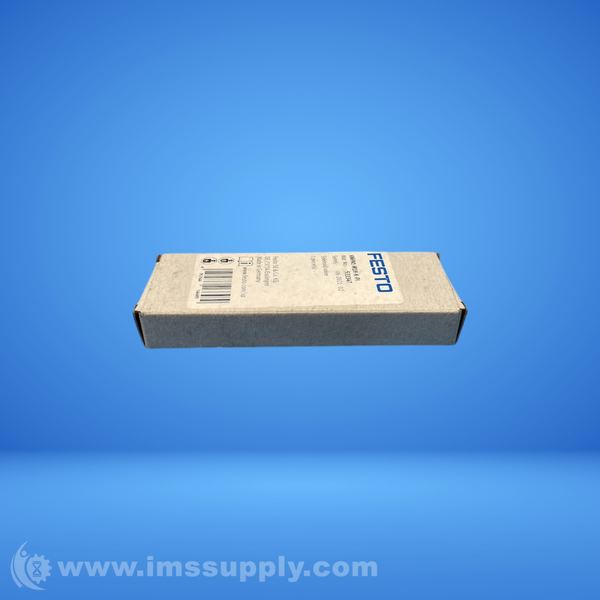

A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable).
Availability: 2 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
