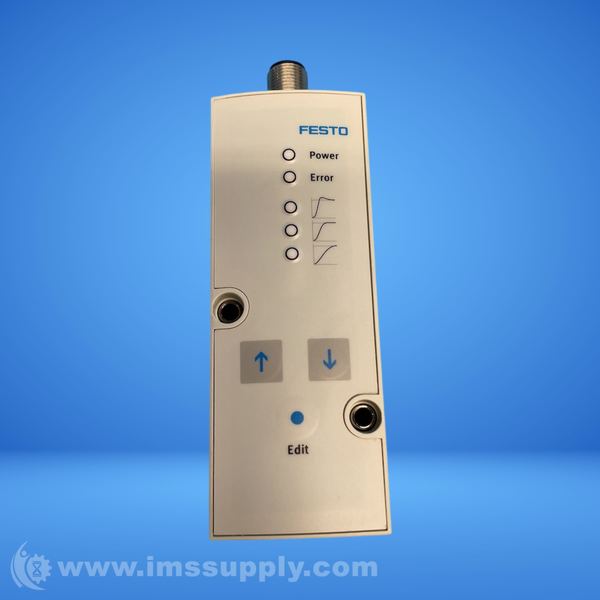

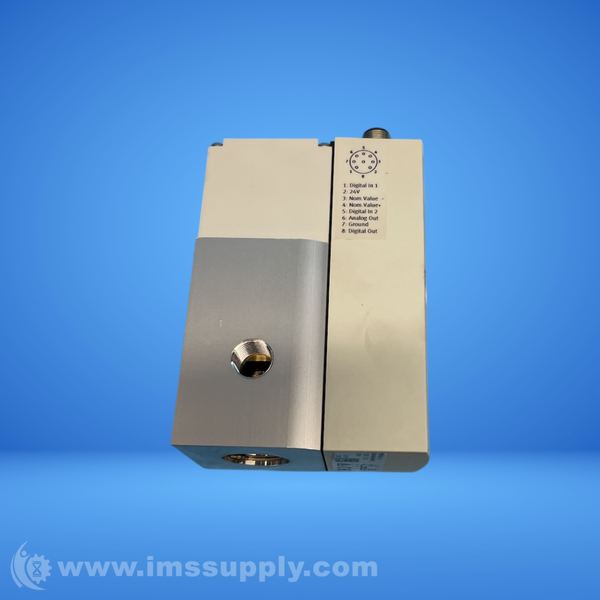

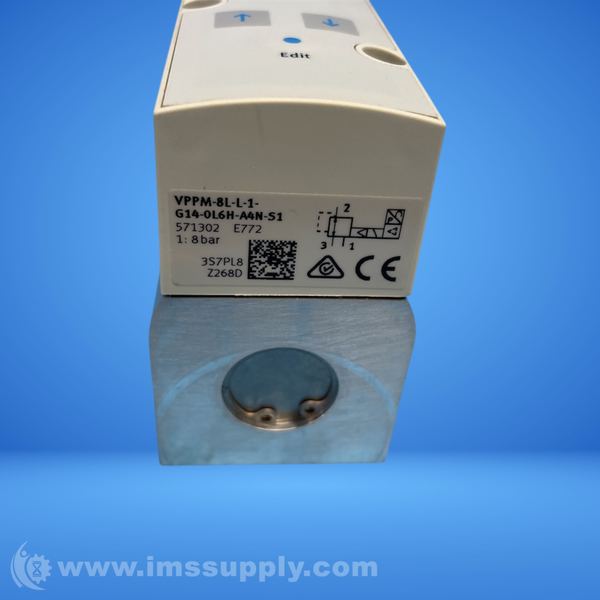

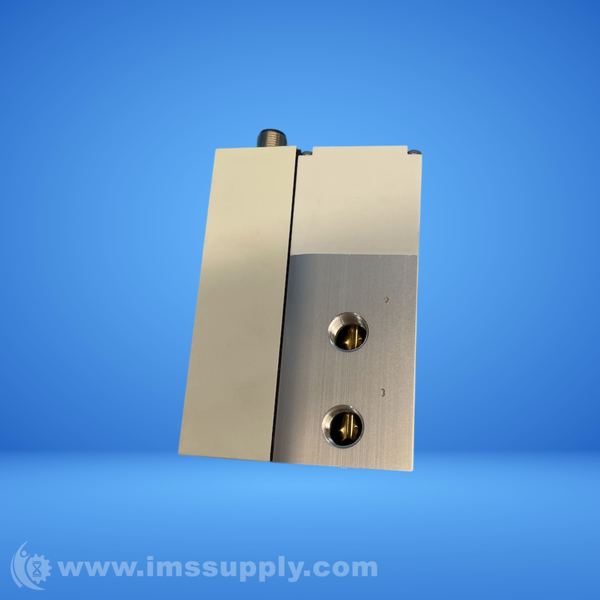

FESTO VPPM-8L-L-1-G14-0L6H-A4N-S1 PROPORTIONAL PRESSURE REGULATOR
Quick Overview
Manufactured By: FESTO
Manufacturer Part Number: VPPM-8L-L-1-G14-0L6H-A4N-S1
IMS Product Code: 2122327
Packaging: Sold Individually
Description:
Festo VPPM-8L-L-1-G14-0L6H-A4N-S1 Proportional Pressure Regulator
Proportional pressure regulator with electrical actuation, soft sealing, and piloted diaphragm design. 3-way configuration with G1/4 ports, 0.6 to 6 bar pressure range, and 1750 lpm flow rate. Wrought aluminum alloy body with anodized finish.
Specifications
- Nominal Size: 8 mm
- Port Size: G1/4
- Pressure Rating: 0.6 to 6 bar
- Temperature Rating: 0 to 60 deg C
- Flow Rate: 1750 lpm
- Port Type: Female
- Type of Actuation: Electric
- Sealing Principle: Soft sealing
- Mounting Position: Optional
- Regulator Design: Piloted diaphragm
- Valve Function: 3-way proportional pressure regulator
- Operating Medium: Compressed air to ISO 8573-1:2010 [7:4:4], Inert gases
- Degree of Protection: IP65
- Product Weight: 560 g
- Electrical Connection: 8-pin, M12
- Material Housing: Wrought aluminium alloy, Anodised
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 1 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
