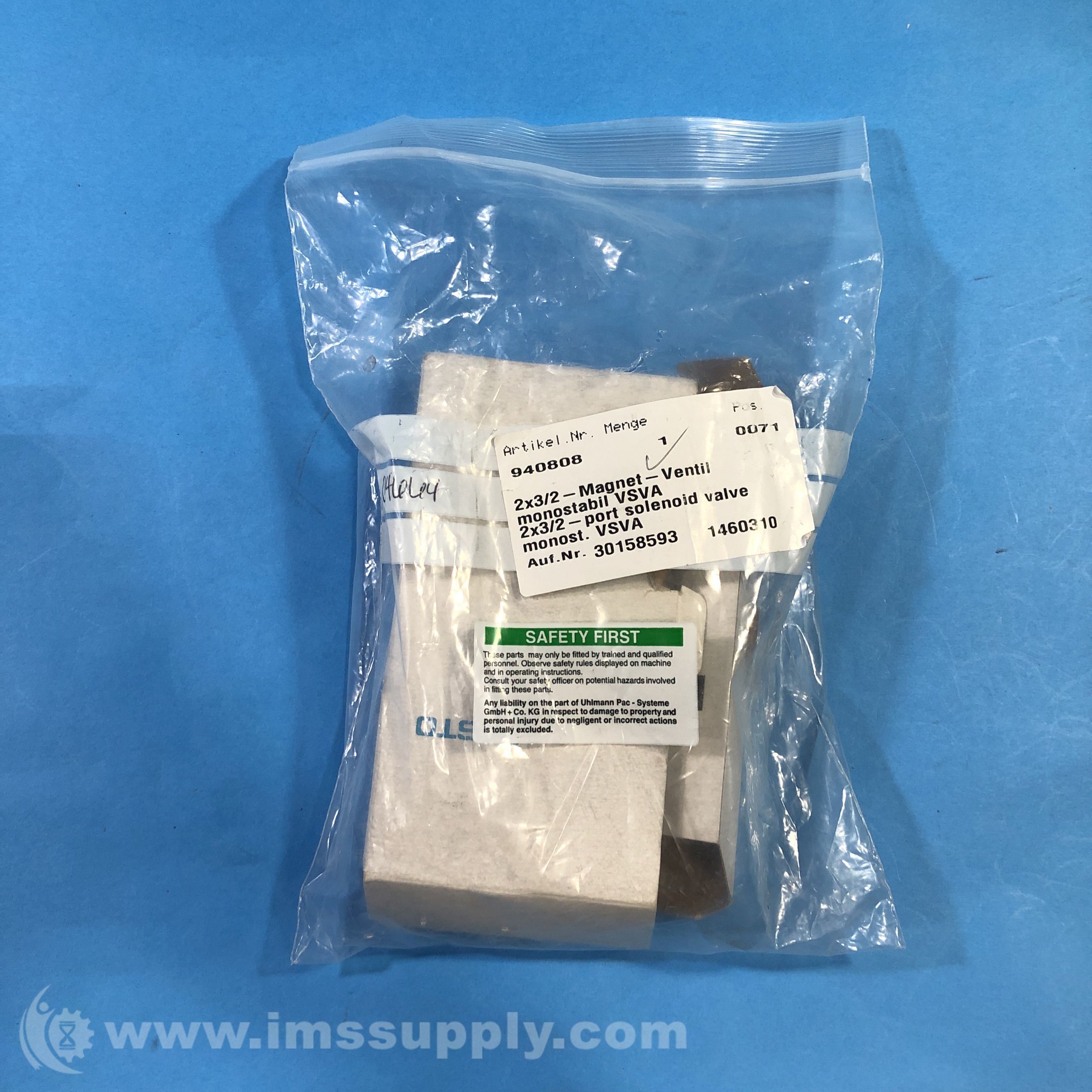

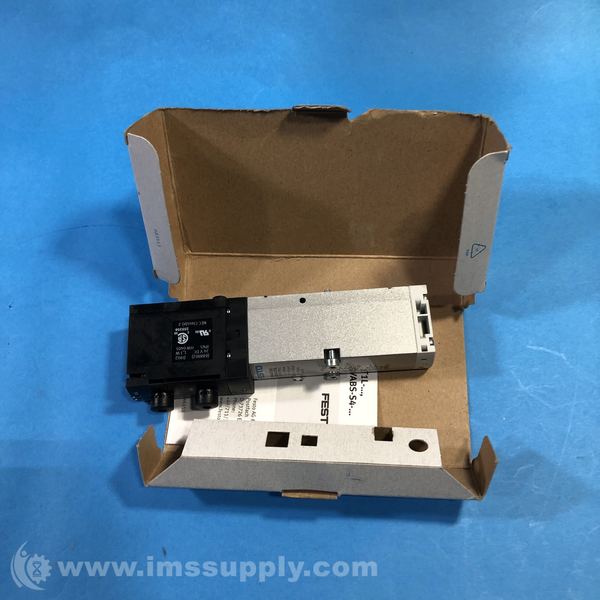

FESTO VSVA-B-T32C-AZD-A1-1T1L SOLENOID VALVE
Quick Overview
Manufactured By: FESTO
Manufacturer Part Number: VSVA-B-T32C-AZD-A1-1T1L
IMS Product Code: 1910638
Packaging: Sold Individually
Description:
Festo VSVA-B-T32C-AZD-A1-1T1L Solenoid Valve
Electric actuation type solenoid valve with Piston spool and 2x3/2-way valve, normally closed.
Specifications
- Construction width: 26MM
- Nominal flow rate: 900L2
- Operating pressure: 0.3MPA, 1MPA, 3BAR, 10BAR
- Valve design: Piston gate valve
- Degree of protection: IP65, NEMA 4
- Manual override: Detenting, Non-detenting, Covered
- Pilot actuated type: Pilot actuated
- Flow direction: Non-reversible
- Signal status display: LED
- Pilot pressure: 0.3MPA, 1MPA, 3BAR, 10BAR
- Switching time off: 38MS
- Switching time on: 20MS
- Duty cycle: 100%
- Max. current consumption: 60MA
- Nominal operating voltage: 24V DC
- Characteristic coil data: 24 V DC: 1.3 W
- Immunity to surge: 2.5KV
- Pollution degree: 3
- Permissible voltage fluctuations: +/- 10 %s
- Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4]
- Lubricated operation: Possible
- Vibration resistance: Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6
- Shock resistance: Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27
- Corrosion resistance class: 0 - No corrosion stress
- Relative air humidity: 0 - 90%
- Product weight: 335G
- Electrical connection: Plug-in electrical connection, To ISO 15407-2
- Mounting type: On sub-base
- Sub-base size: 26 mm to ISO 15407-2
- Pneumatic connection: Sub-base size 26 mm to ISO 15407-2, port 1, 2, 3, 4, 5
- Material seals: FPM, HNBR, NBR
- Material housing: Die-cast aluminium, PA
- Material screws: Galvanised steel
- Ambient temperature: -5GC to 50GC
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 3 In Stock
Ships today if ordered in the next 9 hours and 44 minutes.
New - Missing Box (Special):
ATTACHMENT MFG: FESTO PN: VABV-S4-1S-G14-2T2
Availability: 1 In Stock
Ships today if ordered in the next 9 hours and 44 minutes.
New - Missing Box (Special):
ATTACHMENT WITH SAME MFG AND PN AND THEN ONE WITH SAME MFG AND PN: VAVA-S6-1-X2
Availability: 1 In Stock
Ships today if ordered in the next 9 hours and 44 minutes.
New - Missing Box (Special):
HAS 2 ATTACHMENTS WITH SAME PN AND MFG. ALSO HAS ATTACHMENT MFG: FESTO PN: VSVA-B-P53U-ZD-A1-1T1L (x2), MFG: FESTO PN: VABA-S6-1-X2, MFG: UNKNOWN PN:CPX-M-GE-EV-S-7/8-5POL, MFG: UNKNOWN PN:CPX-FB33
Availability: 1 In Stock
Ships today if ordered in the next 9 hours and 44 minutes.
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 9 In Stock
Ships today if ordered in the next 9 hours and 44 minutes.
