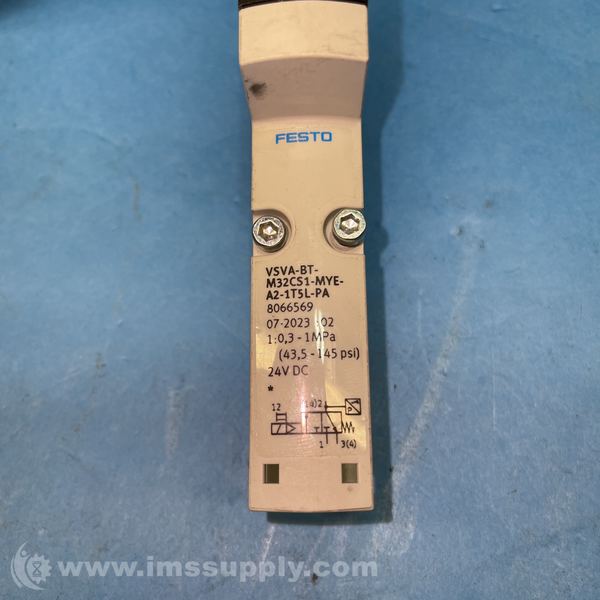

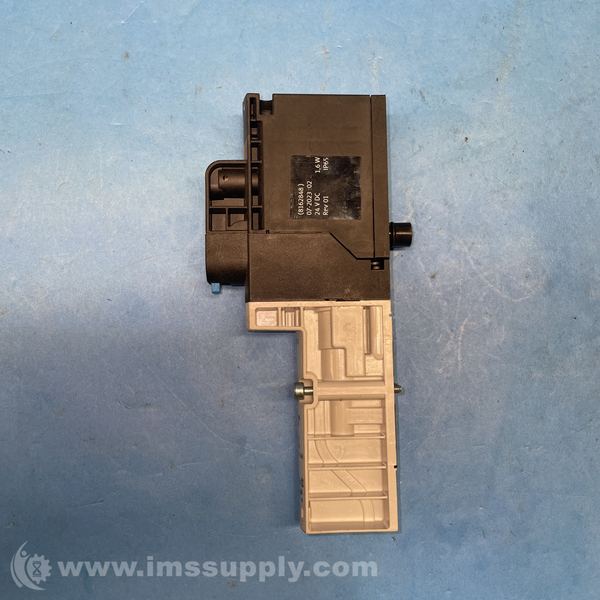

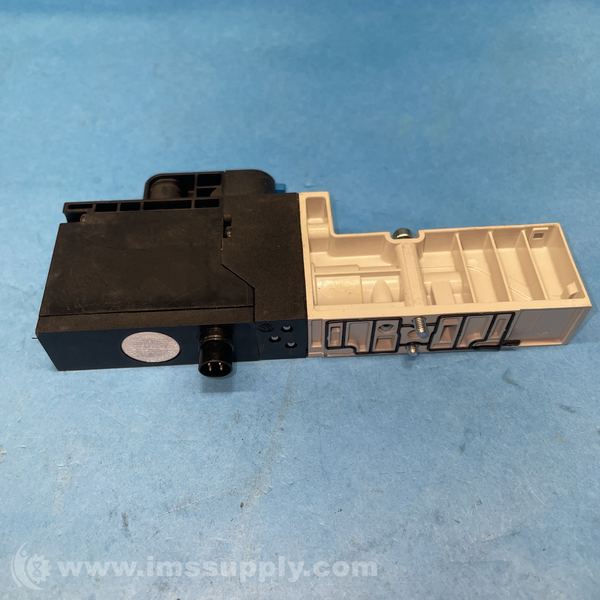

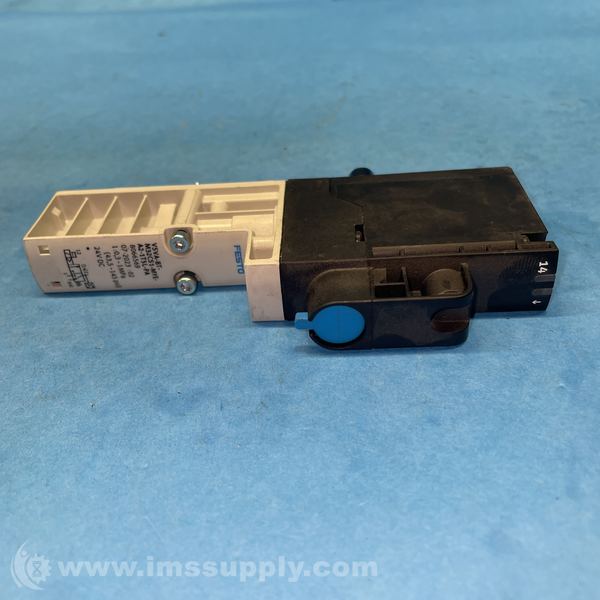

FESTO VSVA-BT-M32CS1-MYE-A2-1T5L-PA 3/2 WAY VALVE
Quick Overview
Manufactured By: FESTO
Manufacturer Part Number: VSVA-BT-M32CS1-MYE-A2-1T5L-PA
IMS Product Code: 2135599
Packaging: Sold Individually
Description:
Festo VSVA-BT-M32CS1-MYE-A2-1T5L-PA 3/2 Way Valve
Festo 3/2 way valve, monostable, electrical actuation, 24V DC
Specifications
- Valve Function: 3/2, closed, monostable
- Lap: Underlap
- Standard Nominal Flow Rate: 150 l/min
- Actuation Type: Electrical
- Width: 18 mm
- Operating Pressure: 3 bar ... 10 bar
- Design: Plate seat
- Reset Method: Mechanical spring
- Degree of Protection: IP65
- Type Code: VSVA
- Sealing Principle: Soft
- Mounting Position: Any
- Manual Override: Detenting
- Type of Control: Pilot-controlled
- Pilot Air Supply Port: Internal
- Flow Direction: Non-reversible
- Switching Position Sensing: Switching position with sensor
- Duty Cycle: 100%
- Nominal Operating Voltage DC: 24 V
- Coil Characteristics: 24 V DC: 1.6 W
- Permissible Voltage Fluctuations: +/- 10 %
- Operating Medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on Operating and Pilot Media: Operation with oil lubrication not possible
- Vibration Resistance: Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6
- Shock Resistance: Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
- Corrosion Resistance Class (CRC): 0 - No corrosion stress
- Temperature of Medium: -5 degrees C ... 50 degrees C
- Pilot Medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
- Ambient Temperature: -5 degrees C ... 50 degrees C
- Product Weight: 110 g
- Electrical Connection: Plug-in
- Type of Mounting: On sub-base
- Pneumatic Connection 2: G1/8
- Pneumatic Connection 4: G1/8
- Note on Materials: RoHS-compliant
- Seals Material: HNBR
- Housing Material: PA-reinforced
- Material of Screws: Steel, galvanized
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 6 In Stock
Ships Tomorrow
