FESTO VTSA-F-CB VALVE TERMINAL
Quick Overview
Manufactured By: FESTO
Manufacturer Part Number: VTSA-F-CB
IMS Product Code: 2161004
Packaging: Sold Individually
Description:

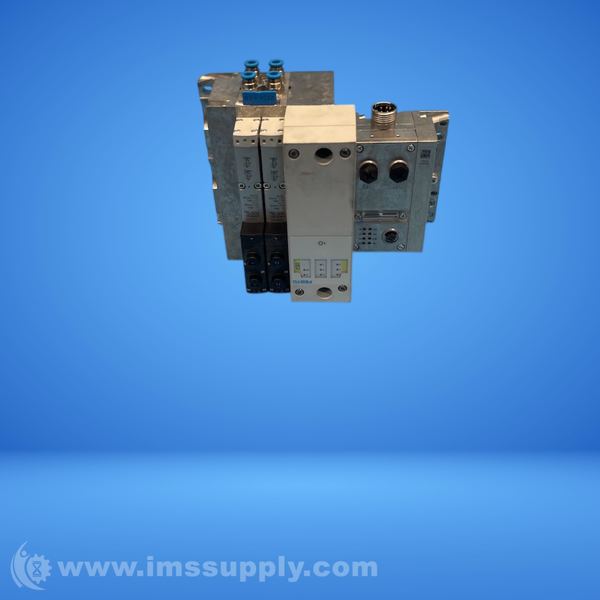

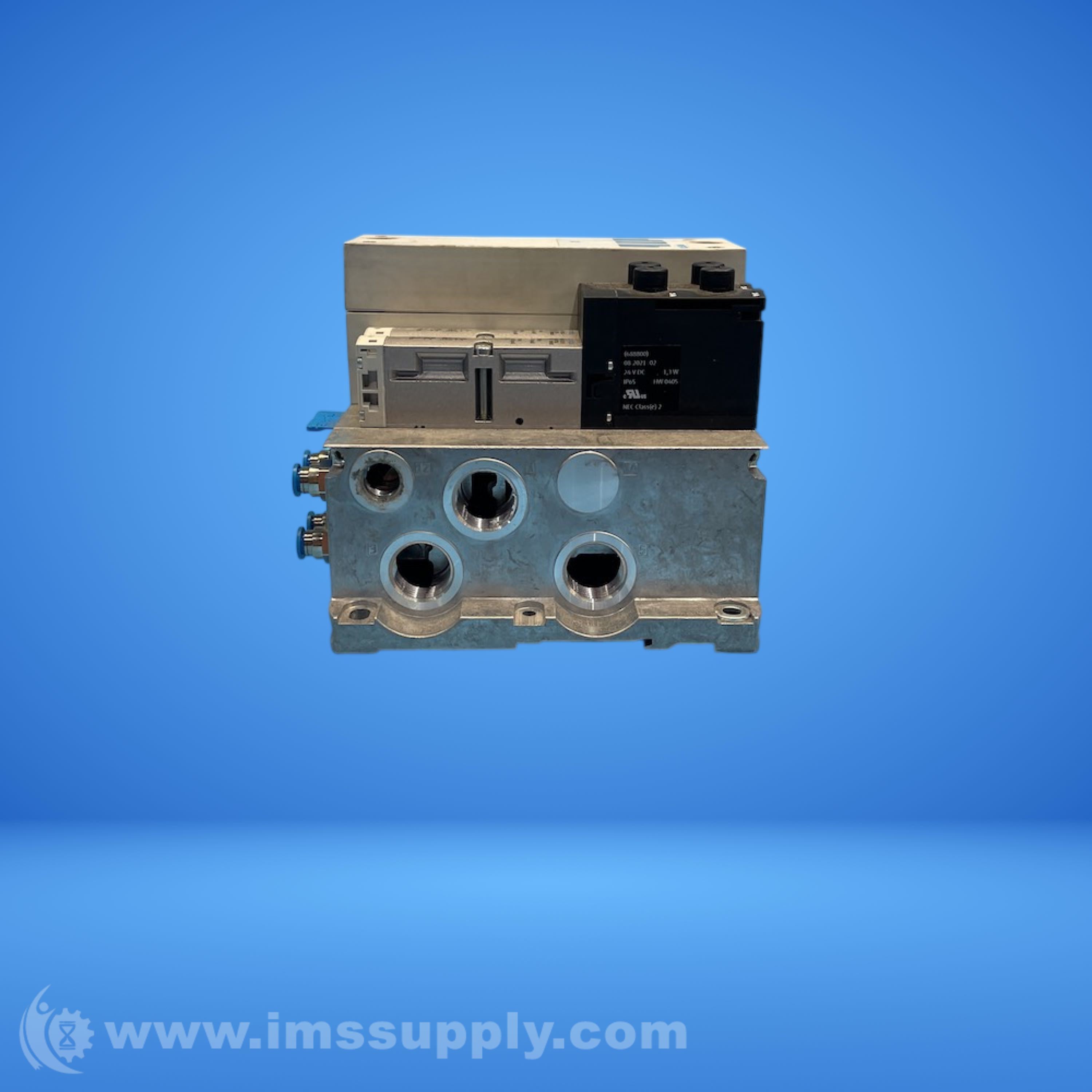

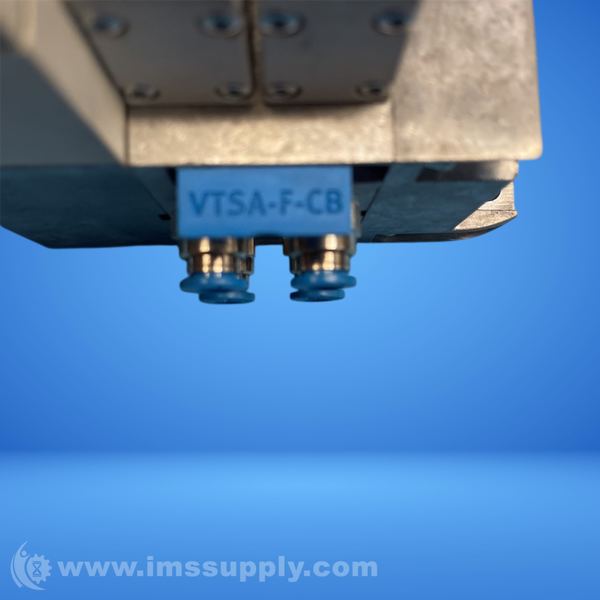

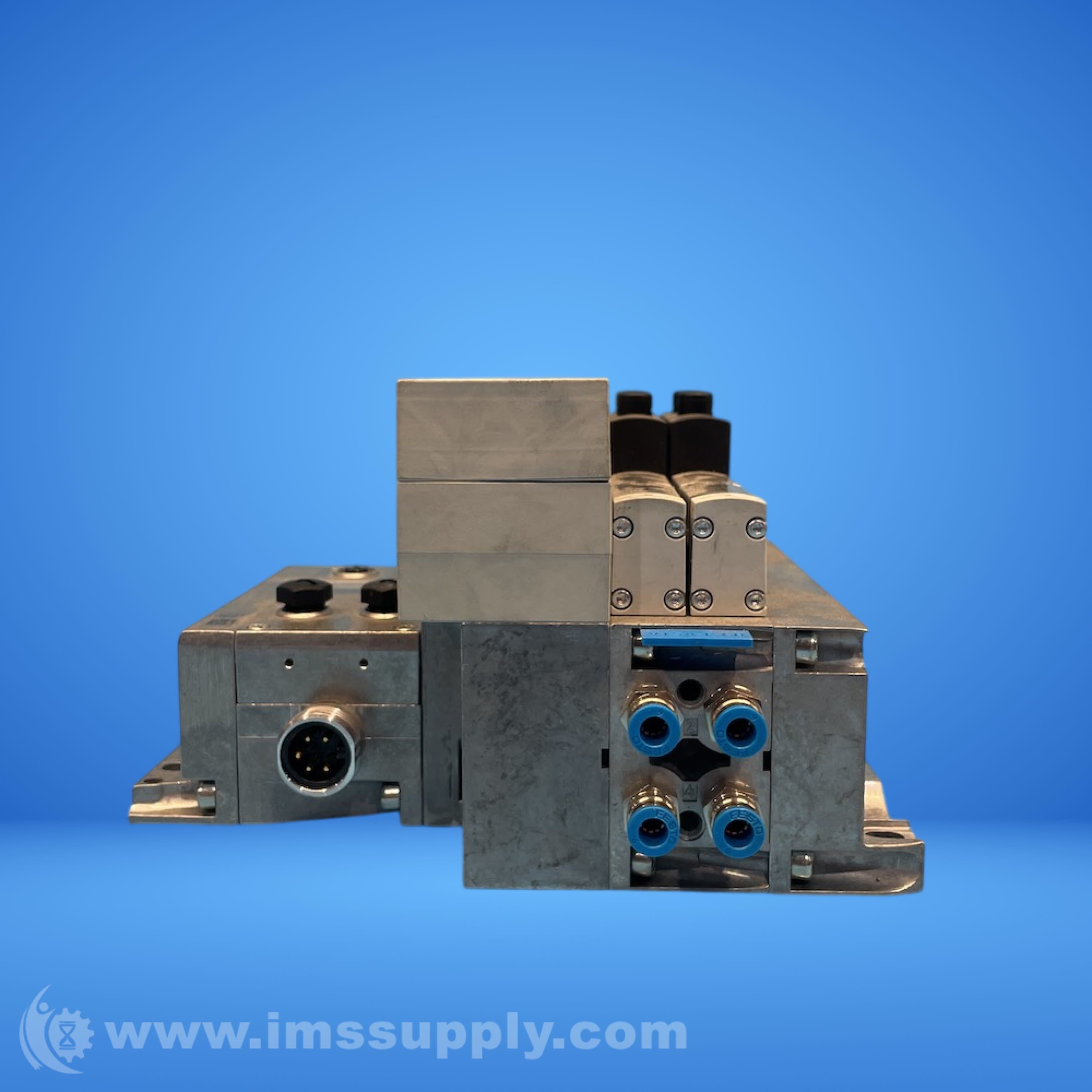

Festo VTSA-F-CB Valve Terminal
Festo VTSA-F-CB series Valve Manifolds feature high-performance valves housed within durable metal casings. These valve terminals embody a standardized design, seamlessly transitioning from multi-pin plug connections to Fieldbus integration and control block. This modular system empowers users with extensive configuration possibilities, accommodating up to 24 solenoid coils, flexible air distribution, and customizable pressure zones.
Specifications
- Manufacturer: Festo
- Type: VTSA-F-CB
- Serial Communication: In the pneumatic part
- Maximum Voltage Zones: 7
- Solenoid Coils per Voltage Zone: Up to 24
- Valve Positions: Up to 96
- Interlinking Blocks per Valve Terminal: Up to 64
- Internal Bus System: allows users to actuate up to 96 valve addresses, in four zones, on one valve terminal and one fieldbus node
- Valve Mixing: can mix 18 mm and 26 mm valves on the same manifold
- CPX/Pneumatic Interfaces: four interfaces: basic interface when safety control is not required, two integrated PROFIsafe versions, and a version that makes it possible for an external safety fieldbus module to directly control three pneumatic safety zones
- Configuration Options: include a pilot air switching valve, and a safety soft start/quick exhaust valve
- Air Saving Feature: with ejector pulse
- Communications: serial and parallel
- Valve Addresses: up to 96
- Zones: four
- CPX Pneumatic Interfaces: four different versions
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 2 In Stock
