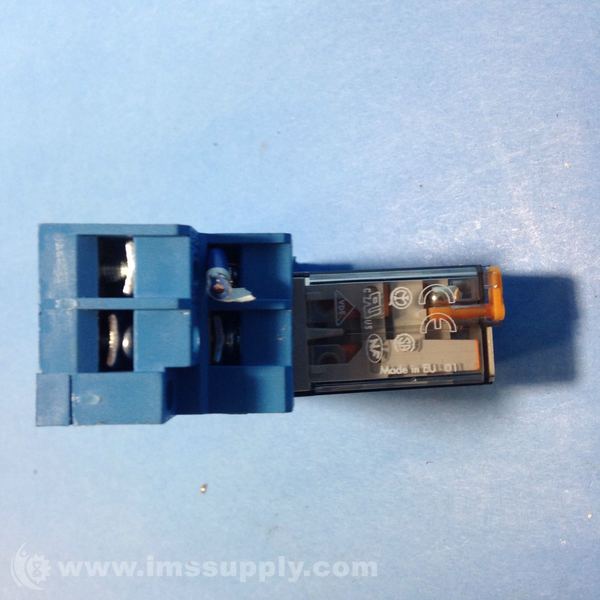

FINDER 56.32.8.120.0040 MINIATURE ELECTROMECHANICAL PLUG-IN POWER RELAY
Quick Overview
Manufactured By: FINDER
Manufacturer Part Number: 56.32.8.120.0040
IMS Product Code: 1748785
Packaging: Sold Individually
Description:
Finder 56.32.8.120.0040 Miniature Electromechanical Plug-in Power Relay
Miniature electromechanical plug-in power relay with mechanical indicator and lockable test button, featuring 2 poles (DPDT) contacts rated for 12A at 250Vac (AC-1). Control coil operates at 120Vac (50/60Hz). Contacts are AgNi coated. Fast-on 187 connections.
Specifications
- Rated Current: 12A (250Vac; AC-1), 12A (30Vdc; DC-1)
- Rated Power: 700VA (230Vac; AC-15), 3000VA (250Vac; AC-1)
- Control Voltage: 120Vac (50Hz/60Hz)
- Poles: 2 Pole(s) DPDT
- Connection Type: Fast-on 187
- Mounting Mode: Plug-in
- Contacts Coating: AgNi (Silver Nickel)
- Rated Impulse Voltage (Uimp): 4 kV
- Ambient Air Temperature Range: -40...+70 degrees C
- Electrical Durability (with load): 100,000 operations
- Mechanical Durability (at no load): 20,000,000 operations
Used (Special):

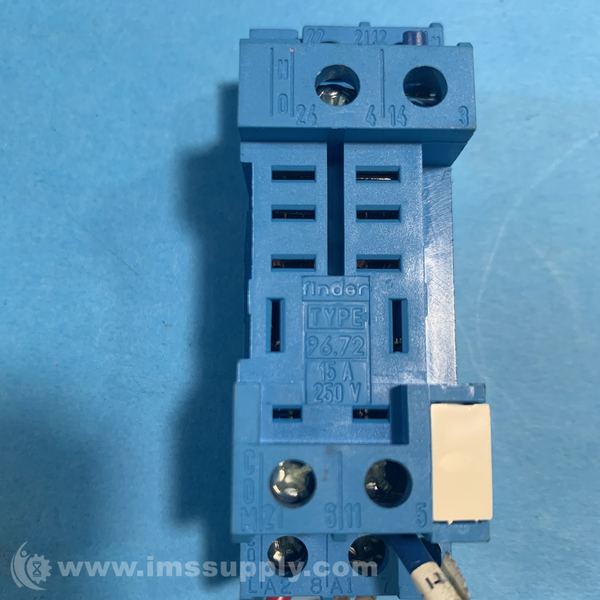

Attached to Finder 96.72
Availability: 3 In Stock
Ships today if ordered in the next 15 hours and 10 minutes.
