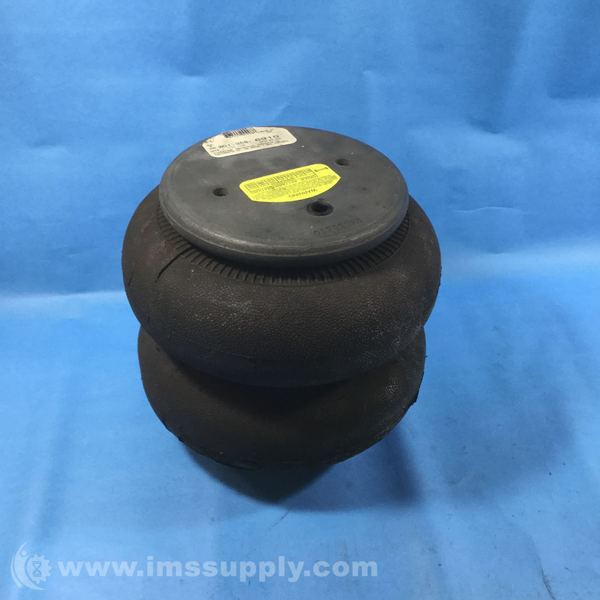

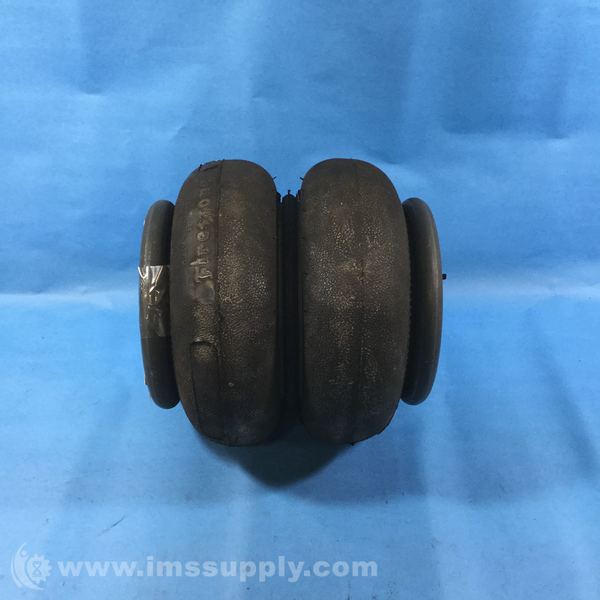

FIRESTONE W01-358-6910 DOUBLE CONVOLUTED AIR SPRING
Quick Overview
Manufactured By: FIRESTONE

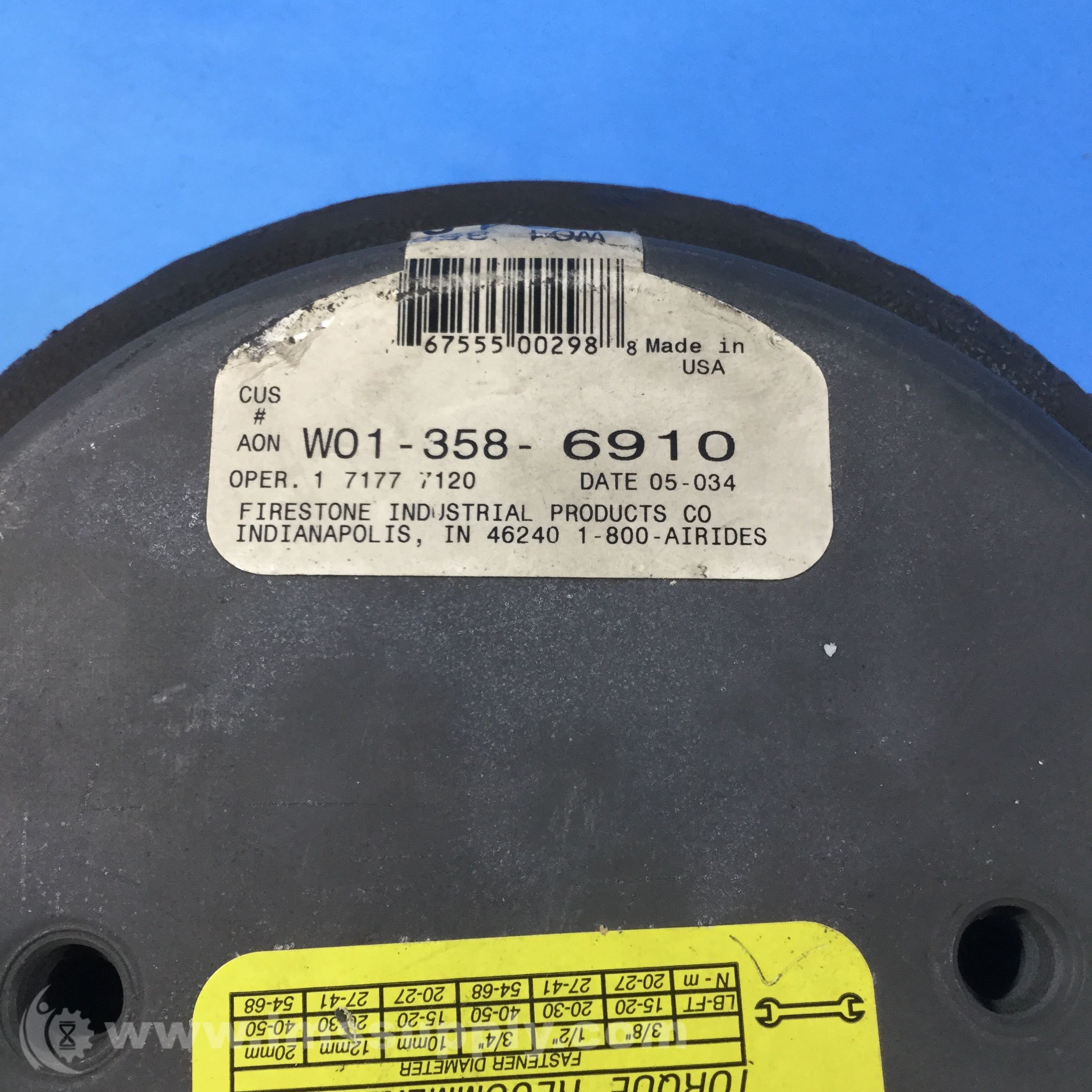

Manufacturer Part Number: W01-358-6910
IMS Product Code: 1808803
Packaging: Sold Individually
Description:
Firestone W01-358-6910 Double Convoluted Air Spring
Specifications:
- Airmount / Airstroke Actuator
- 20CT Style Air Spring
- Type 3 Bead Plate
- (2) 3/8-16 Blind Nuts On 3.50" Centers
- 1/4" NPT Offset Port
- Maximum Diameter @ 100 PSIG (inches): 9.9
- Maximum Height (inches): 9.1
- Maximum Stroke (inches): 6
- Minimum Usable Height (inches): 3.1
- 1 Inch (pounds): 3790
- 3 Inch (pounds): 3180
- Maximum Stroke (pounds): 1770
- Equivalent High Strength Style Number: 202
- Extended Height (Similar End Closure) Style Number: 20_Ì2
- Material: 2-Ply Standard Cord
- Bead plate Type: 3
- Blind Nut Centers (inches): 3.5
- Port Offset from Blind Nut Centerline (inches): 1.75
- Design Height: 8.5
- 40 psig (pounds): 990
- 60 psig (pounds): 1540
- 80 psig (pounds): 2130
- Natural Frequency (@80 psig) (cpm): 116
- 400 CPM %: 90.7
- 800 CPM %: 97.8
