FLOWLINE DL10-0-10 ULTRASONIC LEVEL TRANSMITTER
Quick Overview
Manufactured By: FLOWLINE
Manufacturer Part Number: DL10-0-10
IMS Product Code: 2121514
Packaging: Sold Individually
Description:

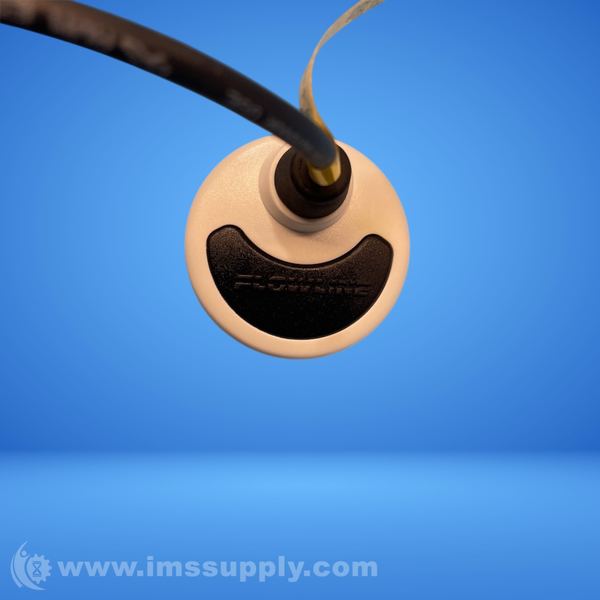

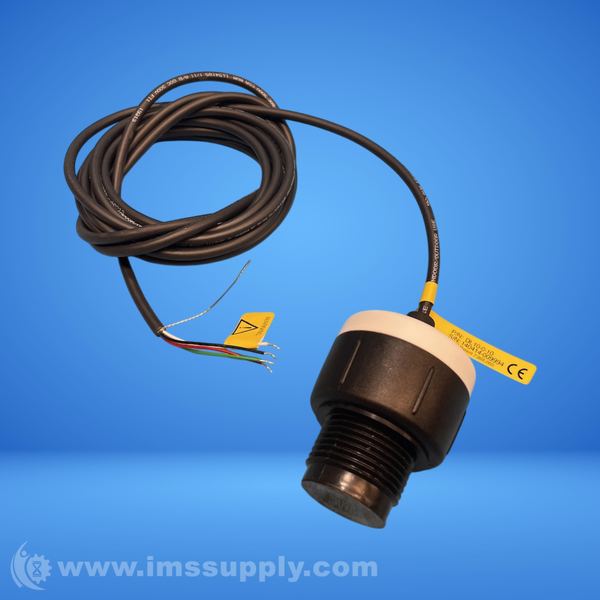

Flowline DL10-0-10 Ultrasonic Level Transmitter
Ultrasonic level transmitter with 4-20 mA output, 1.25m range, PVDF housing, NEMA 6P enclosure, 24 VDC supply
Specifications
- Brand: Flowline
- Product Type: Transmitter
- Sensing Type: Ultrasonic
- Sensing Range: 2" to 49.2" (50.8 to 1.25 m)
- Output: 4-20 mA @ 400 O (loop powered)
- Supply Voltage: 24 VDC, 25 mA
- Process Connection: 1" NPT
- Material - Housing: PVDF
- Enclosure Material: Polycarbonate
- Gasket Material: Viton
- Max Pressure: 30 psig (206.9 kPa)
- Max Temperature: 140°F (60°C)
- Operating Temperature: -31° to 140°F (-35° to 60°C)
- Accuracy: ±0.125" (3 mm)
- Resolution: 0.019" (0.5 mm)
- Dead Band: 2" (5.1 cm)
- Beam Width: 2" (5.1 cm)
- Cable Length: 48" (1.2 m)
- Cable Type: 4-conductor, shielded
- Cable Material: Polyurethane
- Enclosure Rating: NEMA 6P
- Dimensions: 3.2"H x 2.0"W x 2.0"D (8.1 x 5.1 x 5.1 cm)
- Weight: 3.0 lbs (1.4 Kg)
- Approvals: CE, FM, RoHS
New - Missing Box (Special):

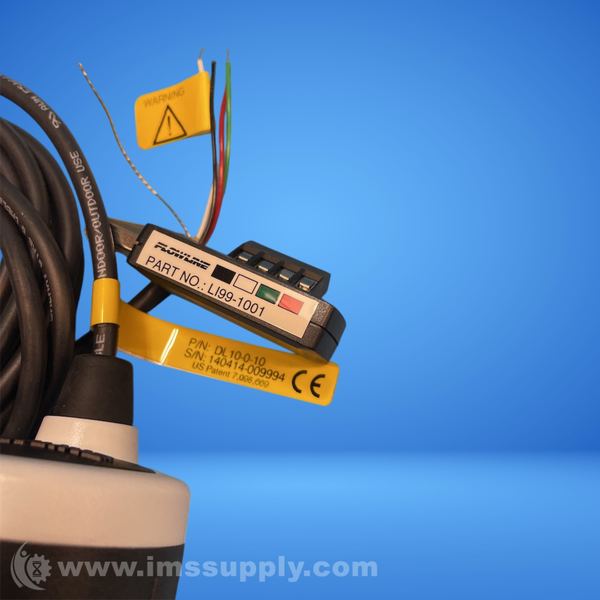

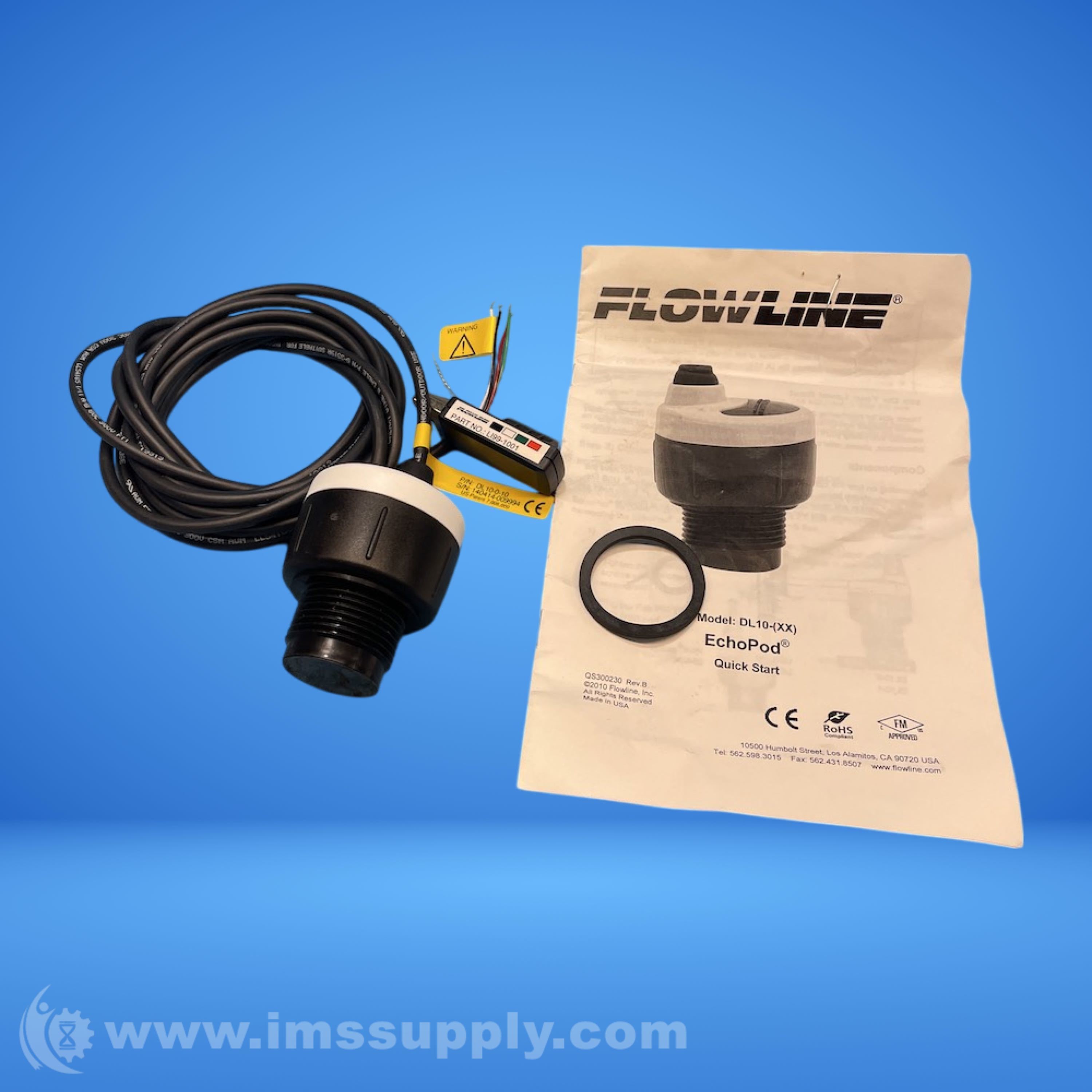

Comes with attachment part number LI99-1001 and manual
