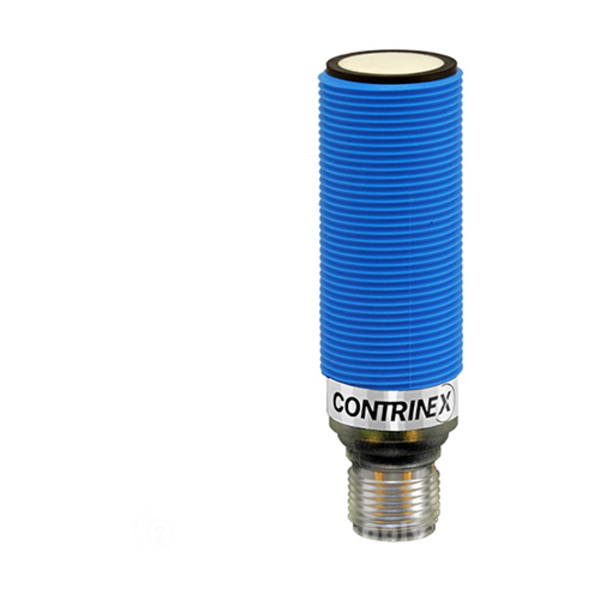

CONTRINEX UST-M18PC-WSS-301 CLASSIC ULTRASONIC SENSOR
Starting At: $111.91
Quick Overview
Manufactured By: CONTRINEX
Manufacturer Part Number: UST-M18PC-WSS-301
IMS Product Code: 1786656
Packaging: Sold Individually
Description:
Contrinex UST-M18PC-WSS-301 High Speed Classic Ultrasonic Sensor
Specifications
| Operating principle | Diffuse |
|---|---|
| Range max. | 40...300 mm |
| Housing size [mm] | M18 |
| Polarity | NPN |
| Output | NO (default)/NC |
| Interface | Standard output |
| Connection | M12 4-pin |
| Supply voltage | 10...30 VDC |
| Switching frequency max. [Hz] | 8 |
| Housing material | PBT |
| Enclosure rating (IP) | IP 67 |
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 30 Days
