FLOWLINE LU10-1405 ULTRASONIC LEVEL SWITCH
Quick Overview
Manufactured By: FLOWLINE
Manufacturer Part Number: LU10-1405
IMS Product Code: 2123058
Packaging: Sold Individually
Description:

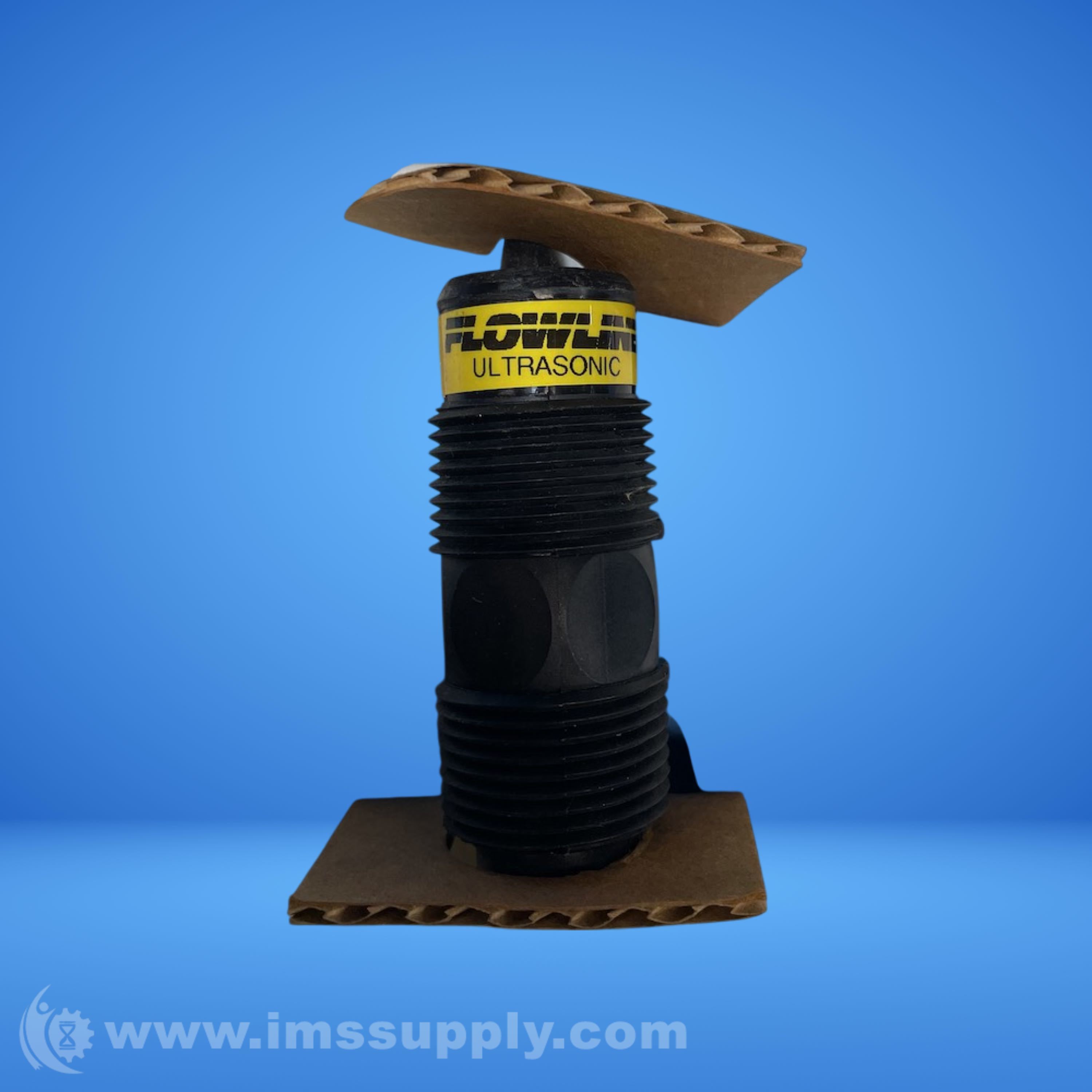

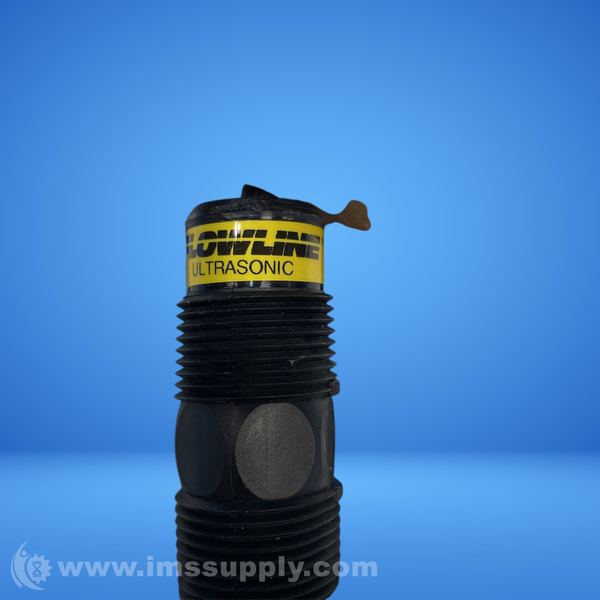

Flowline LU10-1405 Ultrasonic Level Switch
Ultrasonic level switch with 3/4" NPT process connection, polypropylene wetted parts, and SPST relay output.
Specifications
- Supply Voltage: 12-36 VDC
- Consumption: 25 mA maximum
- Contact Type: (1) SPST relay
- Contact Rating: GP: 60 VA, IS: 32 VDC @ 0.5A
- Process Temperature: F: -40° to 176°, C: -40° to 80°
- Pressure: 150 psi (10 bar) @ 25°C, derated @ 1.667 psi (0.113 bar) per °C above 25°C
- Sensor Material: Polypropylene

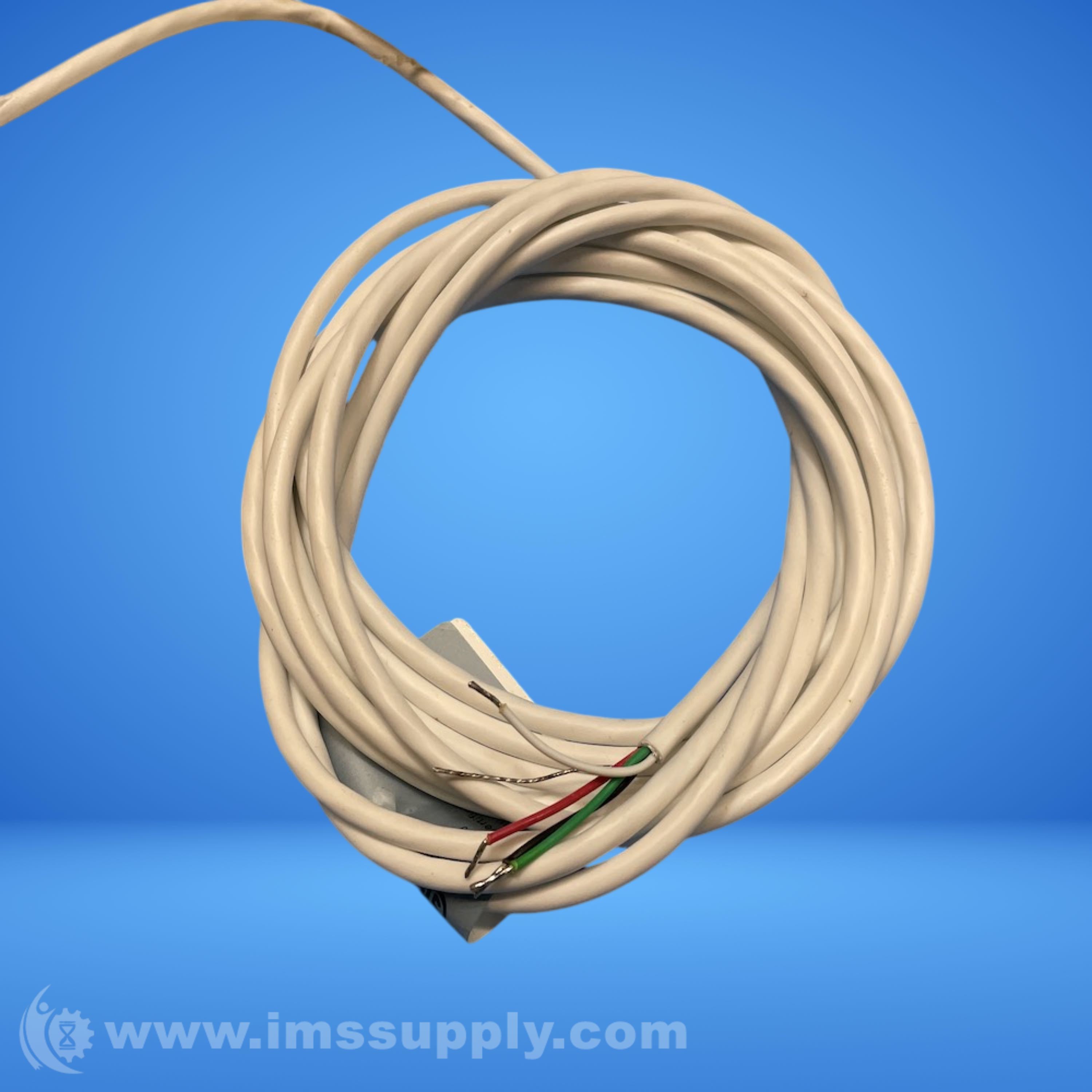

- Cable Type: 4-conductor, shielded, #22 AWG
- Cable Length: 10' (3m)
- Process Mount: 3/4" NPT
- Mounting Gasket: Viton
- Classification: Intrinsically safe
- Certificate: CSA, LR 79326
- Compliance: CE

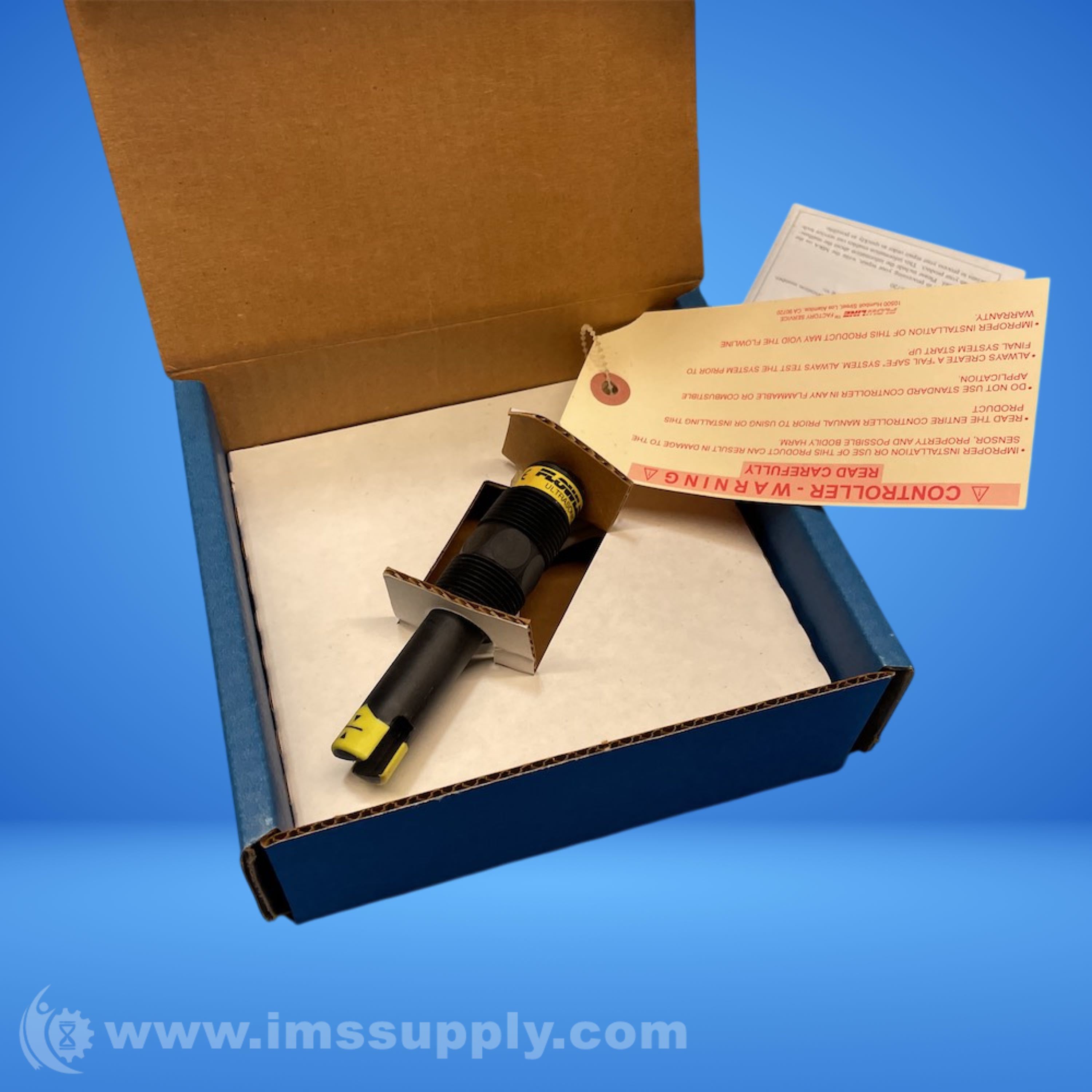

New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships today if ordered in the next 2 hours and 57 minutes.
