FYH UCFS311J FLANGE MOUNTED BALL BEARING UNIT
Quick Overview
Manufactured By: FYH, INC.
Manufacturer Part Number: UCFS311J
IMS Product Code: 2169034
Packaging: Sold Individually
Description:

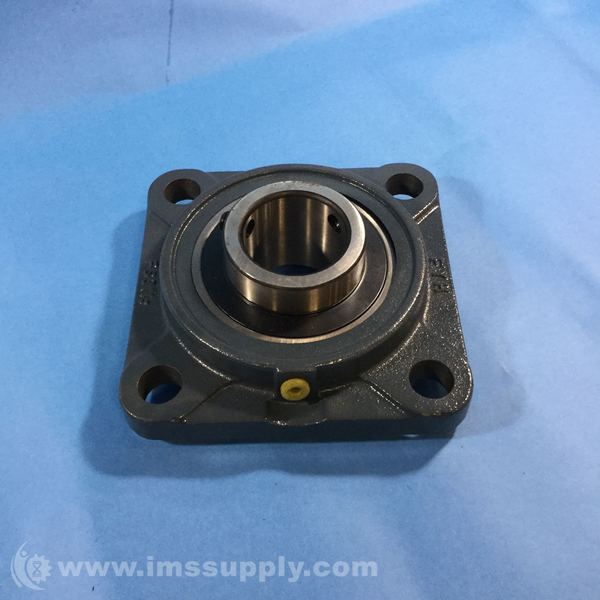

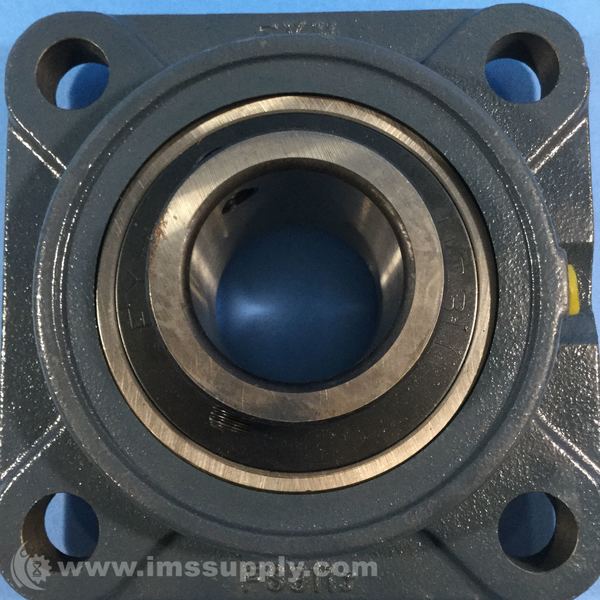

FYH UCFS311J Flange Mounted Ball Bearing Unit
A flange mounted ball bearing unit with a set screw locking mechanism, featuring a heavy-duty cast iron housing.
Specifications
- Bolt Size: M20 3/4 in
- Grease Fitting: A-R1/8
- Housing Number: FS311
- Shaft Size: 2-3/16 in
- Locking Style: Set Screw Locking
- L: 185 mm 7-9/32 in
- J: 140 mm 5-33/64 in
- N: 23 mm 29/32 in
- A1: 20 mm 25/32 in
- A2: 17 mm 43/64 in
- A3: 13 mm 33/64 in
- A4: 39 mm 1-17/32 in
- A5: 58 mm 2-9/32 in
- B: 66 mm 2.598 in
- S: 25 mm 0.984 in
- Basic Load Rating Cr: 71.6 kN 16096 lbf
- Cor: 45.0 kN 10116 lbf
- Factor fo: 13.2
