GARLOCK 3300 GASKET SHEET
Quick Overview
Manufactured By: GARLOCK
Manufacturer Part Number: 3300
IMS Product Code: 2149380
Packaging: Sold Individually
Description:

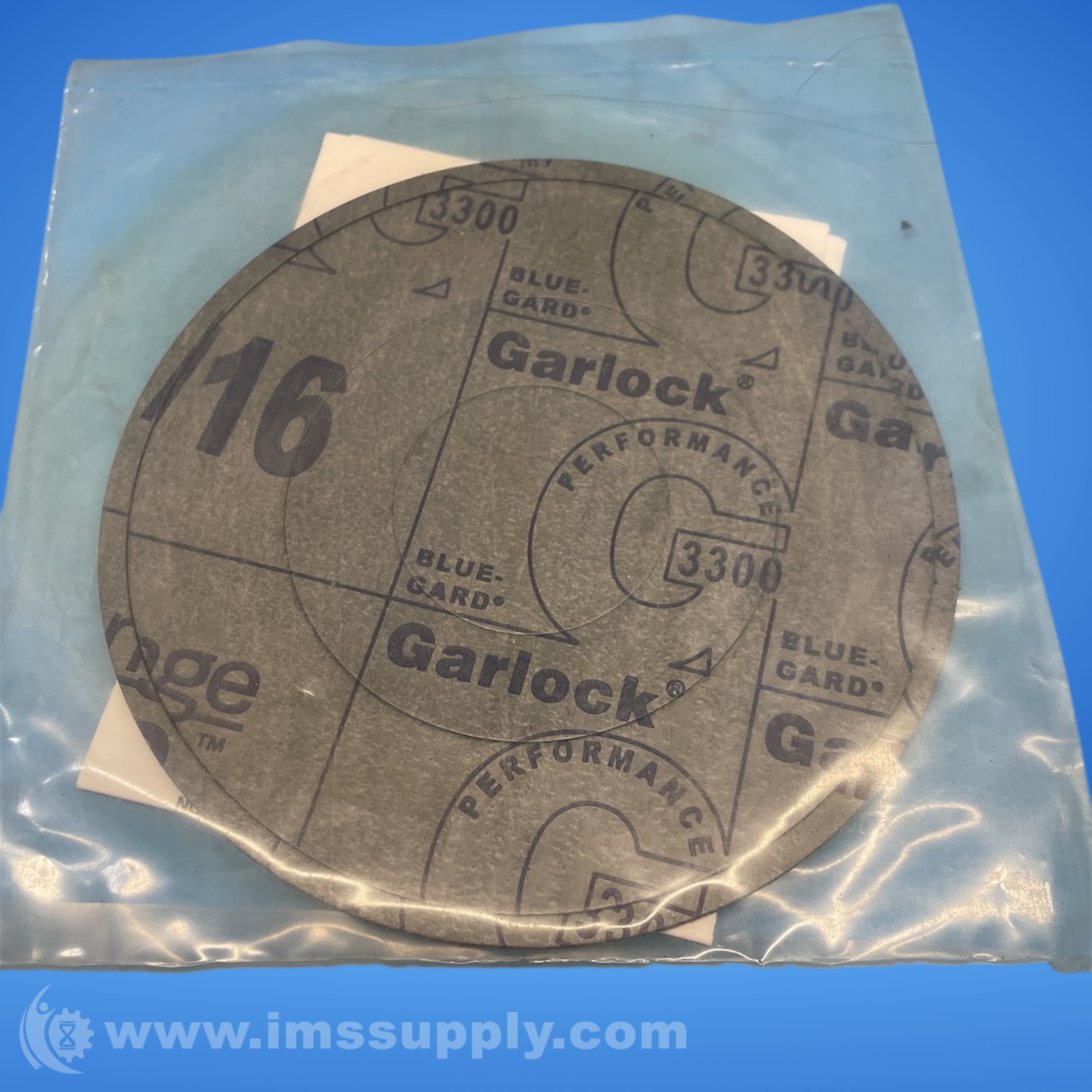

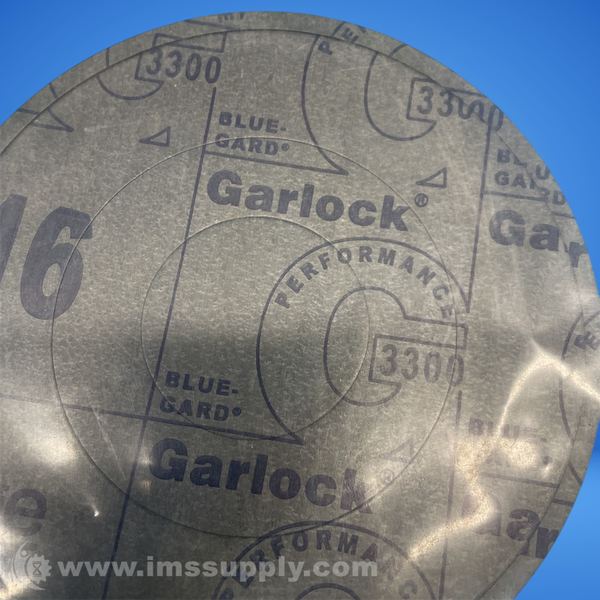

Garlock 3300 Gasket Sheet
Aramid fiber material with Neoprene binder for improved torque retention and reduced emissions. Suitable for refrigerants, oils, fuels, and saturated steam applications.
Specifications
- Material: Aramid fiber with Neoprene binder
- Color: Blue
- Temperature Range: -100F to 700F (400F continuous)
- Max PxT 1/16": 350,000 Temp(F) x PSIG
- Max PxT 1/8": 250,000 Temp(F) x PSIG
- Tensile Strength: 2800 psi
- Density: 100 lbs/cubic ft
- Thickness: 0.125" (1/8")
- Width: 60" (5 Feet)
- Length: 60" (5 Feet)
- Maximum Temperature: 700F (371C)
- Maximum Continuous Temperature: 400F (204C)
- Max Pressure: 1200 psi
- Recommended Applications: Saturated steam, Water, Refrigerants, Fuels, Oils
