GATES 14MX-28S-37 SYNCHRONOUS SPROCKET
Quick Overview
Manufactured By: GATES
Manufacturer Part Number: 14MX-28S-37
IMS Product Code: 2123565
Packaging: Sold Individually
Description:

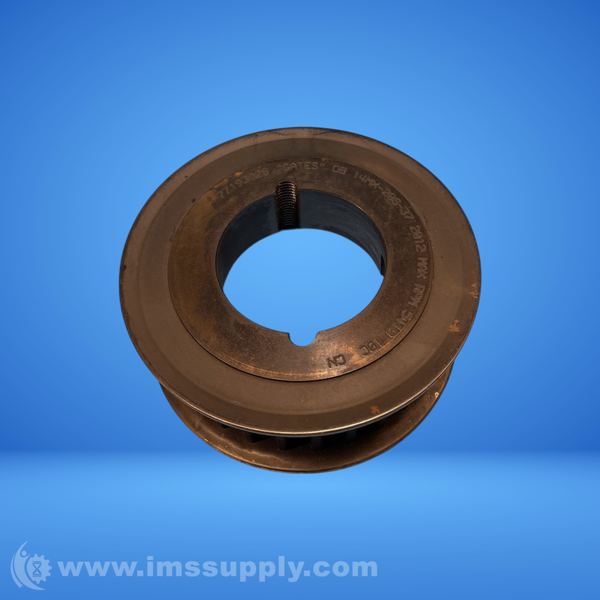

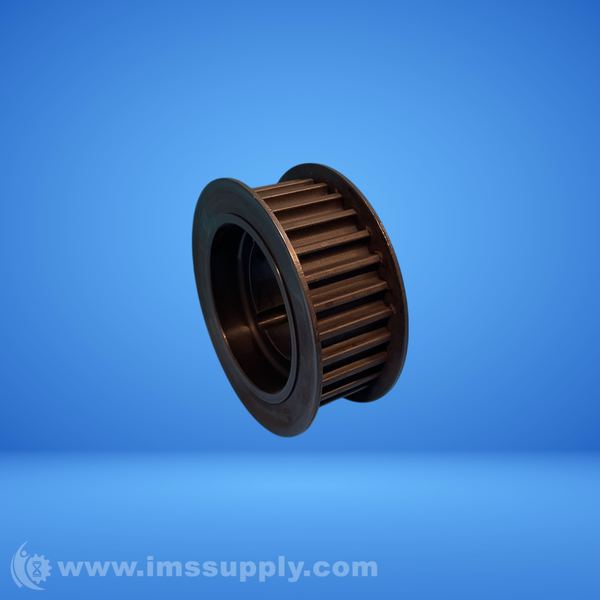

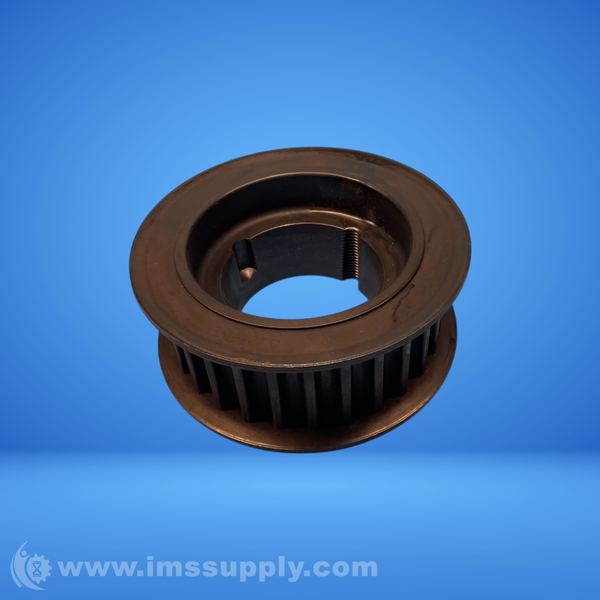

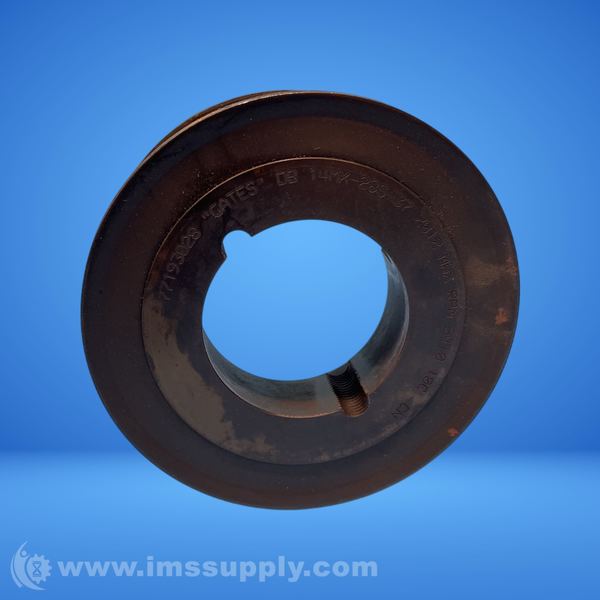

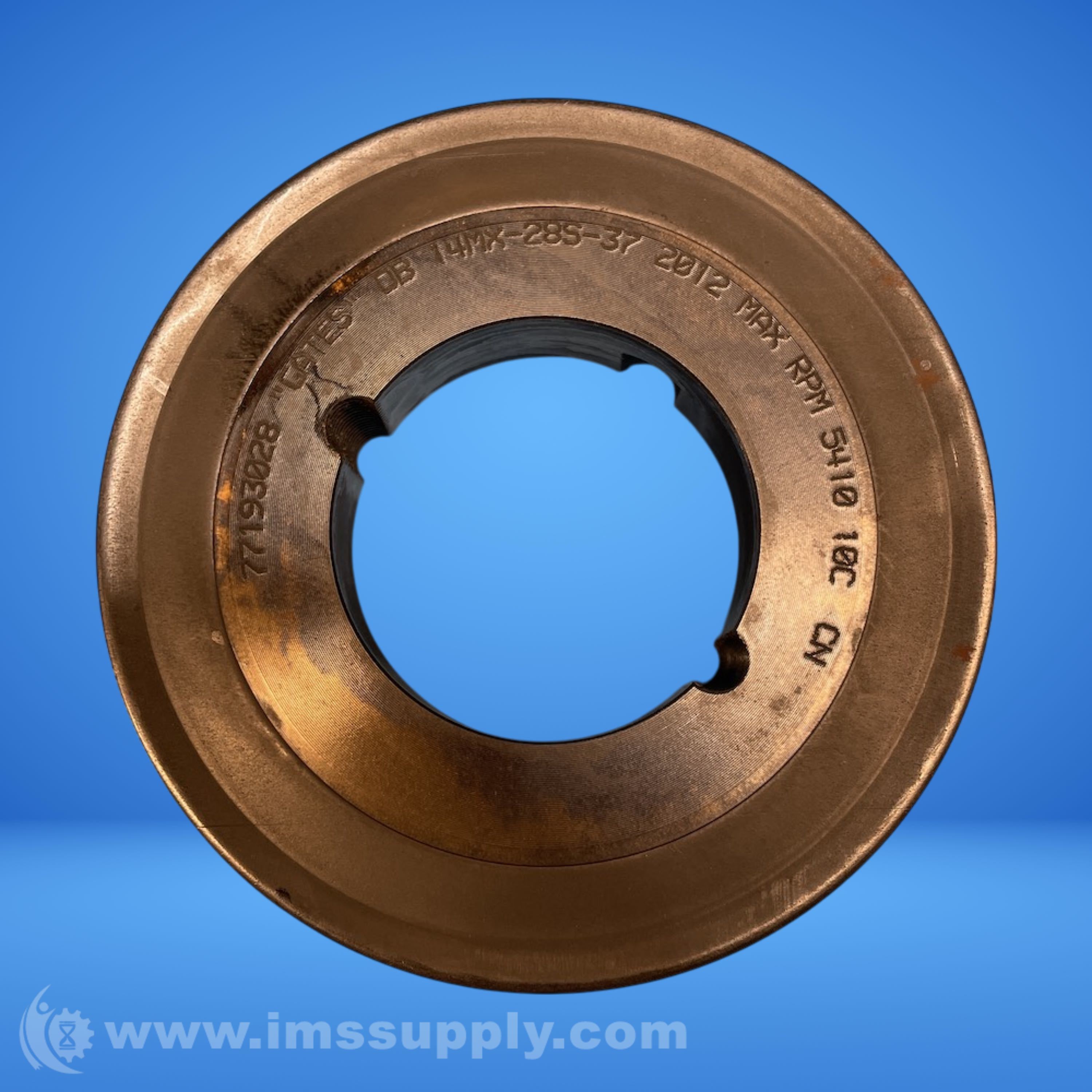

Gates 14MX-28S-37 Synchronous Sprocket
Cast iron synchronous sprocket with Taper-Lock bore, 28 grooves, 14mm pitch, for use with 37mm Poly Chain belt.
Specifications
- Profile: GT
- Number of Grooves: 28
- Pitch Diameter: 4.912 in
- Flange Outer Diameter: 5.4 in
- Bushing Style: Taper-Lock
- Bushing Number: 2012
- Min Bore Range: 0.5 in
- Max Bore Range: 2.13 in
- Face Width: 2.06 in
- Hub Diameter: 3.61 in
- Outside Diameter: 4.8 in
- Pitch: 14 mm
- Series: 7719
- Suitable For Use With: 37 mm W Poly Chain Belt
- Material: Cast Iron
- Rim Speed: 6500 fpm
New - Open Box:

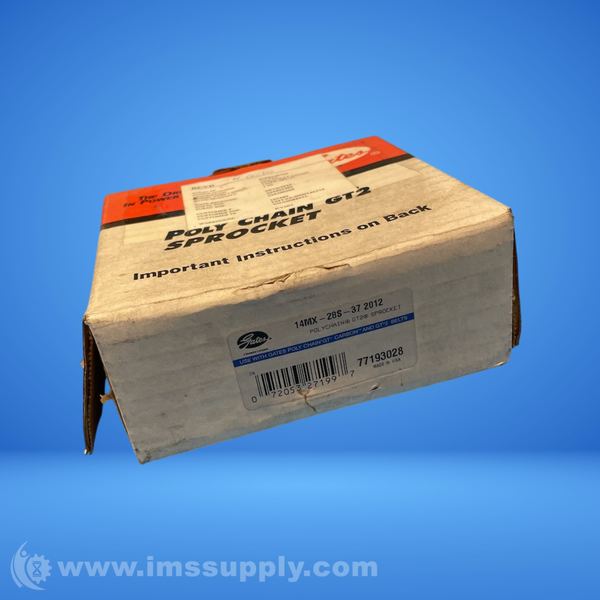

A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
