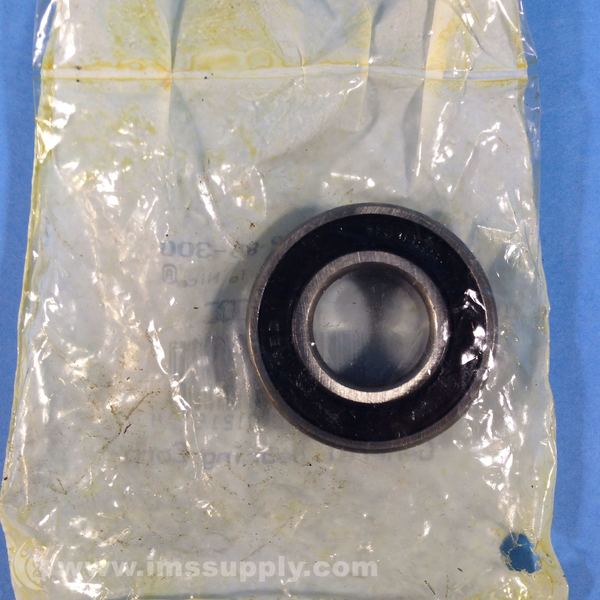

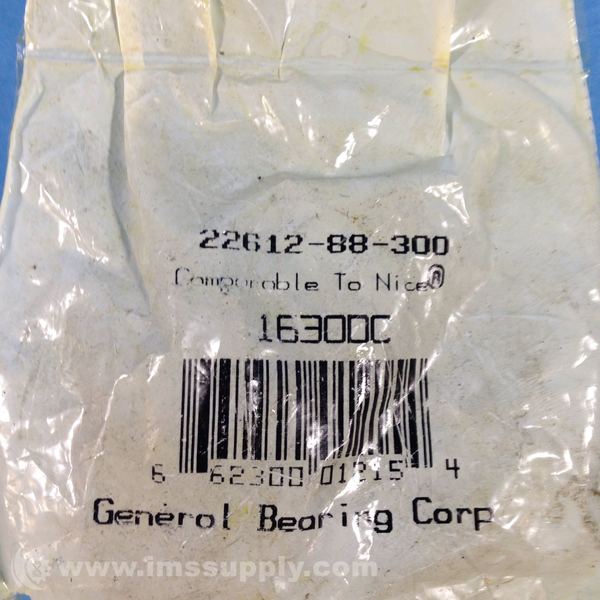

GENERAL BEARING 22612-88-300 BALL BEARING (1630DC)
Quick Overview
Manufactured By: GENERAL BEARING
Manufacturer Part Number: 22612-88-300
IMS Product Code: 1733791
Packaging: Sold Individually
Description:
| Bore Type | Straight Bore - Inch Type | Inner Diameter | 3/4 in |
| Outside Diameter | 1 5/8 in | Width | 1/2 in |
| Enclosure | Double Sealed | Snap Ring | No Snap Ring |
| Material | Steel | Bearing Type | Single Row Radial |
| Precision Level | Standard (ABEC 1) | Radial Internal Clearance | C0 - Normal Clearance |
| Contact Angle | 0 | Outside Diameter Type | Straight Outside Diameter |
| Preload Level | None | Ball Material | Steel |
| Cage Material | Plastic or Steel | Capacity | Standard Capacity |
| Locking Device | No Locking Device | Lubricant | General Purpose |
| Number in Set | Single Bearing | Outer Ring Width | 1/2 in |
| Seal Material | Rubber | Seal Type | Contact Seals |
| Dynamic Load Rating | 1951.00 lbf | Static Load Rating [Max] | 1010.0 lbf |
| Fillet Radius | 0.031 in | Industry Standard Part # | 1630 2RS |
| Inner Ring Width | 1/2 in | Limiting Speed | 5000 rpm |
| Number of Rows | 1 |
