GE TED134030WL 3 POLE CIRCUIT BREAKER
Quick Overview
Manufactured By: GENERAL ELECTRIC
Manufacturer Part Number: TED134030WL
IMS Product Code: 2124425
Packaging: Sold Individually
Description:

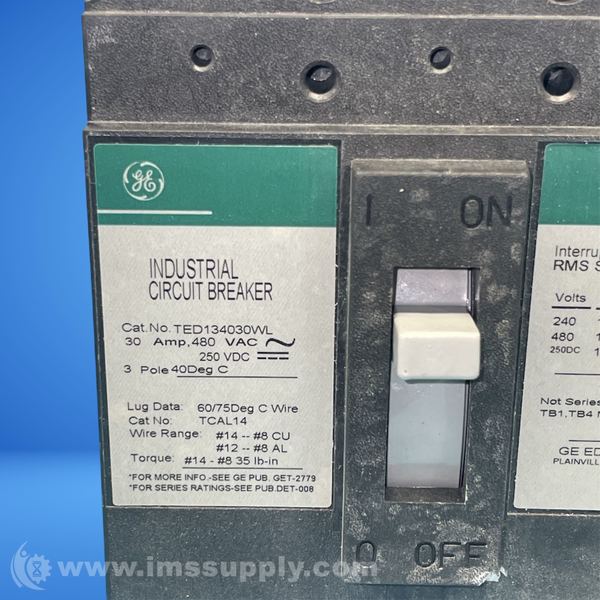

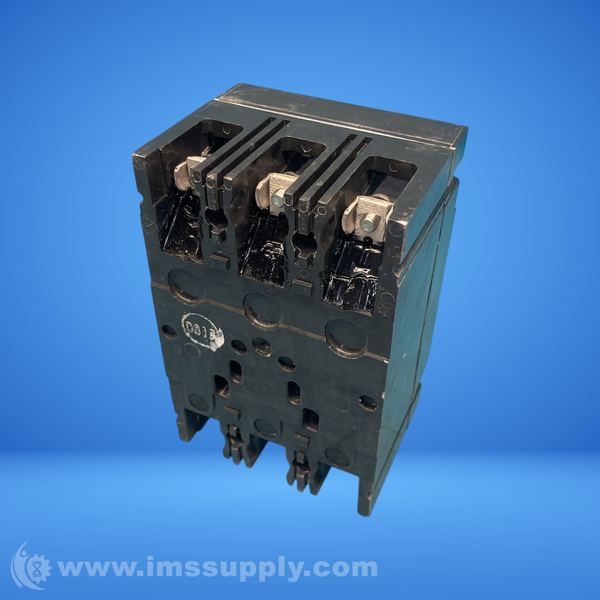

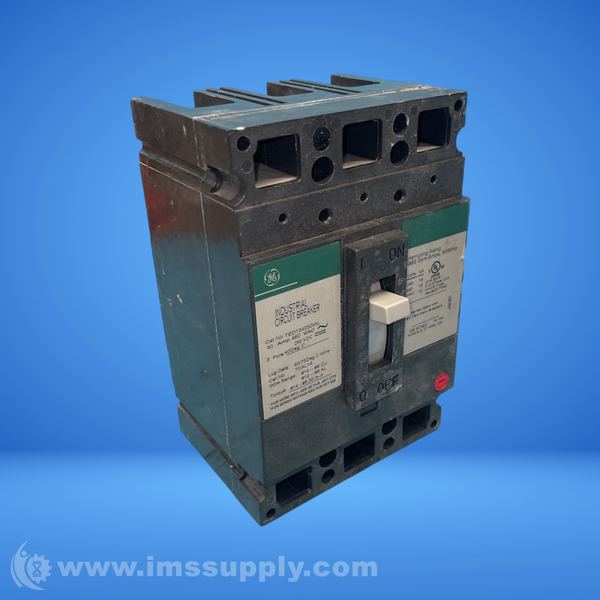

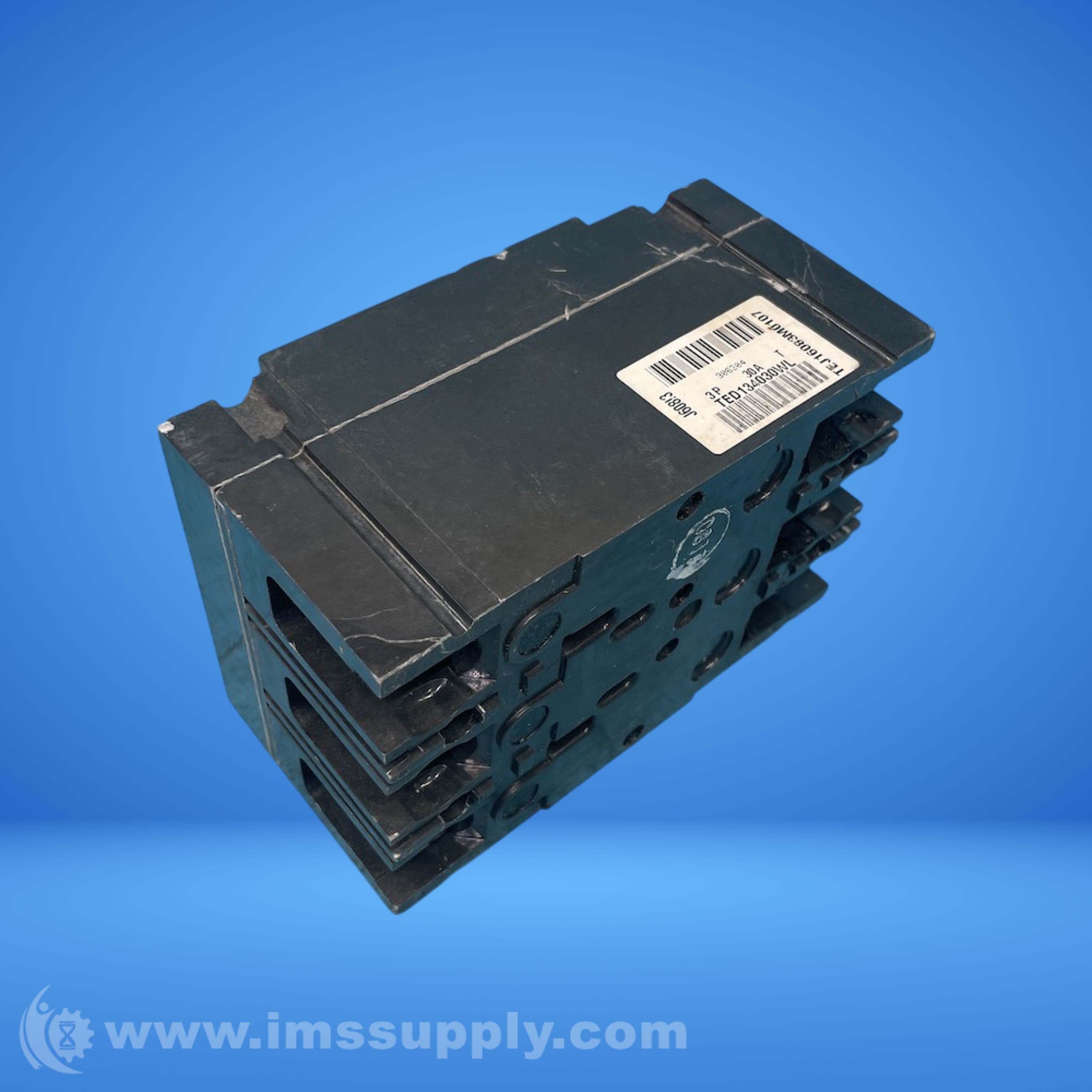

GE TED134030WL 3 Pole Circuit Breaker
General Electric TED134030WL is a 3 Pole thermal magnetic molded case circuit breaker with a current rating of 30 Amps and a voltage rating of 480VAC/500VDC. It has an interrupting rating of 18kA at 240/480VAC, 14kA at 600VAC, 10kA at 500VDC.
Specifications
- Manufacturer: General Electric
- Part Number: TED134030WL
- Series: TED
- Type: Thermal Magnetic
- Poles: 3
- Amperage: 30A
- Voltage: 480VAC/500VDC
- Interrupting Rating: 18kA@480VAC, 10kA@500VDC
- Connection Type: Feed-Thru
- Dimensions: 6.31"H x 4.13"W x 4.09"D
- Weight: 31.84 lbs
- Temperature Rating: 40 deg C
- Trip Type: Non-Interchangeable
- Functions: LI - Long-Time and Instantaneous
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 1 In Stock
Ships today if ordered in the next 6 hours and 51 minutes.
