GE TED136050 3 POLE CIRCUIT BREAKER
Quick Overview
Manufactured By: GENERAL ELECTRIC
Manufacturer Part Number: TED136050
IMS Product Code: 2141074
Packaging: Sold Individually
Description:

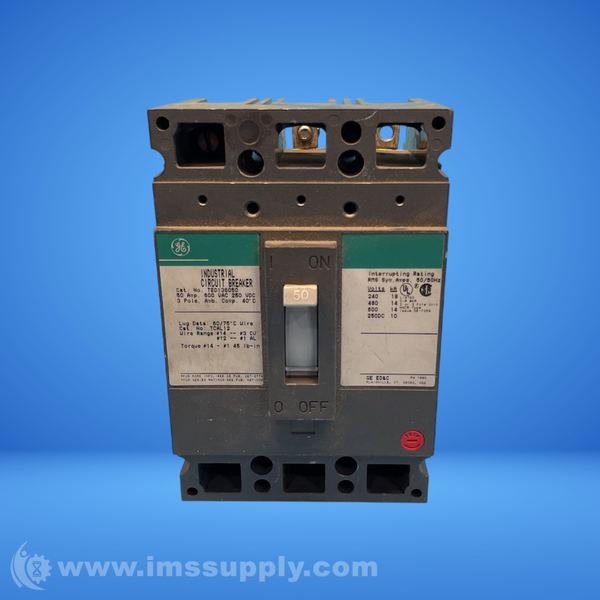

GE TED136050 3 Pole Circuit Breaker
General Electric TED136050 is a 3-pole thermal magnetic molded case circuit breaker with a current rating of 50 Amps and a voltage rating of 600VAC. It has an interrupting rating of 18kAIC@480V.
Specifications
- AIC Ratings: 18kA@480V
- Amperage: 50
- Approval: Ul, Csa, Ce
- Brand: General Electric
- Category: Molded Case
- Connection Type: Bolt-On
- Connection: Feed-Thru
- Current Rating: 50A
- Dimensions (HxWxD): 6.31" x 4.13" x 4.09"
- Frame Type: TED
- Functions: Long Time and Instantaneous Trip
- Interrupting Rating: 18kAIC@480V
- Manufacturer: General Electric
- Maximum Amperage: 50 A
- MPN: TED136050
- Number of Poles: 3
- Phase: 3
- Poles: 3
- Protection: Thermal Magnetic
- Series: Spectra
- Standards: IEC
- Temperature Rating: 40 degrees C
- Terminal Connection: Line and Load Side Lug
- Type: Circuit Breaker
- UPC: 783164063493
- Voltage: 600VAC
- Voltage Rating: 600
- Weight: 25.81 lbs
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 1 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
