GE THED124030 30A 2P CIRCUIT BREAKER
Quick Overview
Manufactured By: GENERAL ELECTRIC
Manufacturer Part Number: THED124030
IMS Product Code: 1750469
Packaging: Sold Individually
Description:

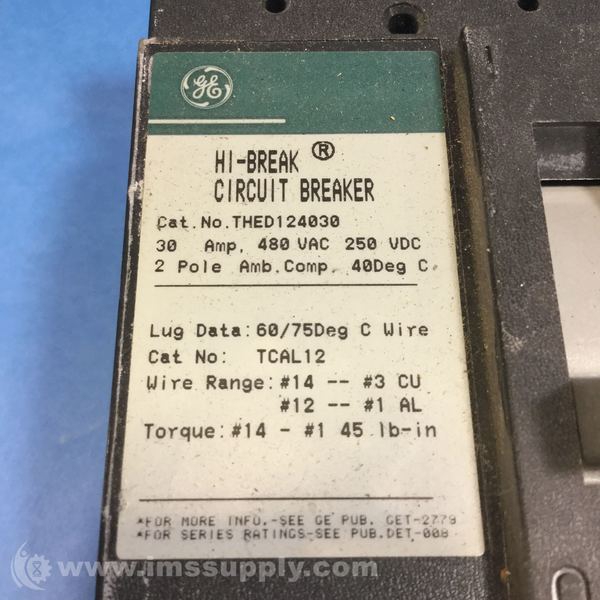

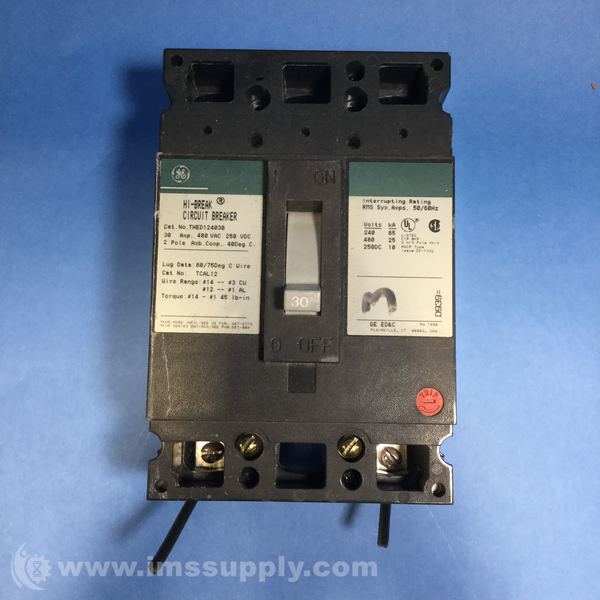

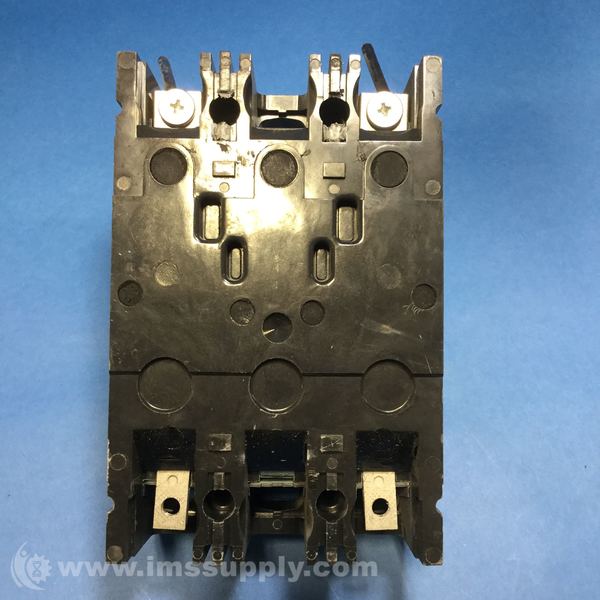

GE THED124030 30A 2P Circuit Breaker
General Electric THED124030 is a 2 Pole thermal magnetic molded case circuit breaker with a current rating of 30 Amps and a voltage rating of 480V. It has an interrupting rating of 25kAIC at 480V.
Specifications
- Amperage: 30 Amp
- Voltage: 480V
- Pole: 2
- Phase: 1
- Mounting Type: Bolt-On
- Interrupting Rating: 25kAIC at 480V
- Frame Type: THED
- Protection: Thermal Magnetic
- Functions: LI - Long-Time and Instantaneous Trip
- Temperature Rating: 40 degrees C
- Material: ABS/Plastic
- Dimensions (HxWxD): 6.31" x 2.75" x 4.09"
- Weight: 21.65 lbs
- Maximum AC Voltage Rating: 480 V
- Maximum DC Voltage Rating: 250 V
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 1 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
