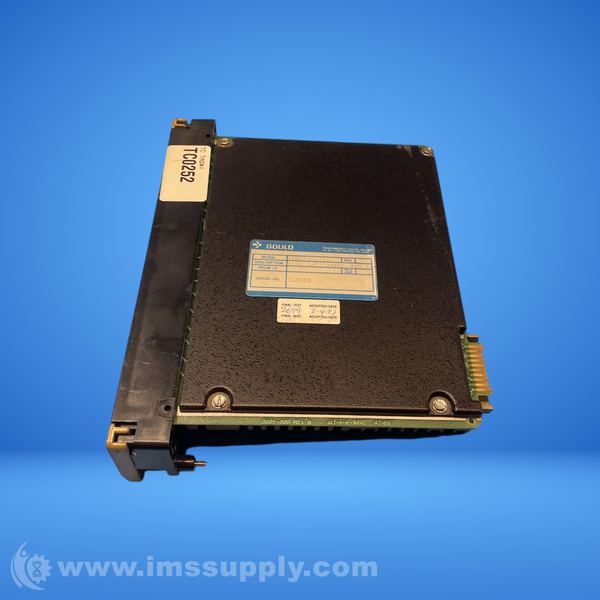

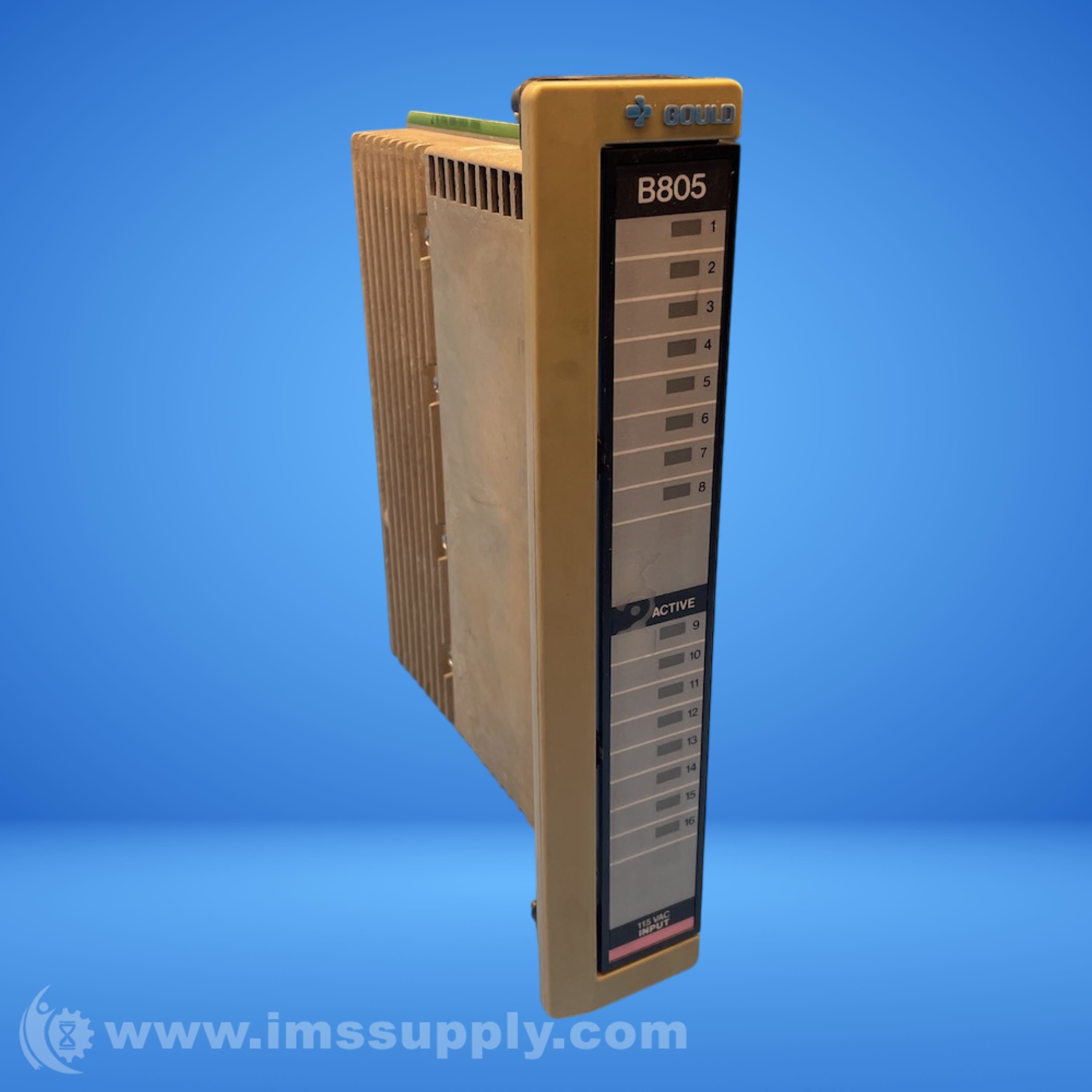

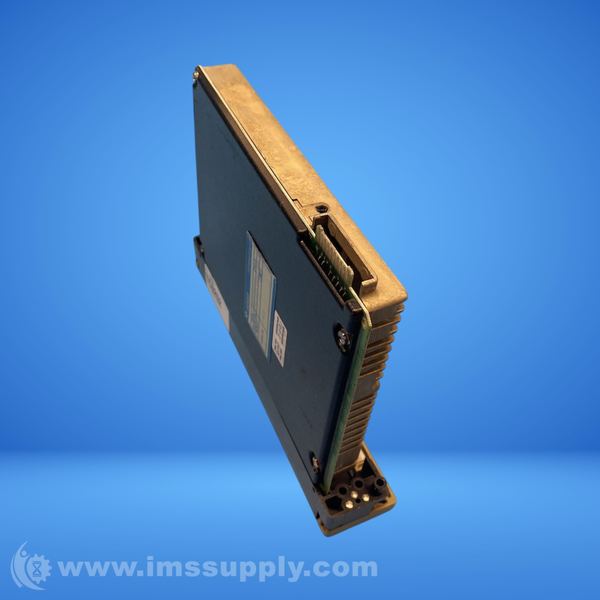

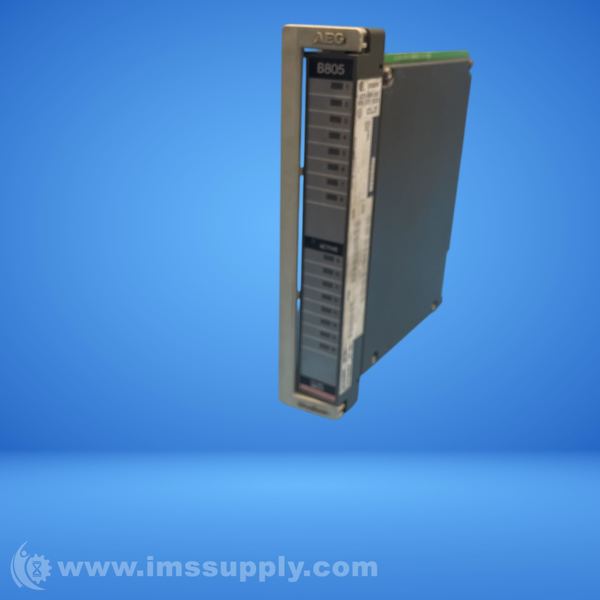

GOULD AS-B805-016 INPUT MODULE
Quick Overview
Manufactured By: GOULD

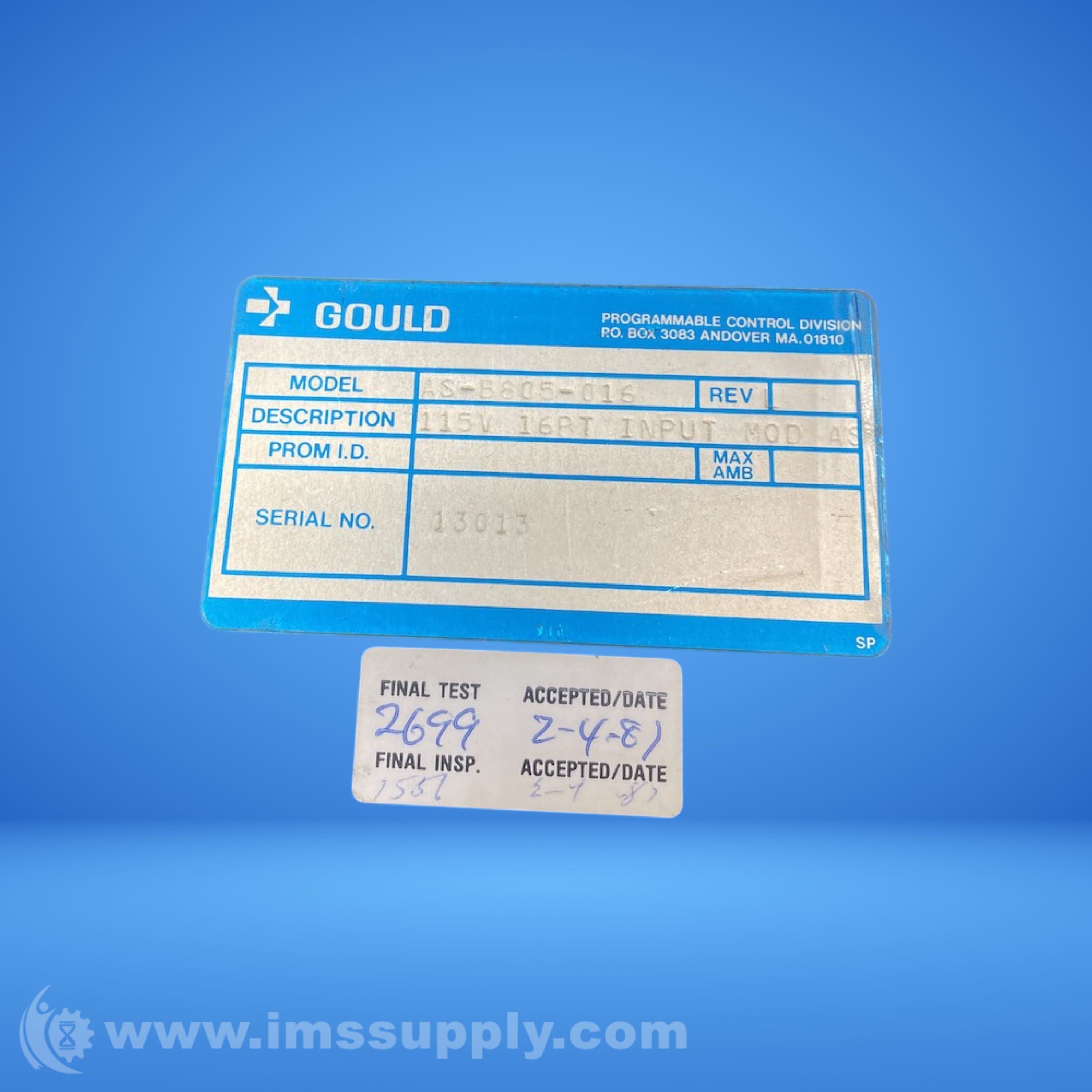

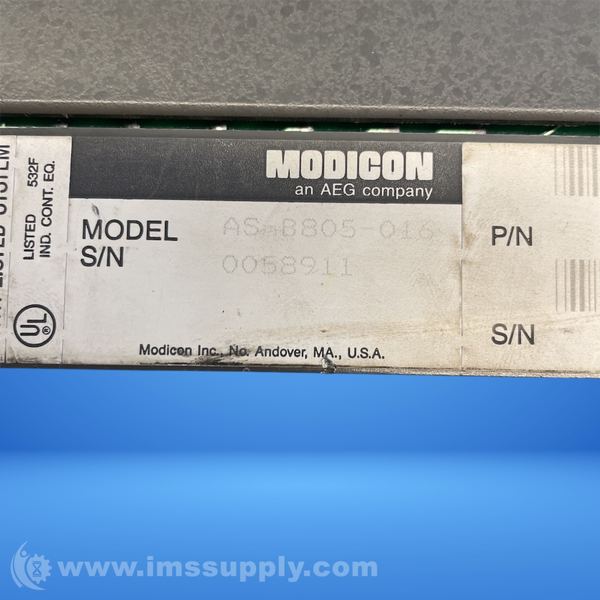

Manufacturer Part Number: AS-B805-016
IMS Product Code: 2083425
Packaging: Sold Individually
Description:
Gould AS-B805-016 Input Module
115VAC, 16-point discrete input module
Specifications
- Voltage: 115 VAC
- Number of Inputs: 16
- Inputs per Group: 8
- Operating Voltage: 80 ... 130 Vac / 47 ... 63 Hz
- Max. Input Voltage Continuous: 130 Vac
- Max. Input Voltage Surge: 220 Vac for one cycle
- ON Conditions: 80 ... 130 Vac (Z<1kO)
- OFF Conditions: 0 ... 35 Vac (Z=0 O), 0 ... 130 Vac (Z>40 kO)
- Wetting Current: 6 mA (typical) @ 115 Vac
- Max. Response Time OFF to ON: 6 ms (4 ms typical)
- Max. Response Time ON to OFF: 18 ms (11 ms typical)
- Power Required: +5 V 40 mA, +4.3 V 1 mA, -5 V 14 mA
- Space Required: 1 slot
- Weight: 2.2 lbs (1.01 kg)
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 2 In Stock
