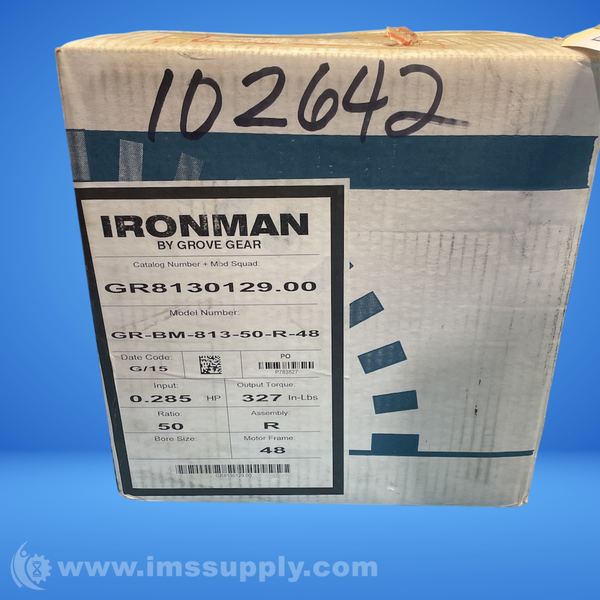

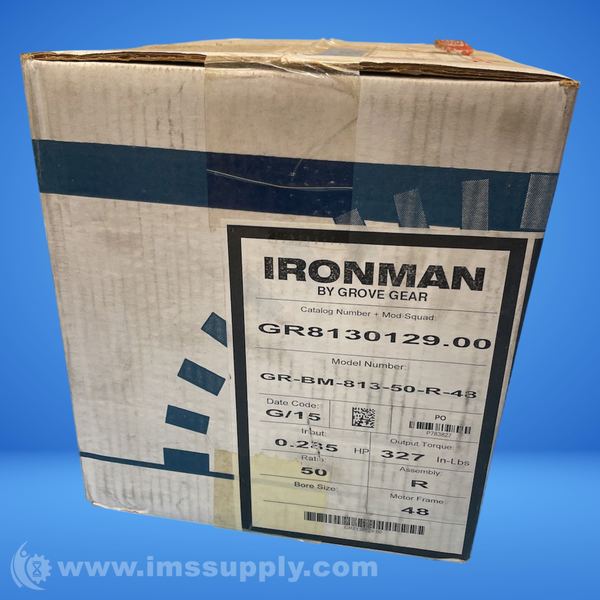

GROVE GEAR GR-BM-813-50-R-48 WORM GEAR REDUCER
Quick Overview
Manufactured By: GROVE GEAR
Manufacturer Part Number: GR-BM-813-50-R-48
IMS Product Code: 2143137

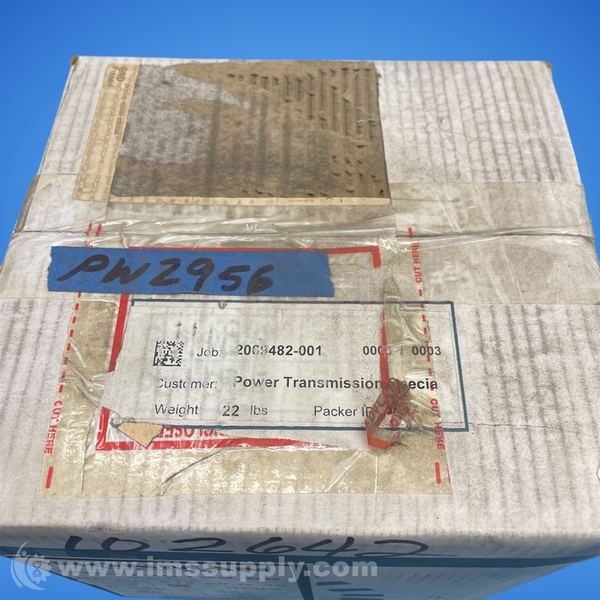

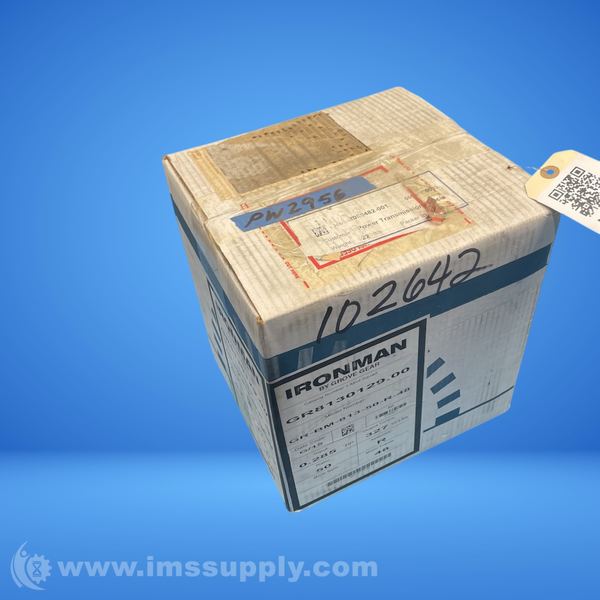

Packaging: Sold Individually
Description:
Grove Gear GR-BM-813-50-R-48 Worm Gear Reducer
50:1 Ratio, 0.5" Input Diameter, 0.625" Output Diameter, Right Angle Cast Iron Single-Reduction Worm Reducer
Specifications
- Assembly: BM-R
- Center Distance: 1.3 In.
- Gear Drive Reductions: Single
- Gear Type: Worm
- H-Tap Size: 5/16-18 UNC
- Housing Material: Cast Iron
- Input Bore: 0.5
- Input Diameter: 0.5
- Input Flange: 48CZ
- Input HP: 0.285
- Input Keyway: 1/8 x 1/16
- Input RPM: 2500
- Input Style: 3-Piece Coupled
- Keyway: 1/8 X 1.00
- Max OHL: 700
- Max Thrust Load: 1144
- Model Code: BM813
- Motor Frame Size: 48
- Mounting Style: Base
- No. of Gear Reductions: Single
- Output: Right
- Output Diameter: 0.625
- Output HP: 0.182
- Output Key: 3/16 x 1.50
- Output RPM: 35
- Output Shaft Assembly Code: R
- Output Shaft Direction: Right
- Output Shaft Orientation: R
- Output Style: R
- Output Torque: 327
- Output Type: Solid Shaft
- Overhung Load: 700
- Paint/Coating: Blue
- Product Line: GR Series - Ironman Worm Gear Reducers
- Product Type: Right Angle
- Ratio: 50 to 1
- Reducer: Worm - Right Angle
- Reducer Style: Worm - Right Angle
- Reducer Type: Single
- Series: GR Series - Ironman Worm Gear Reducers
- Series Code: GR
- Series Style: GR-BM-R
- Service Factor: 1
- Shaft Seal Material: Viton
- Size: 48CZ
- TAP Depth: 0.5
- Thrust Rating: 1144
- Weight: 22 lbs
New:
A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable).
Availability: 1 In Stock
Ships today if ordered in the next 13 hours and 17 minutes.
