GROVE GEAR GR8180543.16 WORM GEAR REDUCER
Quick Overview
Manufactured By: GROVE GEAR
Manufacturer Part Number: GR8180543.16
IMS Product Code: 2128790
Packaging: Sold Individually
Description:

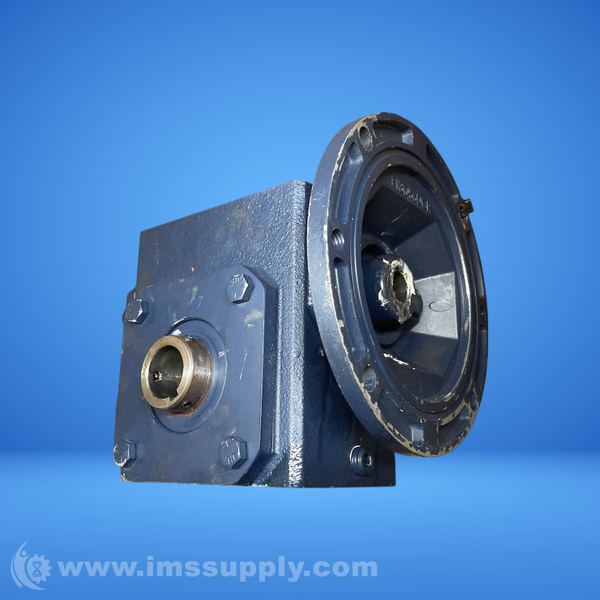

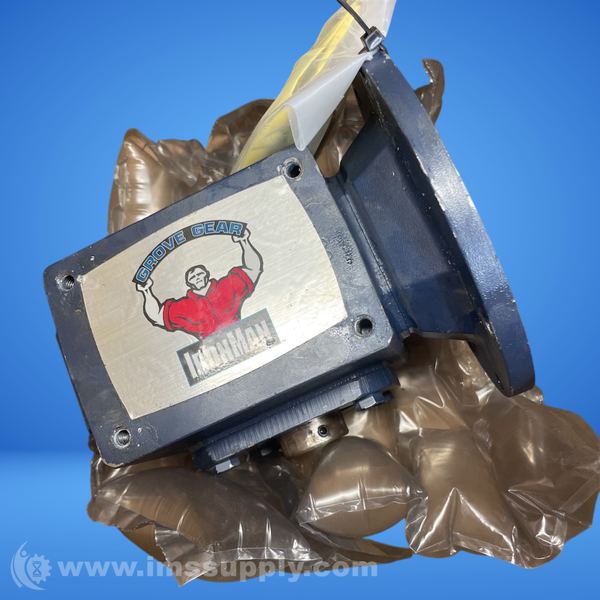

Grove Gear GR8180543.16 Worm Gear Reducer
Right angle single reduction worm gear reducer with C-face quill input and hollow bore output. 30:1 gear ratio, 0.741 hp input, 0.569 hp output, 58 rpm maximum output speed, 614 in-lb output torque rating. Cast iron construction.
Specifications
- Series: GR Series
- Type: Right Angle Single Reduction
- Gear Ratio: 30:1
- Input Type: C-Face Quill
- Output Type: Hollow Bore
- Input Size: 5/8 in Dia
- Output Size: 1 in Dia
- Torque Rating: 614 in-lb Output
- Centre Distance: 1-3/4 in
- Keyway Size: 3/16 x 3/32 in Input, 1/4 x 2-1/2 in Output
- Lubrication Type: PAG Synthetic Oil
- Mounting Type: Shaft
- Material: Cast Iron
- Dimensions: 5-1/2 in W
- Input Maximum Speed: 1750 rpm
- Output Maximum Speed: 58 rpm
