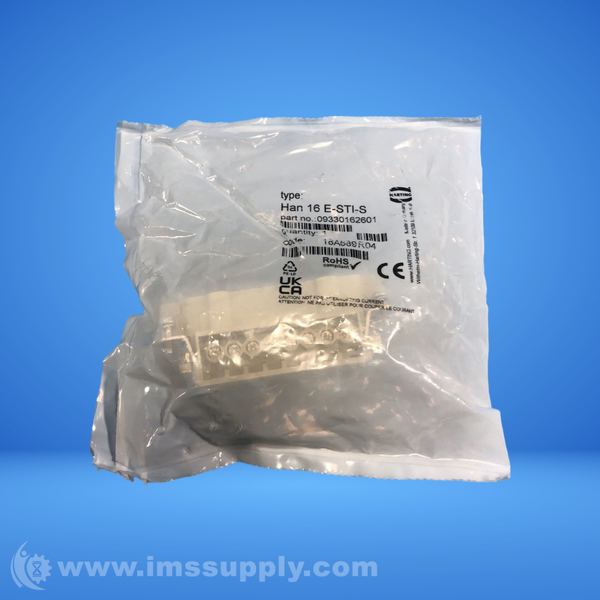

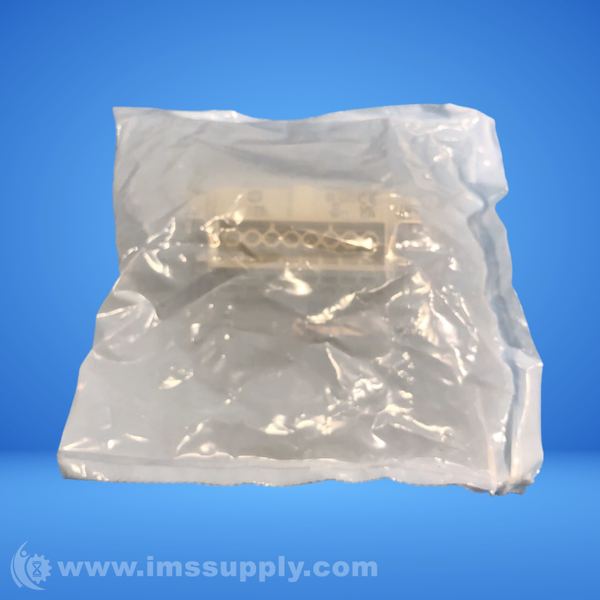

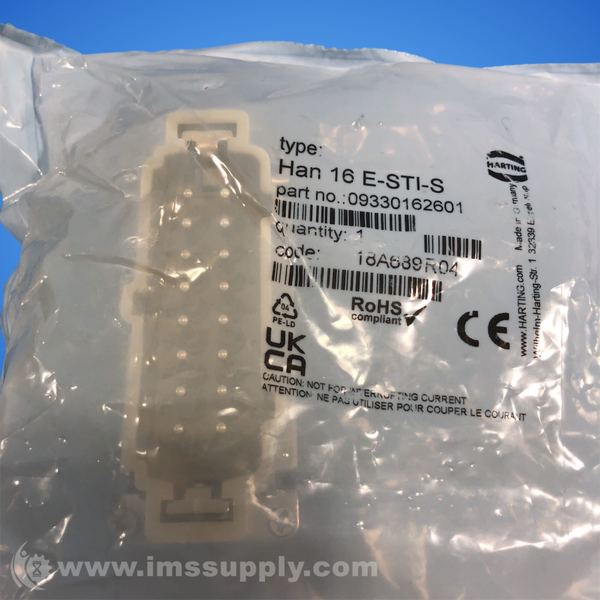

HARTING 09330162601 HAN E 16 POS. M INSERT SCREW
Quick Overview
Manufactured By: HARTING
Manufacturer Part Number: 09330162601
IMS Product Code: 819919
Packaging: Sold Individually
Description:
Harting 09330162601 Han E 16 Pos. M Insert Screw
Heavy Duty Power Connectors Han E 16P M SCREW SCREW TERMINATION
Specifications
- Series: Han E®
- Termination method: Screw termination
- Gender: Male
- Size: 16 B
- Number of contacts: 16
- PE contact: Yes
- Conductor cross-section: 0.75 ... 2.5 mm²
- Conductor cross-section [AWG]: AWG 18 ... AWG 14
- Rated current: 16 A
- Rated voltage: 500 V
- Rated impulse voltage: 6 kV
- Pollution degree: 3
- Insulation resistance: >10¹° O
- Contact resistance: = 1 mO
- Tightening torque: 0.5 Nm Contact screw M3, 0.5 Nm Fixing screws M3, 1.2 Nm PE screw M4
- Limiting temperature: -40 ... +125 °C
- Mating cycles: = 500
- Material (insert): Polycarbonate (PC)
- Colour (insert): RAL 7032 (pebble grey)
- Material (contacts): Copper alloy
- Surface (contacts): Silver plated
- Material flammability class acc. to UL 94: V-0
New:
A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable).
Availability: 4 In Stock
Ships today if ordered in the next 4 hours and 12 minutes.
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 1 In Stock
Ships today if ordered in the next 3 hours and 12 minutes.
