HIOKI 8730-10 WAVE COMPARATOR
Quick Overview
Manufactured By: HIOKI
Manufacturer Part Number: 8730-10
IMS Product Code: 2143072
Packaging: Sold Individually
Description:
Hioki 8730-10 Wave Comparator
Wave comparator with 1 analog channel, 7.2-inch STN color LCD, and PC card Type II slot for data storage.
Specifications
- Measurement Ranges: 100 mV to 5 V/division, 6 ranges (10 division f.s.)
- Resolution: 1/160 of range
- Frequency Characteristics: DC to 400 kHz -3 dB
- Time Axis: 100 µs to 5 minutes/division, 20 settings (1 division = 100 samples)
- Measurement Functions: Memory recorder with Wave Comparator
- Number of Input Channels: Analog 1 channel
- Data Storage: PC card Type II slot
- Interfaces: RS-232C LAN (10BASE-T) External I/O
- Display: 7.2-inch STN color LCD
- Power Supply: 100 to 240 V AC (50/60 Hz)
- Dimensions: 288 mm(11.34 in)W × 144 mm(5.67 in)H × 190 mm(7.48 in)D
- Weight: 3.4 kg(119.93 oz)
- Accessories: Power cord(1), Wave viewer software(1)
- Channels: 1
- Sampling Rate: 1 MS/S (0.001 GS/S)
- Country of Origin: Japan

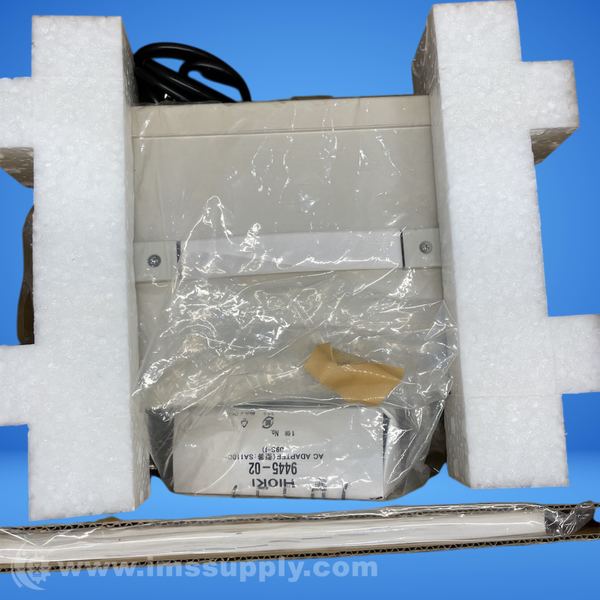

New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships today if ordered in the next 15 hours and 27 minutes.
