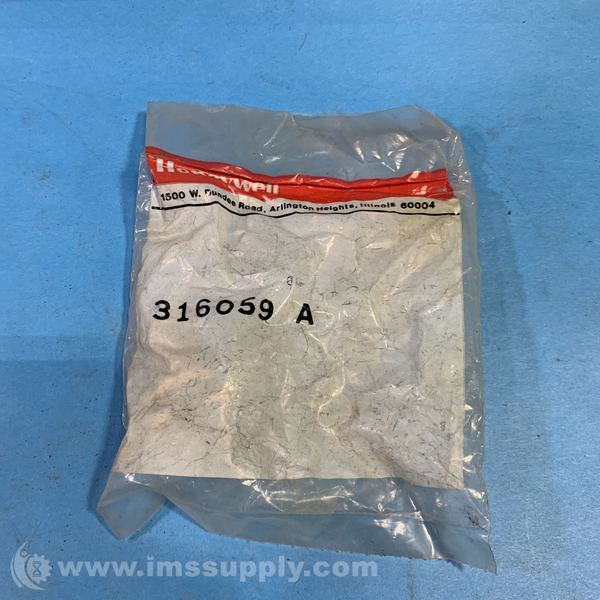

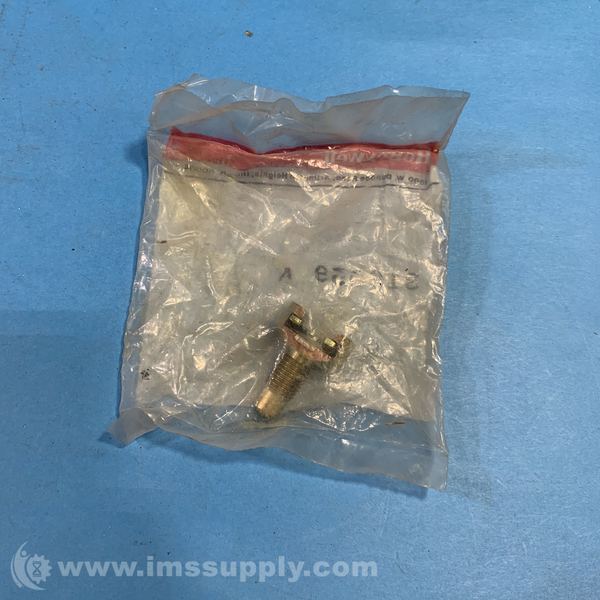

HONEYWELL 316059A YOKE ASSEMBLY
Quick Overview
Manufactured By: HONEYWELL
Manufacturer Part Number: 316059A
IMS Product Code: 1874961
Packaging: Sold Individually
Sold Individually
Bag of 2
Bag of 4
Description:
Honeywell 316059A Yoke Assembly
Pneumatic valve actuator yoke assembly for MP953B/D/F actuators.
Specifications
- Type: Pneumatic
- Action: V-3000: Spring return up; MP800: Field reversible action
- Connections: Barb for 1/4" or 1/8" OD poly tubing; 1/8" NPT for brass fitting
- Diaphragm: V-3000: 4.5" diameter, 8 sq. in. effective area; MP800: 8.7" diameter, 25 sq. in. effective area
- Spring Range: V-3000: Depends on separately ordered spring; MP82xC001: 3-7 psi; MP82xD001: 4-8 psi; MP82xE001: 9-13 psi
- Stroke: V-3000: 5/16" to 3/4"; MP821: 5/16"; MP822: 1/2"; MP823: 3/4"
- Operating Temperature: -20 to 150 degrees F
- Media Temperature Range: Maximum fluid temperature 338 degrees F, 100 psig steam
- Maximum Pressure: 25 psig
- Dimensions: V-3000: 3.5"H x 4.1"DIA; MP800: 10.7"H x 8.7"DIA
- Weight: V-3000: 0.9 lb; MP800: 14.0 lb
- Mounting: V-3000: Set screw to VG-7000 valve bonnet; MP800: Threaded nut to VG-7000 valve bonnet
