HONEYWELL 914CE19-3 LIMIT SWITCH
Quick Overview
Manufactured By: HONEYWELL
Manufacturer Part Number: 914CE19-3
IMS Product Code: 1746560
Packaging: Sold Individually
Description:

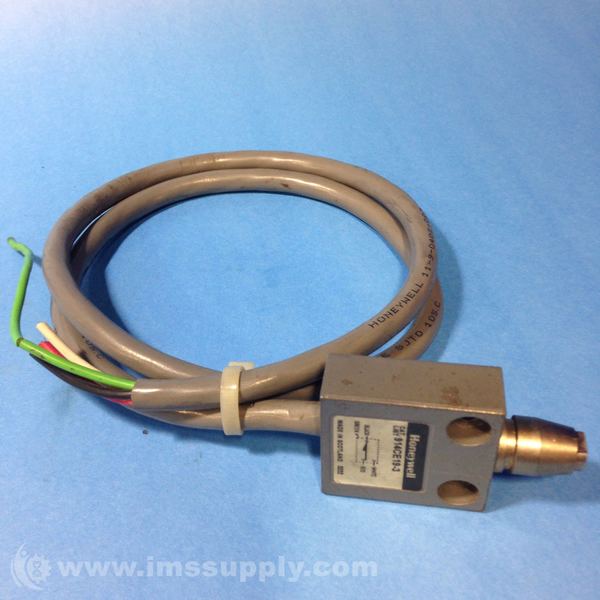

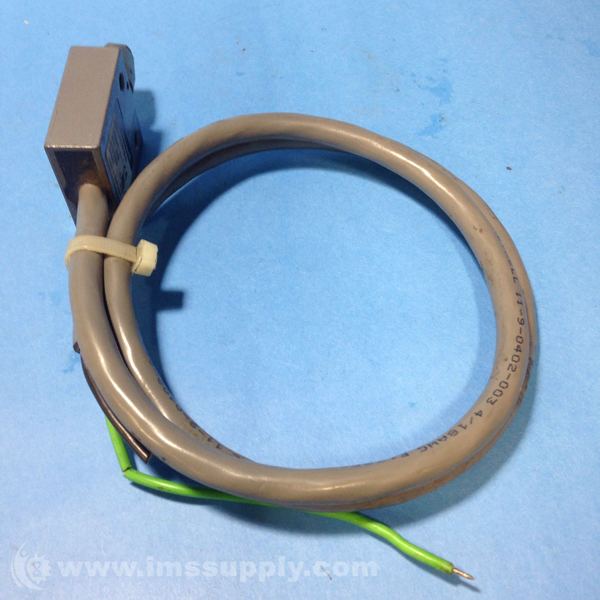

Honeywell 914CE19-3 Limit Switch
Mechanical Limit Switch with Adjustable Top Plunger Actuator, SPDT Configuration, 5A at 250VAC, Screw Mount, Cable Termination
Specifications
- Actuator Style: Adjustable Top Plunger
- Device Type: Linear
- Switch Configuration: N.O./N.C.
- Pole Throw Configuration: SPDT
- Maximum Current Rating: 5A at 250VAC
- Maximum AC Voltage Rating: 250V
- Dielectric Strength: 1500VAC
- Mechanical Life: 10000000 cycles
- Operating Force: 22.24 N
- Operating Speed: 0.1 m/s
- Mounting: Screw Mount
- Termination Style: Cable
- Minimum Over-Travel: 3 mm
- Minimum Operating Temperature: 0 degrees C
- Maximum Operating Temperature: 70 degrees C
- Product Length: 40 mm
- Product Depth: 16 mm
- Product Height: 75.36 mm
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
