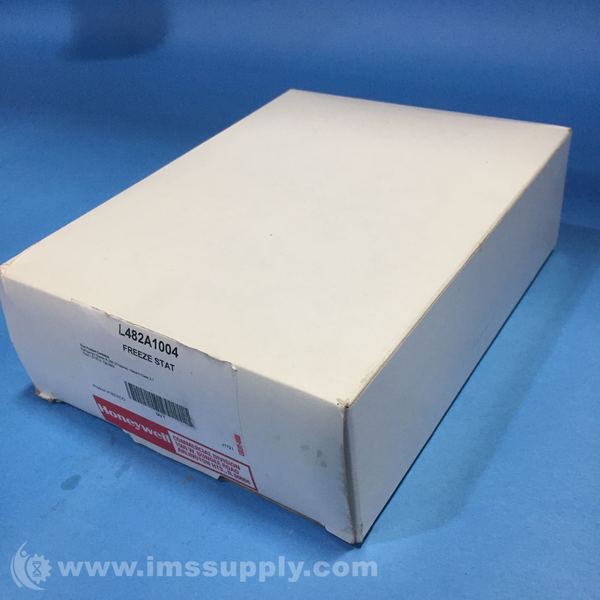

HONEYWELL L482A1004 LOW LIMIT CONTROLLER
Quick Overview
Manufactured By: HONEYWELL
Manufacturer Part Number: L482A1004
IMS Product Code: 1876752
Packaging: Sold Individually
Description:
Honeywell L482A1004 Low Limit Controller
Low limit, manual reset controller with 20 ft. capillary and 2 SPST switches
Specifications
- Differential: 5F
- Type: Low Limit
- Sensing Element: 20' (6m) element, 1/8" dia., no bulb, controller operates at coldest point
- Switch Action: 2 SPST, manual reset, main switch (M2) opens, aux. switch (M1) closes on temperature fall
- Set Point Range: 15 to 55 degrees F
- Controls Outputs: 2 SPST
- Display: Mechanical
- Conduit Connection: 7/8" (22mm) hole for 1/2" conduit with 1-3/32" (28mm) knockout ring for 3/4" conduit
- Setpoint Adjustment: Slotted screwdriver
- Operating Temperature: 20 to 140 degrees F (-7 to 60 degrees C)
- Maximum Element Temperature: 250 degrees F (121 degrees C)
- Dimensions: 4.7" x 3.9"W x 2.1"D (11.9 x 10.1 x 5.3 cm)
- Weight: 2.3 lb (1.04 kg)
- Approvals: UL Listed file #E49725, CSA Certified
New - Missing Box (Special):
Only the lower coil.
Availability: 1 In Stock
Ships on Monday, October 5, 2026
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
