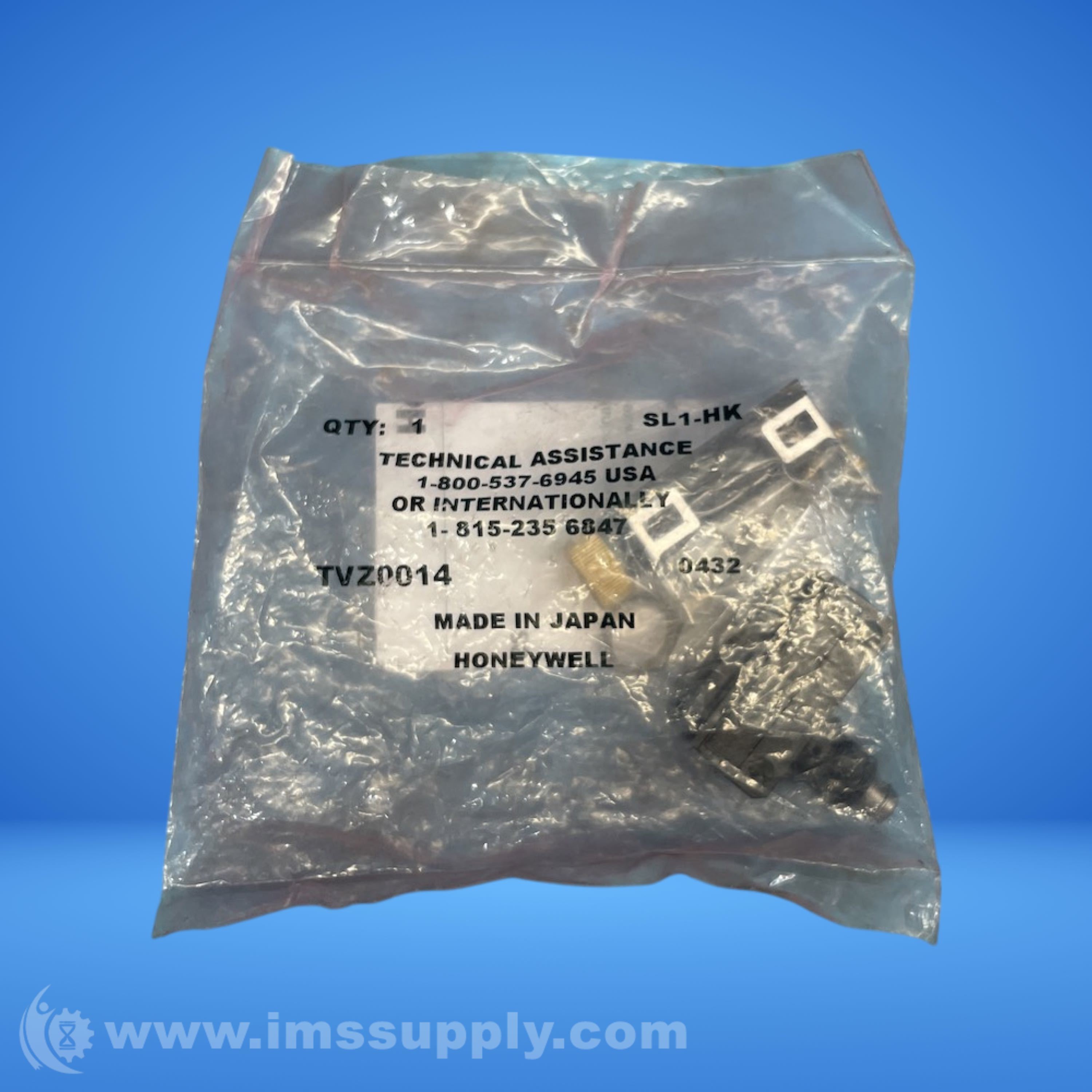

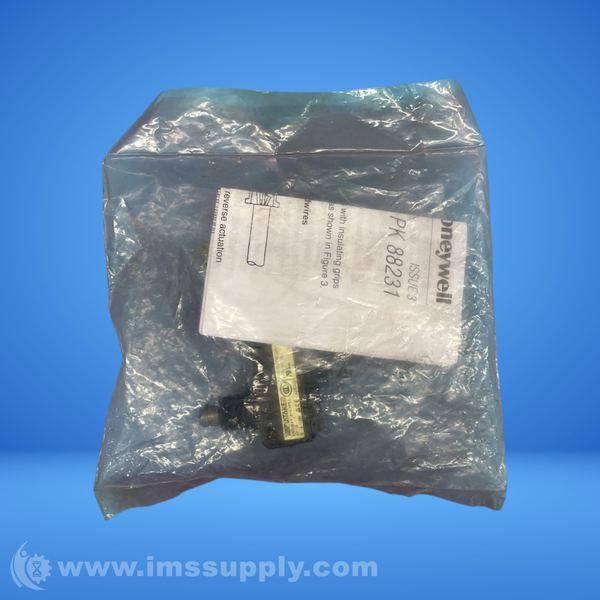

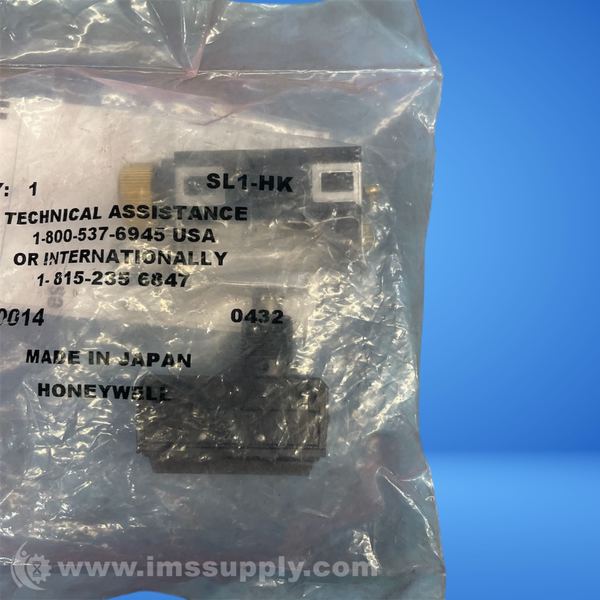

HONEYWELL SL1-HK COMPACT LIMIT SWITCH
Quick Overview
Manufactured By: HONEYWELL
Manufacturer Part Number: SL1-HK
IMS Product Code: 2124695
Packaging: Sold Individually
Description:
Honeywell SL1-HK Compact Limit Switch
Compact limit switch with top push button head, SPDT 1NO-1NC contacts, 0.1A current rating, and IP67 rating.
Specifications
- type: Compact Limit Switch
- head/operator: Top Push Button
- operator configuration: Short
- head action: Spring Return, Standard
- poles/contacts: SPDT 1NO 1NC
- current rating - nominal: 0.1A
- operating force: 2.65 lb (11.8N) OF
- pre-travel - travel to operate: 0.06 in (1.52mm) PT
- differential-travel - travel to reset: 0.004 in (0.1mm) DT
- over-travel/total-travel: 0.118 in (3mm) OT
- operating temperature - min: -10 degrees C
- operating temperature - max: 70 degrees C
- body construction: Die Cast Zinc
- connection type: Cable Gland
- electrical rating - VAC/DC: 0.1A 125Vac (Vdc Rated)
- additional info: NEMA 3, 4, 13, IP67, Gold Contact
- mount: Screw
- housing material: Zinc
- contact materials: Gold
- termination: Cable
- max operating temperature: 70 degrees C
- min operating temperature: -10 degrees C
- voltage - rated DC: 30V
- orientation: Straight
- depth: 18mm
- current rating: 100mA
- voltage - rated AC: 125V
- actuator type: TOP PLUNGER-SHORT
- contact current(DC)-max: 0.1A
- max voltage rating (AC): 125V
- throw configuration: SPDT
- max voltage rating (DC): 30V
- switch type: SNAP ACTING/LIMIT SWITCH
- operating force: 11.8 N
- contact current(AC)-max: 0.1A
- overtravel: 3 mm
- differential travel: 0.1 mm
- pretravel: 1.5 mm
- actuator travel: 4.5 mm
- switch action: MOMENTARY
- pre-travel-max: 1.5 mm
- height: 55.3mm
- length: 56.8mm
- width: 53.8mm
- rohs status: RoHS Compliant
- ratings: IP67
New:
A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable).
Availability: 1 In Stock
