HONEYWELL V4043A1259/U MOTORIZED ZONE VALVE
Quick Overview
Manufactured By: HONEYWELL
Manufacturer Part Number: V4043A1259/U
IMS Product Code: 2148466
Packaging: Sold Individually
Description:

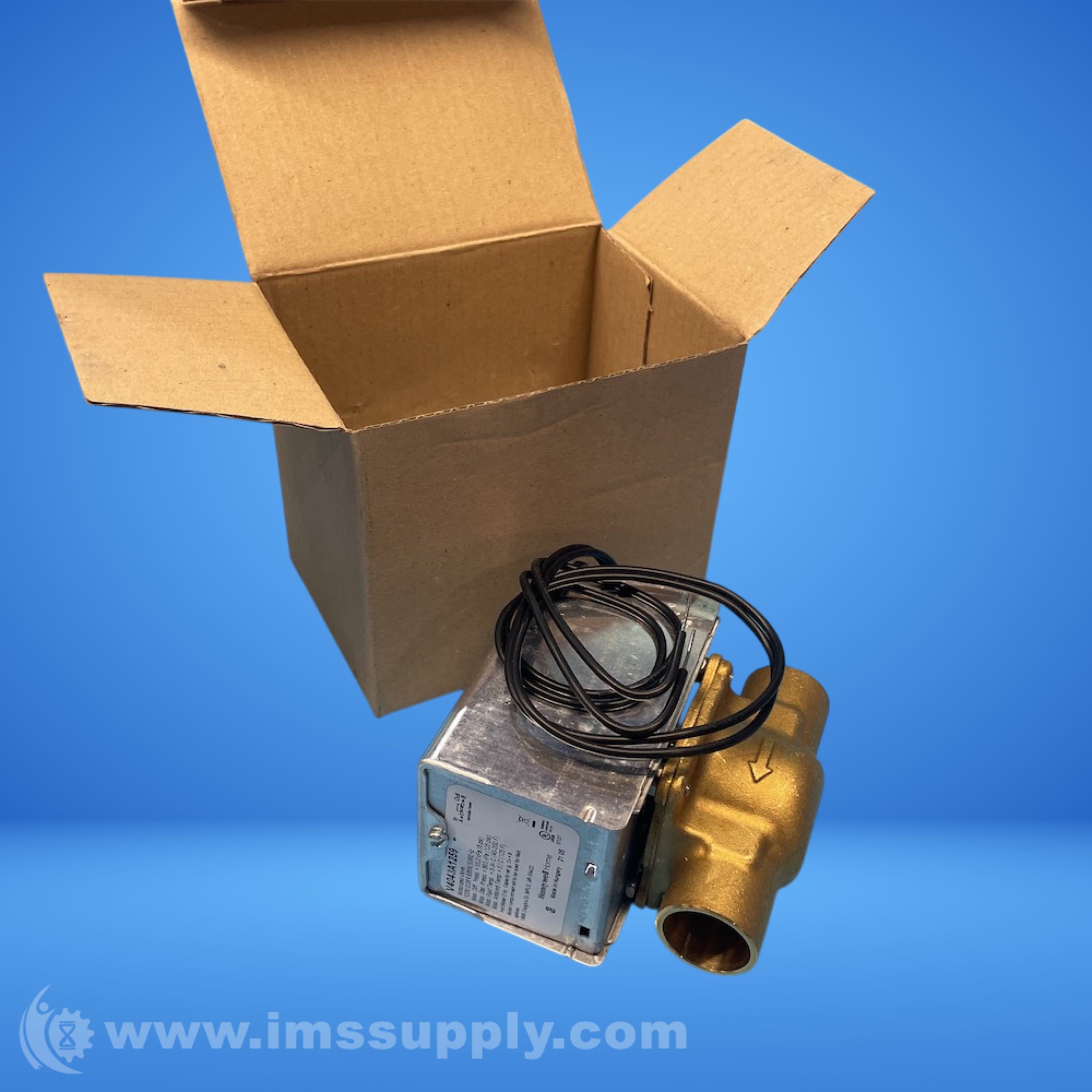

Honeywell V4043A1259/U Motorized Zone Valve
Motorized zone valve with 3/4 in. sweat connection, 2-way, 2-position operation, 8 Cv flow coefficient, brass body, stainless steel stem, and Buna-N trim. Suitable for hot or chilled water service.
Specifications
- voltage: 120 Vac
- frequency: 60 Hz
- power consumption: 9.6 VA
- current draw: 0.08 A
- connection type: Sweat
- pipe size: 3/4 in.
- body material: Brass
- stem material: Stainless Steel
- seat material: Brass
- disc material: Buna-N
- packing material: EPDM
- flow coefficient (Cv): 8
- close-off pressure: 8 psi
- static pressure rating: 125 psi
- fluid temperature range: 5 C to 93 C
- ambient temperature range: up to 52 C
- dimensions: 4 in. high x 3 1/2 in. wide x 2 3/8 in. deep
- weight: 1.9 lbs
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 2 In Stock
Ships today if ordered in the next 1 hours and 55 minutes.
