HUBBELL HBL2423 20A 3-PHASE 250V TWIST-LOCK CONNECTOR
Quick Overview
Manufactured By: HUBBELL
Manufacturer Part Number: HBL2423
IMS Product Code: 823720
Packaging: Sold Individually
Description:

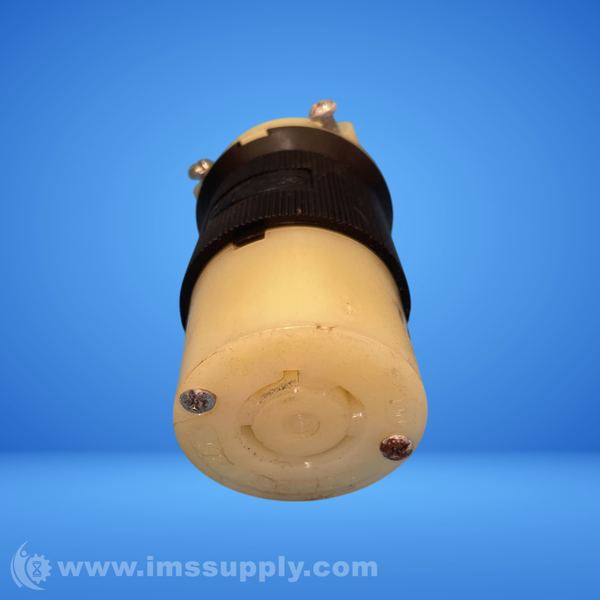

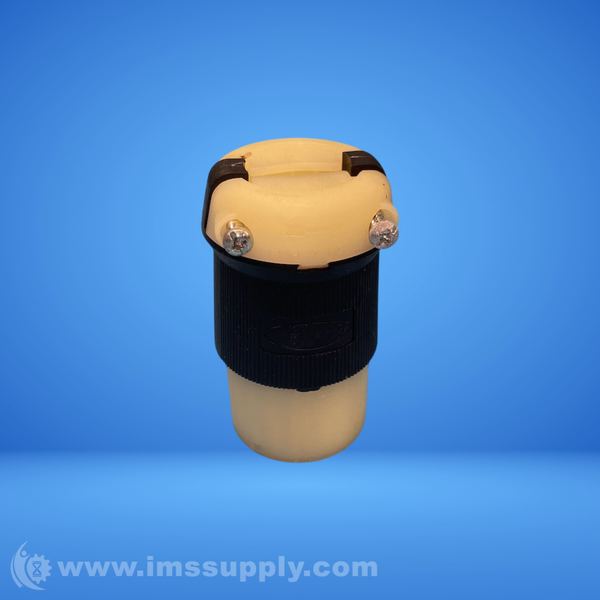

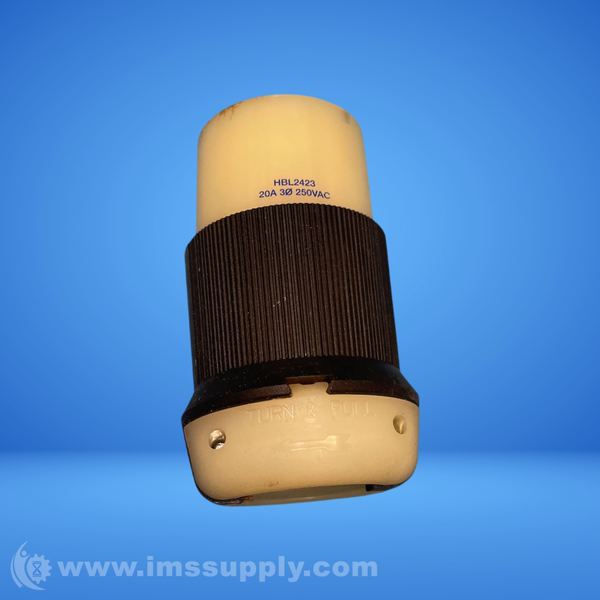

Hubbell HBL2423 20A 3-Phase 250V Twist-Lock Connector
3-Pole 4-Wire Grounding Connector Body with Screw Terminals, NEMA L15-20R Configuration, Made of Nylon Material, Black and White in Color.
Specifications
- Amperage Rating: 20 A
- Cable Range: 0.350 - 1.150 in
- Color: Black, White
- Dielectric Strength: Withstands 2,000V minimum
- Dimensions: 2.33 in x 2.33 in x 3.86 in
- Environmental Conditions: Indoor Dry Unless Protected By Additional Means
- Grounding: Grounded
- Horsepower Rating: 3 hp
- Insulation: Insulated Body
- Material: Nylon
- NEMA Configuration: L15-20R
- Number Of Poles: 3
- Number Of Wires: 4
- Operating Temperature Range: -40 to 75 degrees C
- Phase: Three Phase
- Voltage Rating: 250V AC
- Wire Size: #16 AWG to #8 AWG
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 7 In Stock
Ships today if ordered in the next 3 hours and 13 minutes.
New - Open Box (Special):
Part does not have wire exposed.
Availability: 1 In Stock
Ships today if ordered in the next 3 hours and 13 minutes.
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 1 In Stock
Ships today if ordered in the next 3 hours and 13 minutes.
