HUBBELL HBL2433 20A 3-PHASE LOCKING CONNECTOR BODY
Quick Overview
Manufactured By: HUBBELL
Manufacturer Part Number: HBL2433
IMS Product Code: 823728
Packaging: Sold Individually
Description:

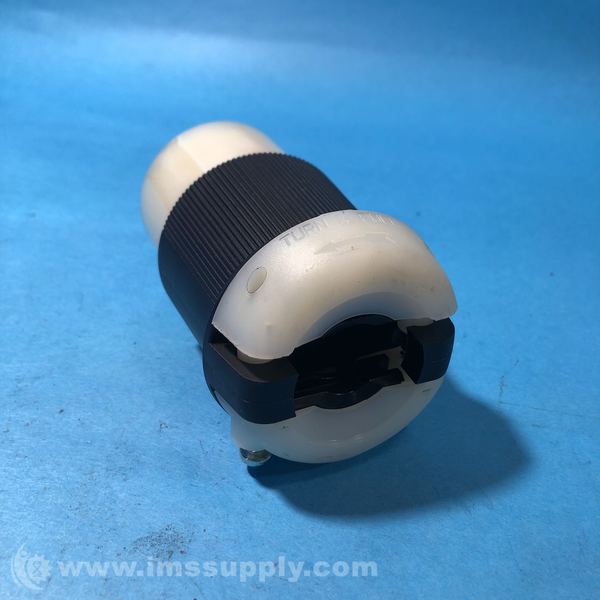

Hubbell HBL2433 20A 3-Phase Locking Connector Body
NEMA L16-20R, 3-Pole 4-Wire Grounding, 480V AC, Nylon Housing, Brass Contacts
Specifications
- Amperage Rating: 20 A
- Application: Industrial
- Assembly Screws: Steel - nickel plated
- Cable Range: 0.350 - 1.150 in
- Certifications: Certified to CSA C22.2 No.42, Fed.Spec. W-C-596, Listed to UL 498
- Color: Black, White
- Conductor Material: Brass
- Connector Type: Female Insulgrip Connector Body
- Contacts: Brass
- Cord Range: 0.350-1.150 (9-29)
- Dielectric Strength: Withstands 2,000V minimum
- Dimensions: 2.33 in x 2.33 in x 3.86 in
- Housing / Cord Clamp: Nylon
- Insulation: Nylon
- Material: Nylon
- Maximum Continuous Operating Temperature: 75 degrees C
- Minimum Continuous Operating Temperature: -40 degrees C
- Nema Rating: L16-20R
- Number Of Poles: 3-Pole
- Number Of Wires: 4-Wire
- Phase: Three Phase
- Pressure Terminal Screws: Cold rolled steel – nickel plated
- Terminal Clamp: Cold rolled steel – nickel plated
- Terminal Retainer: Clear polycarbonate
- Terminal Screws: #10-32 Brass (Phillips / Slotted / Robertson)
- Type: Connector Body
- Voltage Rating: 3 Phase 480 VAC
- Weight: 0.35 lb
- Width: 2.33 in
- Wire Size: #16 AWG to #8 AWG
For Parts or Repair:
A non-functional product sold as-is for parts or repair.
