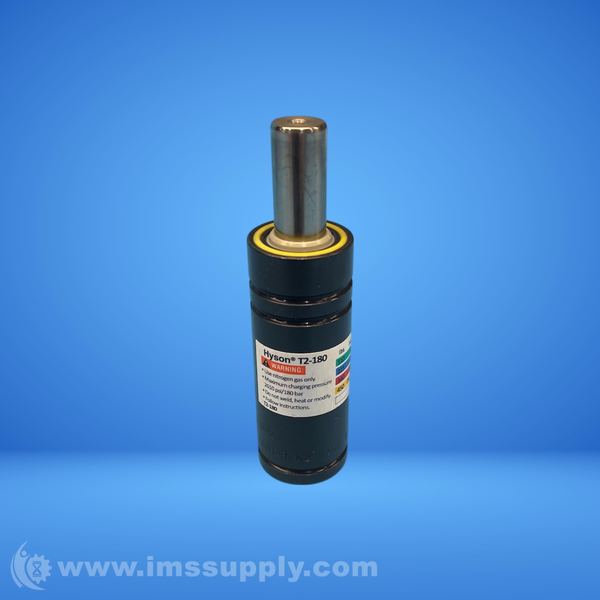

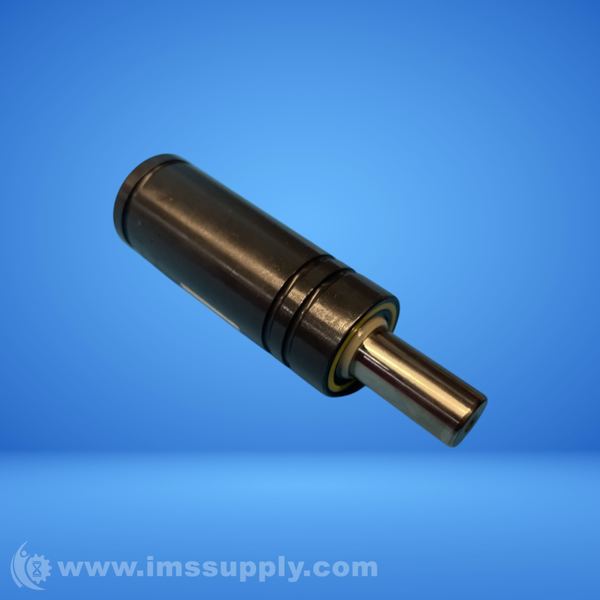

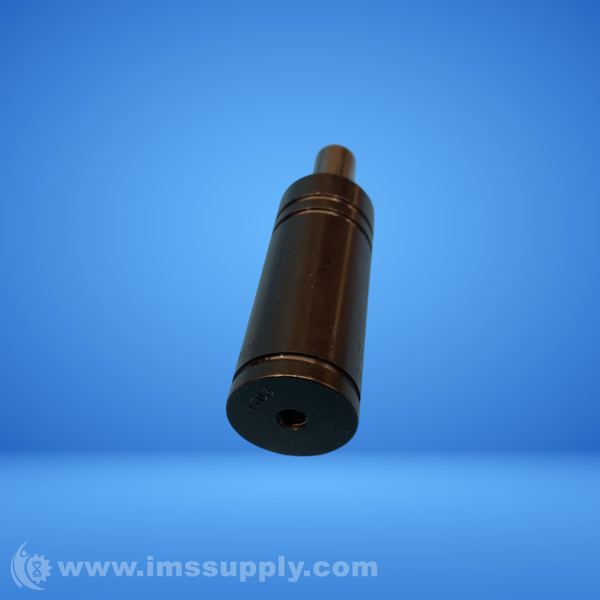

HYSON T2-180X25Y NITROGEN GAS SPRING
Quick Overview
Manufactured By: HYSON
Manufacturer Part Number: T2-180X25Y
IMS Product Code: 2131914
Packaging: Sold Individually
Sold Individually
Pack of 8
Description:
Hyson T2-180X25Y Nitrogen Gas Spring
Nitrogen Gas Spring
Specifications
- Stroke Length (mm): 25
- Y (mm): 92
- L (mm): 67
- Charging Pressure (Psi): 1958.009459355
- Max Charging Pressure (Psi): 2610.67927914
- Min Charging Pressure (PSI): 362.594344325
- Initial Force at max. pressure (lbf): 340
- End Force At Full Stroke (LBF): 689
- Max Piston Rod Velocity (FtMin): 314.96
- Min. Operating Temperature (F): 32
- Max. Operating Temperature (F): 176
- Force Increase By Temperature Percent Per (degrees F): 0.17
- Gas Volume (CuF): 0.001553845
- Weight (lb): 0.858
- Recommended Max Strokes Per Minute: ~80-100
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 4 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
